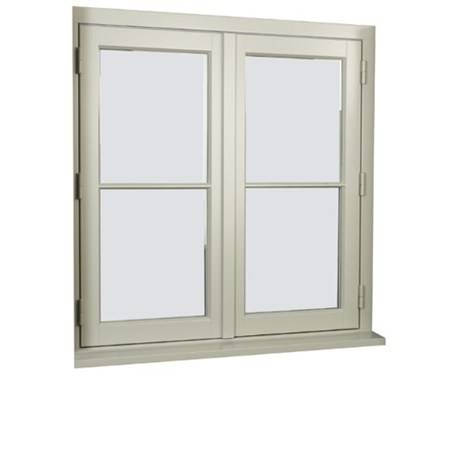

Name: Conservation French Casement Timber Window
Brand: Mumford & Wood Ltd
SKU: kxiPWf6oGJYa4qcQEtJm4G

Verified by manufacturer 4 months ago

Color

Colours from the RAL classic range, colour matching and stains also available.

White

Finish

Painted

Stained

Material

Wood

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_98_96 Wood window unitsPrimary

CAWS

L10/10 Wood windows

L10/210 Wood windows

Dimensions and configurations

Insert requirements or refer to a drawing or schedule.

Frame

Profile

Lambs Tongue.

Ovolo

Square.

Wood species

Engineered clear grade knot free timber, all FSC certified. Chain of Custody can be specified.

Engineered Accoya.

Recommended in coastal areas.

Engineered clear grade knot free Siberian Larch frame and sashes with Hardwood Sapele sill.

As standard.

Engineered Hardwood Red Grandis.

Chain of custody

FSC.

Finish as delivered

Three coats of spray applied water based micro-porous stain.

Three coats of spray applied water based micro-porous paint.

Ventilator

Not required.

Concealed with timber head drip.

Trickle ventilator (4600 mm EA).

Surface mounted.

Glazing or infill

Requirements

24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Planitherm One

Whole window U-value: 1.3 Wm²K / G-value: 0.52.

24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Planitherm Total+

Whole window U-value: 1.4 W/m²K / G-value: 0.73.

24.8 mm Sound Control Double glazed unit comprising 6.8 mm Sound Control Laminated/ 14 mm Argon/ 4 mm Tough Planitherm Total+

Whole window U-value: 1.5 W/m²K / G-value: 0.66. Whole window acoustic performance RW (C;Ctr) = 36db (-2;-5).

14 mm Double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Planitherm One

Whole window U-value: 1.7 W/m²K / 0.52.

14.8 mm Sound Control Double glazed unit comprising 6.8 mm Laminated / 4 mm Krypton / 4 mm Toughened Planitherm One

Whole window U-value: 1.9 Wm²K / G-value: 0.48

24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.2.

24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.0.

24.8 mm Acoustic Double glazed unit comprising 6.8 mm Sound Control Laminate / 14 mm Argon/ 4mm Tough Low E 1.2.

24.8 mm Acoustic Double glazed unit comprising 8.8 mm Sound Control Laminate / 10 mm Krypton/ 6 mm Tough Low E 1.0.

27.6 mm Enhanced Acoustic Double glass unit comprising 10.8 mm Sound Control Laminate / 10 mm Krypton / 6.8 mm Sound Control Laminate Low E 1.0.

14 mm Double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Low E 1.0.

16.8 mm Double glass unit comprising 6.8 mm Laminate / 6mm Krypton / 4 mm Tough Low E 1.0.

Single glass 4 mm Toughened.

Single glass 6 mm Toughened.

Single Glass 6.8 mm Sound Control Laminate.

Single Glass 4.5 mm Goetheglas Restoration Glass.

Hardware

Selected Croft ironmongery available on request.

Black iron bulb end casement handle.

Black iron monkey tail casement handle.

Polished brass casement handle.

Pewter bulb end casement handle.

Pewter monkey tail casement handle.

Polished chrome casement handle.

Satin chrome casement handle.

Operation

Type

Manual.

Colour

White (RAL 9003).

Standard.

Colour from RAL classic range.

Insert requirement.

Colour match.

Insert requirement.

Dual finish.

Insert requirement.

Frame section (width x depth)

68 x 93 mm.

56 x 93 mm.

92 x 93 mm.

Sash

Casement sash section (width x depth).

64 x 57 mm.

Sill section (height x depth)

68 x 93 mm.

90 x 93 mm.

Sill projection

35 mm.

60 mm.

85 mm.

110 mm.

140 mm.

90 x 93 mm sill section required.

Horns

Cill horns not required.

Cill horns as drawing.

Hinges

Side hung lift off butt hinges.

Concealed side swing egress/easy clean friction hinge with 90° opening.

Windowboard groove

Not required.

Required.

Head drip

Not required.

Required.

Internal Glazing Bars and/or Perimeter Bead

18 mm Fine Lambs Tongue.

18 mm Ovolo.

18 mm Square.

22 mm Lambs Tongue.

22 mm Ovolo.

External Glazing Bars

18 mm chamfered putty bar.

22 mm chamfered putty bar.

28 mm chamfered putty bar.

6 mm ‘antiqued’ lead to internal and external faces of the outer pane.

9 mm ‘antiqued’ lead to internal and external faces of the outer pane.

Perimeter spacer bar

Black warm edge perimeter spacer and integral glazing bars within unit cavity.

24 & 24.8 glazing.

White warm edge perimeter spacer and integral glazing bars within unit cavity.

24 & 24.8 glazing.

Black aluminium perimeter spacer.

14 & 14.8 glazing.

White aluminium perimeter spacer.

14 & 14.8 glazing.

Beading

Internal cassette beading.

Child restrictor

Not required.

Concealed child restrictor.

Weather seal (factory applied)

Deventer TPE Thermoplastic Elastomer.

Platform

Compatible

Version

Revit

Revit 2015

IFC

Color Colours from the RAL classic range, colour matching and stains also available.	White
Finish	Painted Stained
Material	Wood
Shape	Rectangle
Width	Bespoke
Height	Bespoke

Dimensions and configurations Insert requirements or refer to a drawing or schedule.	-
Frame	-
Profile	Lambs Tongue. Ovolo Square.
Wood species Engineered clear grade knot free timber, all FSC certified. Chain of Custody can be specified.	Engineered Accoya. Recommended in coastal areas. Engineered clear grade knot free Siberian Larch frame and sashes with Hardwood Sapele sill. As standard. Engineered Hardwood Red Grandis.
Chain of custody	FSC.
Finish as delivered	Three coats of spray applied water based micro-porous stain. Three coats of spray applied water based micro-porous paint.
Ventilator	Not required. Concealed with timber head drip. Trickle ventilator (4600 mm EA). Surface mounted.
Glazing or infill	-
Requirements	24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Planitherm One Whole window U-value: 1.3 Wm²K / G-value: 0.52. 24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Planitherm Total+ Whole window U-value: 1.4 W/m²K / G-value: 0.73. 24.8 mm Sound Control Double glazed unit comprising 6.8 mm Sound Control Laminated/ 14 mm Argon/ 4 mm Tough Planitherm Total+ Whole window U-value: 1.5 W/m²K / G-value: 0.66. Whole window acoustic performance RW (C;Ctr) = 36db (-2;-5). 14 mm Double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Planitherm One Whole window U-value: 1.7 W/m²K / 0.52. 14.8 mm Sound Control Double glazed unit comprising 6.8 mm Laminated / 4 mm Krypton / 4 mm Toughened Planitherm One Whole window U-value: 1.9 Wm²K / G-value: 0.48 24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.2. 24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.0. 24.8 mm Acoustic Double glazed unit comprising 6.8 mm Sound Control Laminate / 14 mm Argon/ 4mm Tough Low E 1.2. 24.8 mm Acoustic Double glazed unit comprising 8.8 mm Sound Control Laminate / 10 mm Krypton/ 6 mm Tough Low E 1.0. 27.6 mm Enhanced Acoustic Double glass unit comprising 10.8 mm Sound Control Laminate / 10 mm Krypton / 6.8 mm Sound Control Laminate Low E 1.0. 14 mm Double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Low E 1.0. 16.8 mm Double glass unit comprising 6.8 mm Laminate / 6mm Krypton / 4 mm Tough Low E 1.0. Single glass 4 mm Toughened. Single glass 6 mm Toughened. Single Glass 6.8 mm Sound Control Laminate. Single Glass 4.5 mm Goetheglas Restoration Glass.
Hardware Selected Croft ironmongery available on request.	Black iron bulb end casement handle. Black iron monkey tail casement handle. Polished brass casement handle. Pewter bulb end casement handle. Pewter monkey tail casement handle. Polished chrome casement handle. Satin chrome casement handle.
Operation	-
Type	Manual.

Colour	White (RAL 9003). Standard. Colour from RAL classic range. Insert requirement. Colour match. Insert requirement. Dual finish. Insert requirement.
Frame section (width x depth)	68 x 93 mm. 56 x 93 mm. 92 x 93 mm.
Sash Casement sash section (width x depth).	64 x 57 mm.
Sill section (height x depth)	68 x 93 mm. 90 x 93 mm.
Sill projection	35 mm. 60 mm. 85 mm. 110 mm. 140 mm. 90 x 93 mm sill section required. Flush sill. Show more
Horns	Cill horns not required. Cill horns as drawing.
Hinges	Side hung lift off butt hinges. Concealed side swing egress/easy clean friction hinge with 90° opening.
Windowboard groove	Not required. Required.
Head drip	Not required. Required.
Internal Glazing Bars and/or Perimeter Bead	18 mm Fine Lambs Tongue. 18 mm Ovolo. 18 mm Square. 22 mm Lambs Tongue. 22 mm Ovolo. 22 mm Square. 28 mm Ovolo. Show more
External Glazing Bars	18 mm chamfered putty bar. 22 mm chamfered putty bar. 28 mm chamfered putty bar. 6 mm ‘antiqued’ lead to internal and external faces of the outer pane. 9 mm ‘antiqued’ lead to internal and external faces of the outer pane. 12 mm ‘antiqued’ lead to internal and external faces of the outer pane. Show more
Perimeter spacer bar	Black warm edge perimeter spacer and integral glazing bars within unit cavity. 24 & 24.8 glazing. White warm edge perimeter spacer and integral glazing bars within unit cavity. 24 & 24.8 glazing. Black aluminium perimeter spacer. 14 & 14.8 glazing. White aluminium perimeter spacer. 14 & 14.8 glazing.
Beading	Internal cassette beading.
Child restrictor	Not required. Concealed child restrictor.
Weather seal (factory applied)	Deventer TPE Thermoplastic Elastomer.

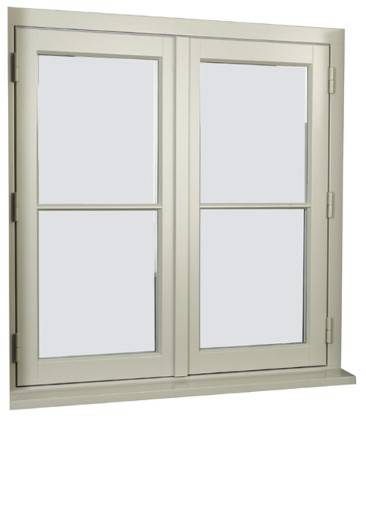

Conservation French Casement Timber Window
