Connect 2 Quadrant Enclosure
Verified by manufacturer over a year ago
K9383 - Connect 2 800 x 800 mm
K9383 - Connect 2 800 x 800 mm

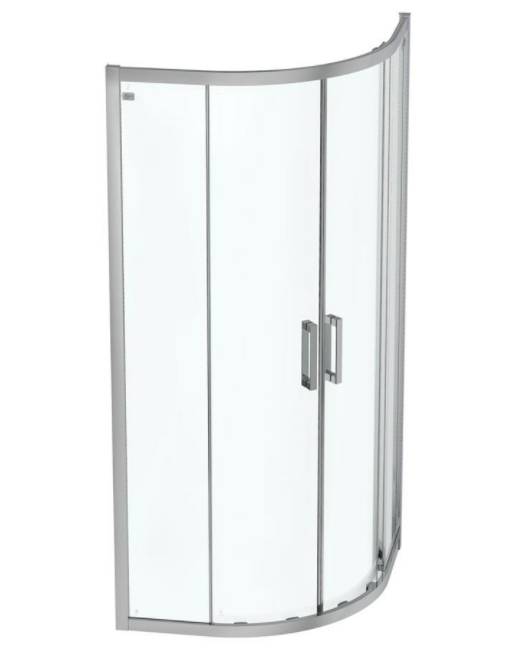

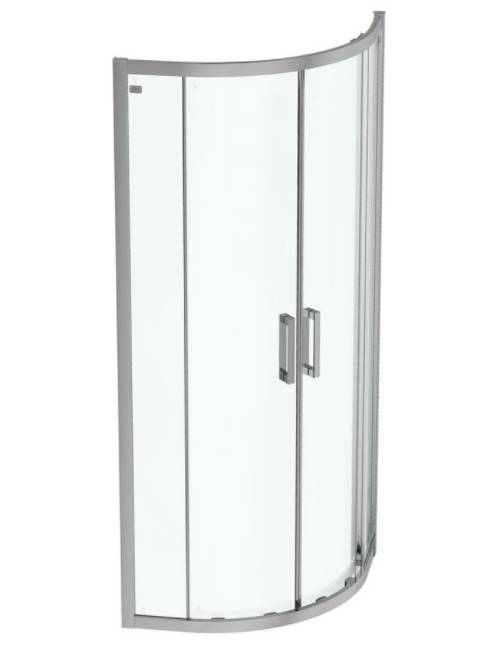

Quadrant Enclosure with idealclean clear glass, bright silver finish.
Application
Suitable for hotels and residential applications.
Description
Connect 2 shower enclosures, doors and side panels are a modern minimal design, 6 mm semi framed range available in a bright silver finish.
Features and benefits:
- 6 mm toughened clear safety glass.
- IdealClean treatment.
- 25 mm adjustment per profile.
- Sleek chrome plated handle.
- Click and clean wheels.
- Unhanded.
- 10 year guarantee.
- Available in 800 mm & 900 mm.
- Concealed fixings.
- Smooth running wheels.
- Power shower proof.
General information
Color | Silver |
Finish | Chrome |
Material | Glass Guidance for specification option: Toughened Safety Glass. |
Shape | Other Guidance for specification option: Quadrant. |
Width | 800 mm 900 mm |
Height | 1955 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower enclosures
Standards | To BS EN 14428. |
Form | Hinged curved doors. |
Materials | |
Frame | |
Finish and colour | Bright silver (EO). |
Glazing | |
Glazing type | 6 mm toughened safety glass. |
Finish and colour | Clear. |
Dimensions | |
Plan size | 800 x 800 mm. |
Height | 1955 mm. |
Integral accessories | Not required.Shower Tray - L5123.Guidance for specification option: Simplicity 800 mm quadrant low profile upstand shower tray including waste with 2 upstands. Shower Tray Riser Kit - L6310.Guidance for specification option: Quadrant shower tray riser kit with panels. |
Weight | 41.00 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
