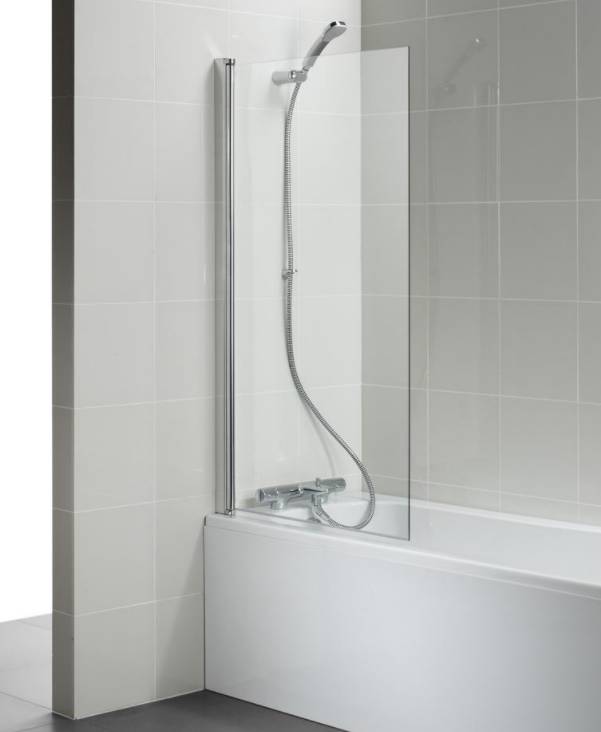

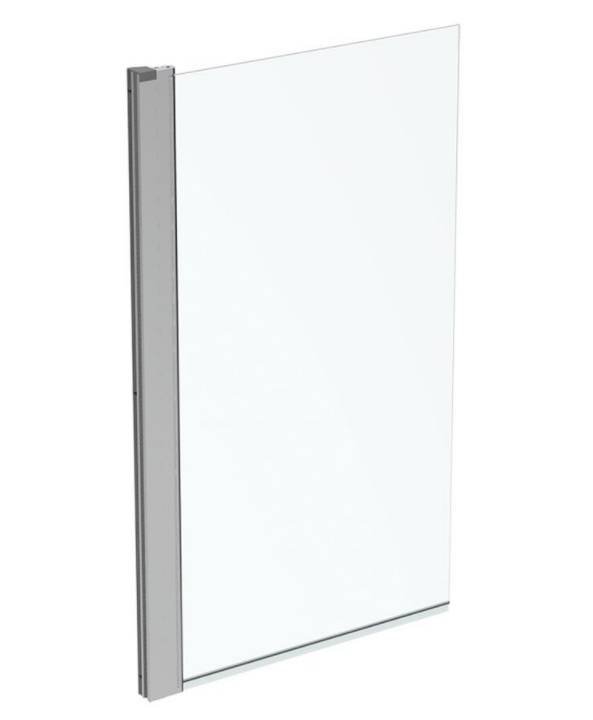

Connect 2 Angle Bath Screen
Verified by manufacturer over a year ago
A shower bath screen with clear glass.
Application
Suitable for commercial and domestic use.
Description
5 mm bath screen in a modern angle design featuring bright silver aluminum and Ideal Standards deflector seal for a water tight finish.
Features and benefits:
- 5 mm clear toughened safety glass.
- Up to 20 mm adjustment.
- Unhanded.
- Concealed fixings easy click cover profile and top cap.
- Rise and fall hinges.
- Inward and outward opening - 180°.
- Ten-year guarantee.
General information
Color | Silver Black |
Material | Glass Guidance for specification option: 6 mm clear toughened safety. Aluminium |
Shape | Rectangle |
Width | 800 mm |
Height | 1400 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths N13/375 Shower units N13/40 Shower units |
Specification data - Shower enclosures
Standards | To BS EN 14428. |
Form | Bath screen. |
Materials | |
Frame | |
Body | Aluminium. |
Finish and colour | Bright silver (EO).Silk black (V3). |
Glazing | |
Glazing type | 5 mm toughened safety glass. |
Finish and colour | Clear. |
Dimensions | |
Plan size | 800—820 mm.Guidance for specification option: With 20 mm adjustment. |
Height | 1400 mm. |
Clear opening size | 731 mm. |
Angle | 180°. Manufacturer guidanceInward and outward opening. |
Weight | 20.00 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
