Connect 2 - Offset Quadrant Enclosure
Verified by manufacturer over a year ago
K9417 - Offset Quadrant Enclosure
K9417 - Offset Quadrant Enclosure

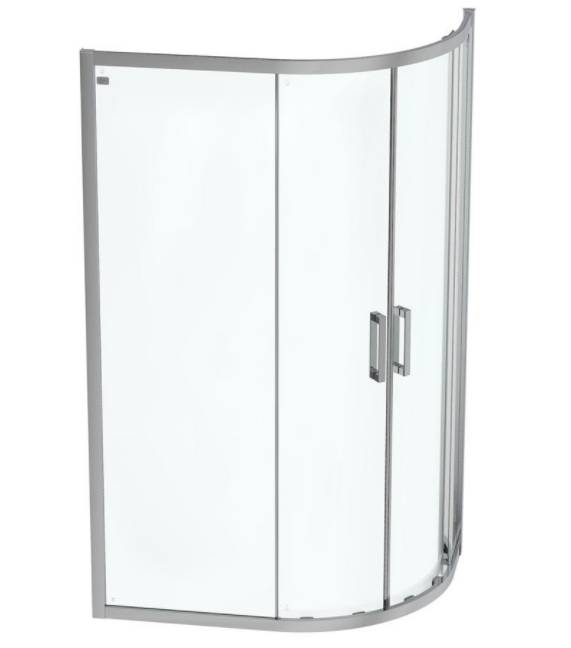

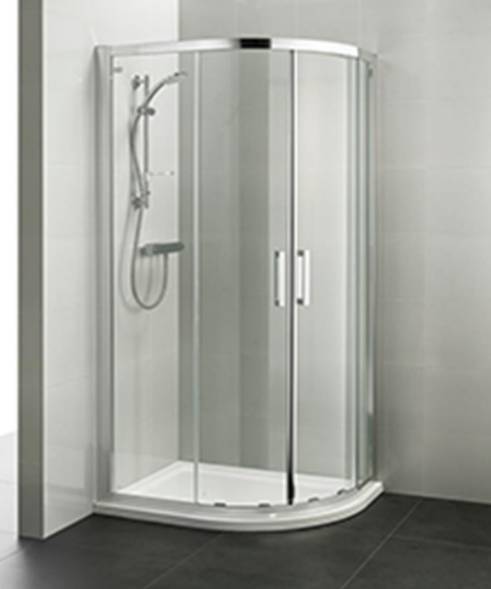

Offset Quadrant Enclosure with idealclean clear glass, bright silver finish.
Application
Suitable for shower areas.
Description
Connect 2 shower enclosures, doors and side panels are a modern minimal design, 6 mm semi-framed range available in a bright silver finish.
Features and benefits:
- 6 mm toughened clear safety glass.
- IdealClean treatment.
- 25 mm adjustment per profile.
- Sleek chrome plated handle.
- Click and clean wheels.
- Unhanded.
- Concealed fixings.
- Smooth running wheels.
- Power shower proof.
General information
Color | Silver |
Finish | Chrome |
Material | Glass Guidance for specification option: Toughened Safety Glass. |
Shape | Other Guidance for specification option: Offset Quadrant. |
Height | 1955 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower enclosures
Standards | To BS EN 14428. |
Form | Hinged curved doors. |
Materials | |
Frame | |
Finish and colour | Bright silver (EO). |
Glazing | |
Glazing type | 6 mm toughened safety glass. |
Finish and colour | Clear. |
Dimensions | |
Plan size | 900 x 760 mm. |
Height | 1955 mm. |
Integral accessories | Chrome plated handles. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
