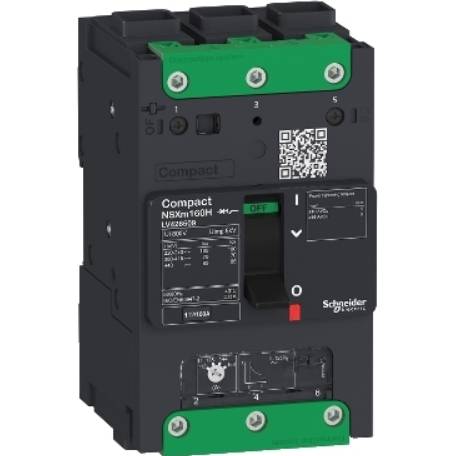

ComPact NSXm - Molded Case Circuit Breakers (MCCBs)
Verified by manufacturer 2 days ago
Schneider Electric's ComPact NSXm range offer comprehensive circuit protection solutions designed for various power distribution needs. Distinct features tailored for different different applications.
Application
Molded case circuit breakers (MCCBs) suitable for the following applications:
- Real estate.
- Commercial buildings.
- Healthcare.
- Industrial buildings.
- Data centres.
- Utilities.
- Transport.
- Infrastructure.
- Defence.
- Temporary.
- Public buildings.
Description
The ComPact NSXm range is a space-saving solution designed for small to medium-sized applications, with ratings up to 160 A. It combines essential protection features with an intuitive installation process. Its ergonomic design and easy wiring make it suitable for panel builders and contractors.
Features and benefits:
- The smallest frame size in the ComPact NSX range, incorporating new features and innovations.
- Gain up to 40% in space when using with integrated earth leakage protection.
- Reduce up to 40% mounting and cabling time with EverLinkTM connectors, built-in DIN rail and spring-type auxiliaries.
- Select, configure and commission with ease, thanks to Schneider Electric online tools: EcoStruxure Customer Lifecycle Software.
- Increase life duration of all items downstream of the electrical network.
- Provide both outstanding selectivity and cascading.
Standards:
- BS EN (IEC) 60947-2, BS EN (IEC) 60947-3, IEC 60664-1, BS EN (IEC) 60947-1, BS EN (IEC) 60947-4, BS EN (IEC) 60947-5.1, BS EN (IEC) 60947-4.1, UL(DuelCert), IEC 60364-8-1 Clause 8.3.1.1, IEC/EN 61000-4-2: electrostatic-discharge immunity tests.
- b IEC/EN 61000-4-3: radiated, radio-frequency, electromagnetic-field immunity tests.
- b IEC/EN 61000-4-4: electrical fast transient/burst immunity tests.
- b IEC/EN 61000-4-5: surge immunity tests.
- b IEC/EN 61000-4-6: immunity tests for conducted disturbances induced by radio-frequency fields.
- b IEC/EN 61000-4-8: power frequency magnetic field immunity test.
- b IEC/EN 61000-4-11: voltage dips, short interruptions and voltage variations immunity tests.
- b CISPR 11: industrial.
- b IEC 60068-2-1: dry cold at -55°C.
- b IEC 60068-2-2: dry heat at +85°C.
- Damp heat (tropicalization).
- b IEC 60068-2-30: damp heat (temperature +55°C).
General information
Color | Black Green |
Warranty description | 18 months |
Uniclass | |
CAWS | V90/590 Equipment |
Specification data - Moulded case circuit breakers
Standards | To BS EN IEC 60947-1 and BS EN 60947-2. |
Third-party certification | To ISO 14025PEP and ISO 50001. |
Rated operational current (Ie) | 16 A. 25 A. 32 A. 40 A. 50 A. 63 A. 80 A. 100 A. 125 A. 160 A. |
Number of poles | One. Two. Three. Four. |
Rated operational voltage (Ue) | 220 V a.c. 240 V a.c. 380 V a.c. 415 V a.c. 440 V a.c. 500 V a.c. 525 V a.c. 660 V a.c. 690 V a.c. |
Rated insulation voltage (Ui) | 500 V a.c. 800 V a.c. |
Rated impulse withstand voltage (Uimp) | 8 kV. |
Rated ultimate short circuit breaking capacity (Icu) | 8 kA. 10 kA. 20 kA. 25 kA. 35 kA. 36 kA. 50 kA. 65 kA. 70 kA. 85 kA. 90 kA. 100 kA. |
Rated service short circuit breaking capacity (Ics) | 8 kA. 10 kA. 20 kA. 25 kA. 35 kA. 36 kA. 50 kA. 65 kA. 70 kA. 85 kA. 90 kA. 100 kA. |
Utilization category | A. |
Method of installation | Fixed. |
Accessories | Not required. Auxiliaries. Terminal shields. Connections. |
