Compact Grade Colors Collection - High Pressure Laminate

Name: Compact Grade Colors Collection - High Pressure Laminate
Brand: Formica Group
SKU: 5oZLtFX63bULNxKxYCxDoA

Verified by manufacturer 7 months ago

Colours - Formica® Laminate (HGP)

Formica Group

Third party certifications:

GreenGuard Gold
Certificate type
EPD
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

Hard wearing, durable and hygienic surfacing material used for multiple applications including interior doors, contract furniture, shopfitting, wall panelling and washroom environments.

Jump to:

+44 (0)191 622 0101 Website

Application

Suitable for both horizontal and vertical general purpose in applications including:

Counters.
Reception desks and furniture.
Interior doors.
Shopfitting.
Wall panelling.

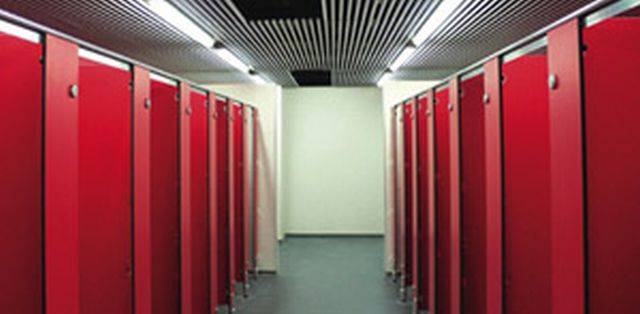

Washroom environments.

Description

Hard wearing, durable and hygienic surfacing high pressure laminate material used for multiple applications including interior doors, contract furniture, shopfitting, wall panelling and washroom environments. Available in 120 plain colours.

Features and benefits:

Hard wearing and durable.
Resistant to: water, chemicals, abrasions, scratches, colour fading and stains.
Ease of cleanliness and maintenance.
Consisting of layers of wood-based fibers impregnated with thermosetting resins and a surface décor on one side (or both sides).

Technical characteristics:

Dry heat resistance To EN 438-2: 16, Gloss finish - ≥ Rating 3, Other finish - ≥ Rating 4.
Wet heat resistance To EN 438-2: 18, Gloss finish - ≥ Rating 3, Other finish - ≥ Rating 4.
Formability To EN 438-2: 31, L (mm) - ≤ 10 x t , T (mm) - ≤ 20 x t (HGP Only).
Blistering resistance To EN 438-33, < 0.8mm - 10s, ≥ 0.8mm - 15s (HGP Only).

General information

Color	Beige Black Blue Brown Green Grey Orange Purple Red White Yellow Gold Show more
Finish	Matt
Material	High pressure laminate (HPL)
Shape	Rectangle
Length	2150 mm 2350 mm 3050 mm 3660 mm
Width	950 mm 1300 mm 1525 mm
Height	0.7 mm 2 mm 2.5 mm 3 mm 4 mm 6 mm 8 mm 10 mm 12 mm 13 mm 16 mm 18 mm 20 mm Show more
Warranty description	One year

Uniclass	Pr_25_71_94_37 High-pressure decorative laminates (HPL or HPDL)Primary Pr_25_71_63_15 Compact or solid grade high-pressure laminate (HPL) boards
CAWS	K13/130 Laminated plastics-veneered panel lining

Product range	Compact Grade

Specification data - High-pressure decorative laminates (HPL or HPDL)

Standard	EN 438.
Reaction to fire	To EN 13501-1. Manufacturer guidance For laminate below 4 mm - The reaction to fire of Formica® Laminate is related to the final composite panel where the laminate is bonded to a substrate. Since the test results also depend on the substrate, the adhesive and the bonding techniques applied, the composite manufacturer is responsible for the correct execution of the test in accordance with the applicable standards and test methods required for the specific application field.
Thickness	0.7 mm. Guidance for specification option: Nominal, single sided.
Finish	Matte 58™.
Colour	- Manufacturer guidance Compact is available in a wide range of Colours, Patterns and Woods from the Formica® Collection. Details available on request.

Wear resistance	To EN 438-2: 10, ≥150 revolutions.
Water resistance	To EN 438-2: 12): Gloss finish - ≥ Rating 3, Other - ≥ Rating 4. Manufacturer guidance Boiling water resistance.
Water vapour resistance	To EN 438-2: 14, Gloss finish - ≥ Rating 3, Other finish - ≥ Rating 4.
Dimensional stability	To EN 438-2: 17, Longitudial - ≤ 0.55%, Transversal - ≤ 1.05%.
Impact resistance	To EN 438-2: 20, ≥ 20N.
Scratch resistance	To EN 438-2: 25, Smooth - ≥ Rating 2, Textured - ≥ Rating 3.
Stain Resistance	To EN 438-2: 26, (Group 1+2) ≥ Rating 4, (Group 3) ≥ Rating 4.
Lightfastness	To EN 438-2: 27, ≥ 4 Contrast.
Density	To EN ISO 1183-1, ≥ 1.35g/cm³.
Grade	HPL/EN 438-3 HGP. Guidance for specification option: Horizontal, General Purpose, Postforming high pressure decorative laminate.
Length	2150 mm. 2350 mm. 3050 mm. 3660 mm.
Width	950 mm. 1300 mm. 1525 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	High pressure laminate (HPL)
Manufacturing plant location	Coast Rd, North Shields, UK
Recyclability	Non-reusable
Expected Life	30 year
