CMS Danskin Acoustics SmartFloor 18 - Interlocking Dry Floor Screed
Verified by manufacturer 17 days ago
High quality, interlocking dry floor screed, using gypsum fibreboard technology.
Application
Suitable for use in various applications (dependent upon live loads and sub-structure) including:
- Residential buildings, including bathrooms and kitchens.
- Offices.
- Schools.
Can be used in conjunction with:
- Underfloor heating.
- Pre-fabricated and mosaic parquet flooring.
- Carpets, polyvinyl chloride (PVC) and linoleum.
- Tiles and natural stone.
Not for use in wetrooms. Installation guidelines must be followed - consult manufacturer for details.
Description

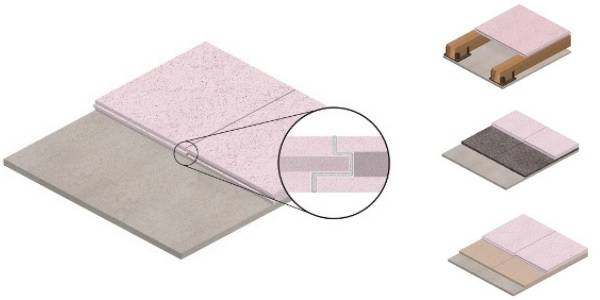

High quality, interlocking dry floor screed, using gypsum fibreboard technology.
Features and benefits:
- Ready for foot traffic sooner than traditional wet floor screeds - eliminates the drying time.
- Lightweight.
- Provides a tough, impact resistant surface.
- Thermally transparent - will minimize heat losses from underfloor heating systems, allowing lower temperature operation and more responsive temperature control.
- The wood-fibre backed variants provide good impact sound reduction and reduce airborne noise.
- Contains up to 60% recycled content.
- Dimensionally stable.
Applications:
Suitable for use in various applications (dependent upon live loads and sub-structure) including:
- Residential buildings, including bathrooms and kitchens.
- Offices.
- Schools.
Can be used in conjunction with:
- Underfloor heating.
- Pre-fabricated and mosaic parquet flooring.
- Carpets, polyvinyl chloride (PVC) and linoleum.
- Tiles and natural stone.
Not for use in wetrooms. Installation guidelines must be followed - consult manufacturer for details.
General information
Color | Pink |
Finish | Smooth |
Material | Gypsum |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 18 mm |
Warranty description | One year |
Uniclass | |
CAWS | K11/275 Acoustic separating floor system K11/295 Floating floor system K11/60 Board |
Specification data - Fibre-reinforced gypsum floorboards
Classification data | |
Thickness | 18 mm. |
Edges | Tongued and grooved. |
Dimensions | 1200 x 600 mm. |
Weight | 14–15 kg (per board); 20–22 kg/m² (per m²). |
Density | 1100–1200 kg/m³. |
Reaction to fire | To EN 13501-1, A1. |
Water vapour diffusion resistance | 17 µ. |
Thermal conductivity | 0.38 W/m·K. Manufacturer guidanceK-Value. |
Hardness | Brinell ≥20 N/mm². Manufacturer guidanceSurface hardness. |
Bond strength | ≥0.6 N/mm². |
Water absorption | To EN 20535, ≤300 g/m². |
Sustainability data
Material | Gypsum |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
Literature

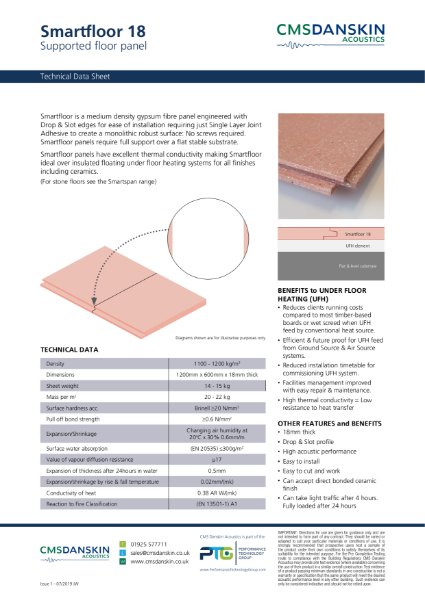

CMS Danskin Acoustics Smartfloor 18 - TDS issue 1 07 2019
CMS Danskin Acoustics SmartPU - TDS issue 1 02 2021
