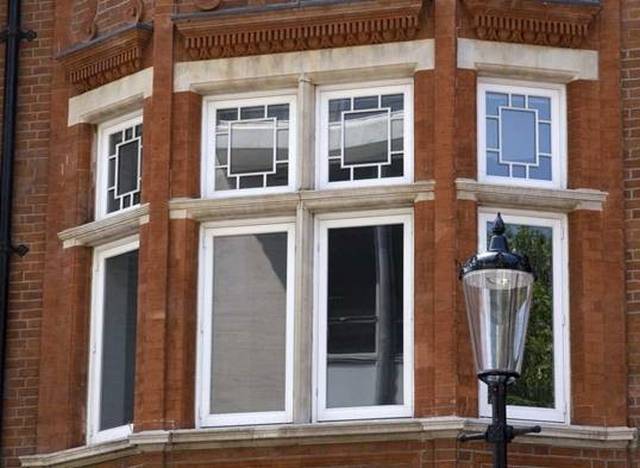

Classic Casement Timber Window -

Name: Classic Casement Timber Window -
Brand: Mumford & Wood Ltd
SKU: f6xBUj8GYfycwsW3ujUbAA

Verified by manufacturer 2 months ago

Timber/ Wooden classic windows with slim glass units in a choice of frame and sash profiles to match other classic products whilst retaining the flush-line traditional appearance of casement to frame.

Jump to:

+44 (0)1621 818155 Website

Application

Suitable for conservation areas and listed buildings.

Description

The flush faced timber Casement Window in the Classic range provides outstanding performance in a range of styles to suit all architectural periods.

As part of the Classic range our made-to-order timber Casement Window offers 14 mm slim double glazed units with true bars and a traditional external putty faced finish. These high performance windows ensure perfect aesthetic, thermal and acoustic requirements.

General information

Color	White Guidance for specification option: As standard. Manufacturer guidance Colours from the RAL classic range and colour matching also available.
Finish	Painted
Material	Wood Timber
Shape	Rectangle
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_59_98_96 Wood window unitsPrimary
CAWS	L10/10 Wood windows L10/210 Wood windows

Product range	Classic Range

Specification data - Wood window units

Dimensions and configurations	- Manufacturer guidance Insert requirements or refer to a drawing or schedule.
Frame	-
Profile	Ovolo. Lambs Tongue. Square.
Wood species	Engineered Redwood frame and sashes with Hardwood Sapele cill. Engineered Hardwood Red Grandis. Accoya.
Chain of custody	FSC.
Finish as delivered	Three coats of spray applied water based micro-porous paint.
Ventilator	Not required. Concealed with timber head drip. Trickle ventilator (4600 mm EA) – Surface mounted.
Glazing or infill	-
Requirements	14 mm Double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Low E 1.0. 14.8 mm Double glass unit comprising 6.8 mm Laminate / 4 mm Krypton / 4 mm Tough Low E 1.0. 14 mm Double glass unit comprising 4 mm Goetheglas Restoration Glass / 6 mm Krypton / 4 mm Tough Low E 1.0.
Hardware	Polished brass casement handle. Polished chrome casement handle. Satin chrome casement handle. Oil Rubbed Bronze casement handle. Antique Brass casement handle. Satin Nickel casement handle. Aged Brass Casement handle. Satin Brass casement handle. Light Antique Brass casement handle. Black iron monkey tail casement handle. Pewter monkey tail casement handle. Black iron bulb end casement handle. Pewter bulb end casement handle. Other. Guidance for specification option: Alternatives available in various finishes from the likes of Croft, consult manufacturer for details.

Colour	White (RAL 9003). Colour from RAL classic range. Colour match. Dual finish.
Frame section (width x depth)	68 x 93 mm. 56 x 93 mm. 92 x 93 mm.
Sash	64 x 57 mm. 57 x 57 mm.
Flying mullion	Not required. Required.
Sill section (height x depth)	68 x 93 mm. 90 x 93 mm.
Sill projection	35 mm. 60 mm. 85 mm. 110 mm. 125 mm. 140 mm. Guidance for specification option: 90 x 93 mm sill required. Flush cill. Show more
Horns	Cill horns not required. Cill horns required.
Hinges	Concealed side swing egress/easy clean friction hinge with 90° opening. Concealed side swing easy clean friction hinge with 60° opening. Concealed side swing easy clean friction hinge with 60° opening with restrictor. Concealed top swing friction hinge. Concealed top swing friction hinge with restrictor. Direct glazed. Fixed sash. Side hung butt hinges. Show more
Windowboard groove	Not required. Required.
Head drip	Not required. Required.
Glazing bars and sash internal perimeter profile	24 mm Lambs Tongue. 24 mm Ovolo.
Glass spacer perimeter bar	White aluminium. Guidance for specification option: 14 mm glass units only. Silver/ black aluminium. Guidance for specification option: 14 or 14.8 mm glass units.
Child restrictor	Not required. Concealed child restrictor.
Weather seal (factory applied)	Deventer TPE Thermoplastic Elastomer.

Sustainability data

Country of product manufacture	United Kingdom
Recyclability	- Manufacturer guidance Refer to manufacturer website for product end of life instructions.

Literature

Site instruction, aftercare manual & warranty
