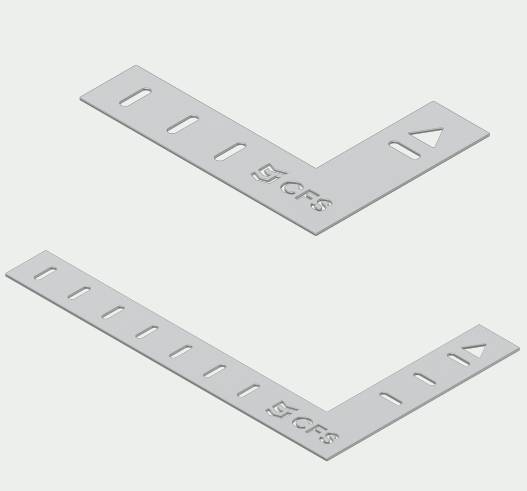

CFS Reveal Support Plate

Name: CFS Reveal Support Plate
Brand: Construction Fixing Systems
SKU: pRKpUWBBZjWYtfCVEeykpn

Verified by manufacturer 8 months ago

Product certifications:

Brickwork reveal plates.

Jump to:

Application

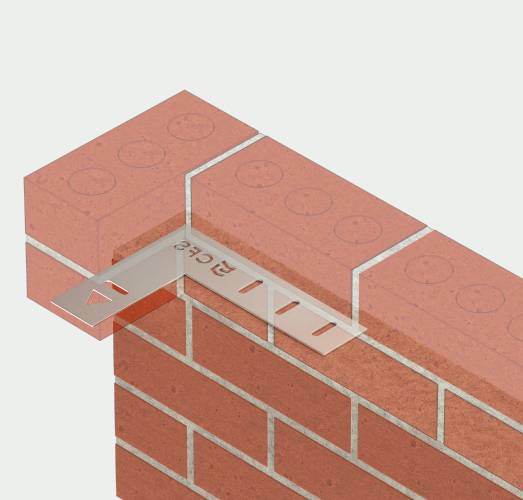

Supporting a full brick or brick and a half return (215 mm and 327.5 mm deep) window reveal during construction.

Brickwork reveal plates offer a seamless solution for creating defined corners and maintaining consistent brickwork alignment around openings.

Features and benefits:

304/304 L austenitic stainless steel (1.4301/1.4307) or 316/316 L (1.4401/1.4404) on request.
A1 fire rated non-combustible material.
Maximum applied load of 0.15 kN as standard.

Color	Silver
Finish	Natural
Material	Stainless steel
Shape	Other
Length	215 mm 327.5 mm Manufacturer guidance Supporting a full brick or brick and a half return (215 mm and 327.5 mm deep) window reveal during construction.
Warranty description	60 year

Uniclass	Pr_20_85_03_50 Masonry angle supportsPrimary
CAWS	F30/290 Proprietary special fixings F30/265 Support systems F30/260 Angle supports

Classification data
Material	Austenitic stainless steel.
Components, arrangement and dimensions	215 mm. Guidance for specification option: Full brick. 327.5 mm. Guidance for specification option: Brick and a half.
Material grade	1.4301/1.4307 (304/304L). Guidance for specification option: As standard. 1.4401/1.4404 (316/316L). Guidance for specification option: On request.

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Stainless steel
Recyclability	100% Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	85 %
Expected Life	120 year
