CFS AMS Inverted Masonry Support

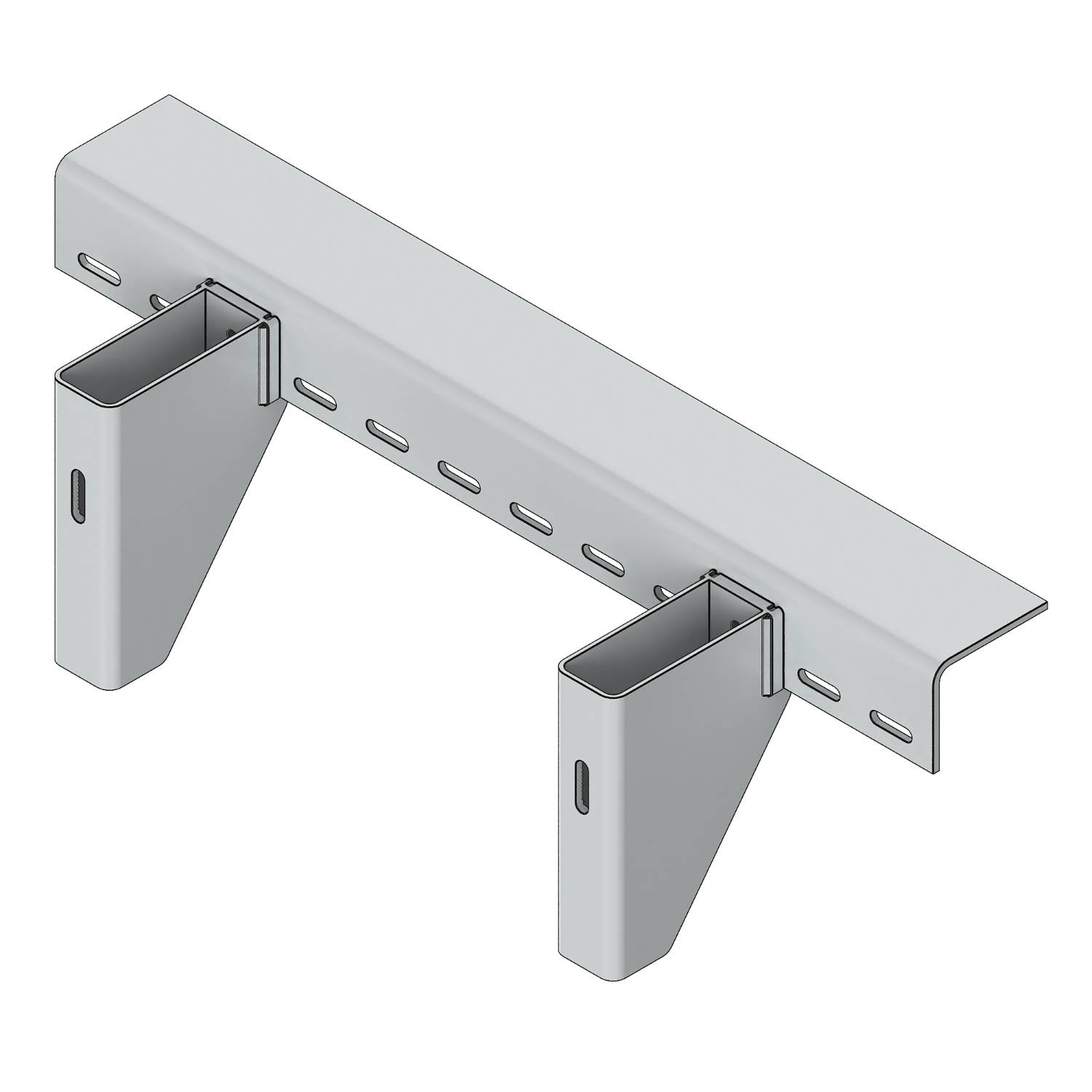

CFS adjustable inverted masonry support is designed to withstand heavy loads with maximum on-site tolerance. For inverted support the BSA sits above the point of fixing and is suitable for applications where support is required above the slab.

Features and benefits:

• Easy to assemble and adjust to suit site tolerances.
• A slotted angle provides great flexibility for support leg positioning.
• Improved slab edge tolerance with up to 20 mm of shimming in two locations.
• Suitable for cavity widths of 50–400mm.

Adjustability:

• AMS Inverted support is designed for each project. It is suitable for small and large raises above the slab depending design requirements.
• For vertical adjustment, the tooth patch and washer is designed to allow +/- 15 mm tolerance.
• For horizontal adjustment, the horizontal slot in the support angle is designed with +/- 9 mm tolerance with slots spaced at 50 mm center to center.
• +20mm / -5mm in out tolerance. Up to 10mm shims on bracket, 10mm on the angle, -5mm sliding bricks back onto angle.

Specification:

Masonry support system/ type/ fixing/ cavity/ load/ projection.

Example:

• AMSI/S/P/125/6.6 - standard inverted AMS masonry support, post fix concrete, 125 mm cavity, 6.6 kN load.
