Cetus Classic - Panel

Cetus Classic - Panel

Troax (UK) Ltd

Light Duty Modular steel mesh and all steel panels to build secure storage cages and enclosures, ideal where multiple small units are required, with the addition of our range of hinged doors.

Jump to:
+44 (0)1793 542000 www.troax.com/gb
Description

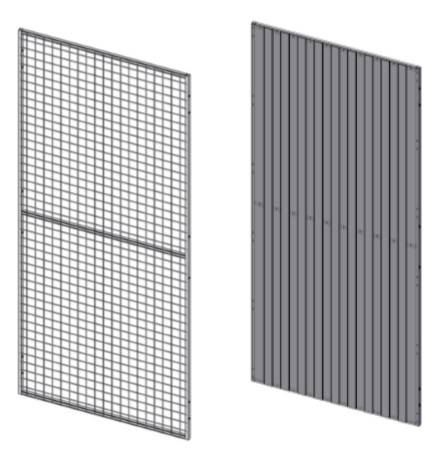

Tubular frame UR 350 steel mesh and UR SP all steel panel system - is a light-duty, system that is suitable for creating storage cages and enclosures within well protected environments where a low level of security is required. The system is also ideal for creating inner partitioning walls within a secure storage application when used in conjunction with the Troax UX 450, UR SP and UX 550 panels. The UR 350 panels has a 50 x 50mm mesh aperture making it difficult for a hand to reach through the panel the eight different panel widths provide versatility to configure cages to suit most applications. Available in powder coated and hot-dip galvanised finishes. Alternatively greater privacy and security can be achieved by using the UR SP solid steel panel version which is available in six different widths but only in a painted finish. The system is largely boltless being secured from the inside using plates and self drilling screws.

General information

Features

A versatile modular system suitable for creating multiple storage cages in open or confined spaces

Material

Carbon steel

Shape

Rectangular

WarrantyDescription

Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required

Uniclass 2015

Pr_25_71_57_60 Partition panelsPrimary
Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 3 2.0
Download now from NBS National BIM Library
Similar products from Troax (UK) Ltd
