Description

Heavy-duty, fully-framed cubicle system

General information
Specification data - Fully-framed panel cubicle systems
Product Reference

Centurion HPL

High pressure laminate covered chipboard panels.

Centurion HPL full height

High pressure laminate covered chipboard panels.

Centurion MFC

Melamine faced chipboard panels.

Centurion MFC full height

Melamine faced chipboard panels.

Centurion SGL

Solid grade laminate panels.

Centurion SGL full height

Solid grade laminate panels.

Colour/ Finish -
Panels

Consult Venesta Washroom Systems for details of colour range.

Doors

Consult Venesta Washroom Systems for details of colour range.

Frame and fittings

Dark grey powder coating

Liight grey powder coating

Accessories

Document M compliant grab rails and door pulls

Venesta coat hook

Venesta toilet roll holder

Standard product features

General:

  • Headrail: High strength, extruded aluminium.
  • Pilasters: Slim section, rounded pilasters formed in high strength extruded aluminium.
  • Wall fixings: Continuous channel

Ironmongery:

  • Hinges: Aluminium, anti-tamper safety hinge.

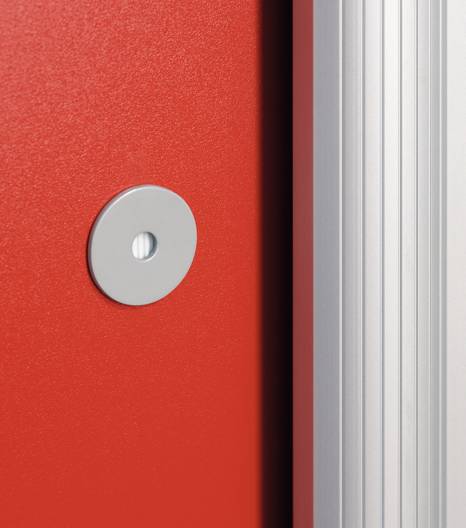

  • Bolt: Aluminium, lever-operated indicator bolt with circular face plate and emergency release.

Product Options

Product reference:

– Centurion HPL

  • Board/ panel: 660 kg/m³ furniture grade, moisture resistant chipboard, faced each side with high pressure laminate (HPL).
  • Thickness: Partitions, 18 mm.
  • Edge treatment: 1 mm thick matching PVC.
  • Height: 2155 mm from FFL to top of headrail.
  • Depth (maximum): 2000 mm from face of back wall or rear ducting.

– Centurion SGL Full height:

  • Board/ panel: 660 kg/m³ furniture grade, moisture resistant chipboard, faced each side with high pressure laminate (HPL).
  • Thickness: Partitions, 18 mm.
  • Edge treatment: 1 mm thick matching PVC.
  • Height (maximum): To 1500 mm deep: 3000 mm; 1501–2000 mm deep, 2570 mm.
  • back

– Centurion MFC:

  • Board/ panel: Melamine-faced, 660 kg/m³, high performance, moisture resistant chipboard.
  • Thickness: Partitions, 18 mm.
  • Edge treatment: 1 mm thick matching PVC.
  • Height: 2115 mm.
  • Depth (maximum): 2000 mm from face of back wall or rear ducting.

– Centurion MFC full height:

  • Board/ panel: Melamine-faced, 660 kg/m³, high performance, moisture resistant chipboard.
  • Thickness: Partitions, 18 mm.
  • Edge treatment: 1 mm thick matching PVC.
  • Height (maximum): 2770 mm.
  • Depth (maximum): 2000 mm from face of back wall or rear ducting.

– Centurion SGL:

  • Board/ panel: High density, solid grade laminate (SGL) with decorative face each side.
  • Thickness: 13 mm.
  • Edge treatment: All edges radiused and polished (black).
  • Height: 2115 mm.
  • Depth (maximum): 2000 mm from face of back wall or rear ducting.

– Centurion SGL:

  • Board/ panel: High density, solid grade laminate (SGL) with decorative face each side.
  • Thickness: 13 mm.
  • Edge treatment: All edges radiused and polished (black).
  • Height (maximum): 2550 mm.
  • Depth (maximum): 2000 mm from face of back wall or rear ducting.

Clearance:

  • Floor clearance, standard height: 100 mm.
  • Floor clearance, full height: At panels, 0 mm; at door, 10 mm.
  • Ceiling clearance, full height: 45 mm.
