Central Bath Shower Mixer Tap

Name: Central Bath Shower Mixer Tap
Brand: Aqualisa Products Ltd
SKU: meFjNG3AXToRXnBtw5oMy5

Verified by manufacturer 5 months ago

Aqualisa Products Ltd

Product certifications:

WRAS
Certificate type

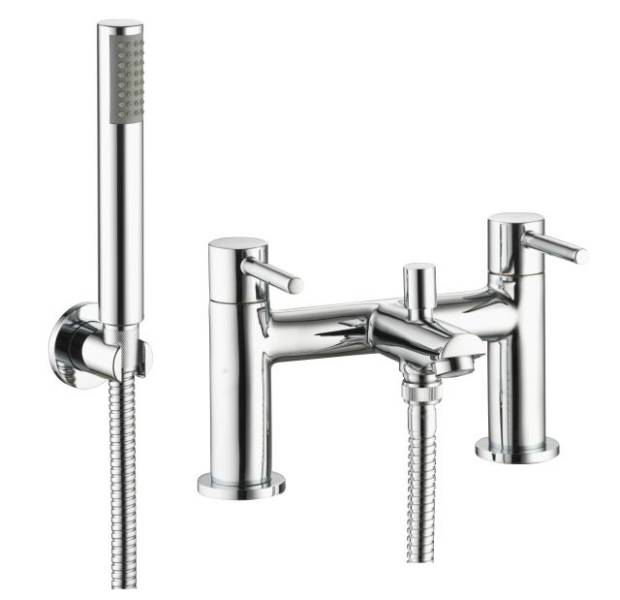

Aqualisa Central chrome bath shower mixer tap.

Jump to:

BOS

+44 (0)1959 560000 Website

Application

Mixer tap bathroom applications.

Description

The Central Bath Shower Mixer Tap offers a high-performance bath mounted tap option, offering the flexibility and convenience of a bath filler and handheld shower attachment. Dual lever operation allows you to find your perfect temperature easily, and the simple to use diverter allows you to seamlessly switch between tap flow and shower head. Supplied with an 80 mm shower head and accompanying holder, Central Bath Shower Mixer Tap comes complete with a 1.25 m stainless steel shower hose. Maintain your shower head with ease, thanks to the soft rub shower nozzles which helps to prevent limescale build-up. Available for low- and high-pressure water systems, Aqualisa Central taps feature a solid brass body with durable zinc handles offering a contemporary look within the bathroom.

Features and benefits:

Soft rub shower head nozzles for easy cleaning.
Supplied with 80 mm one function round shower handset.
Rounded design.
1.25 m Chrome plated stainless steel steel hose.

Water system compatibility:

Gravity.
Boosted gravity.
Combi.
Balanced high pressure water systems.

General information

Color	Silver
Finish	Chrome Gloss
Material	Brass Zinc Plastic Stainless steel
Shape	Oval
Length	142.5 mm
Width	230 mm
Height	123 mm
Warranty description	Five year Guidance for specification option: Valve. Registration required. Two year Guidance for specification option: Kit guarantee.

Uniclass	Pr_40_20_87_07 Bath mixer taps with shower hose and hand spraysPrimary Pr_40_20_87_08 Bath mixer taps Pr_40_20_87_09 Bath taps Pr_40_20_87_08 Bath mixer taps
CAWS	N13/35 Baths N13/355 Baths

SKU Code	CT.BSMT.CH

Product range	Taps

Specification data - Bath mixer taps with shower hose and hand sprays

Approvals	Water Regulations Advisory Scheme (WRAS)-approved.
Form	Bath mixer tap with shower hose and handspray.
Materials	-
Body	Brass, zinc, chrome plated, plastic.
Finish and colour	Chrome-plated.
Flow rate (maximum)	At 5 bar: 55.74 L/m (full hot), 55.92 L/m (full cold), 78.85 L/m (mixed), 27.40 L/min (shower).
Water supply temperature (maximum)	5–65°C.

Shower head	202 x 80 x 57 mm.
Handle type	Dual levers for hot and cold.
Pressure	0.2–5 bar (static).
HoseConnectionSize	1/2" BSP.
InletConnectionSize	2 x 3/4" BSP male.
OutletConnectionSize	1/2" BSP.
InletPatternType	Hot (left), cold (right). Guidance for specification option: as viewed from the front.
Tap holes	Two holes.
MountingType	Deck mounted with wall mounted handset holder.
Weight	2.0955 kg. Guidance for specification option: Total package weight: 0.356 kg. Complete packaged weight: 2.451 kg.
Mixer tap	230 x 142.5 x 123 mm.
Hose	1.25 m chrome plated stainless steel hose.

Sustainability data

Contains Red List materials	No
Country of material origin	China
Country of product manufacture	China
Recycled content As defined in clause 7.8 of BS EN ISO 14021	Guidance for specification option: Packaging recycled content: Pre-consumer: 3%. Post-consumer: 108%.
