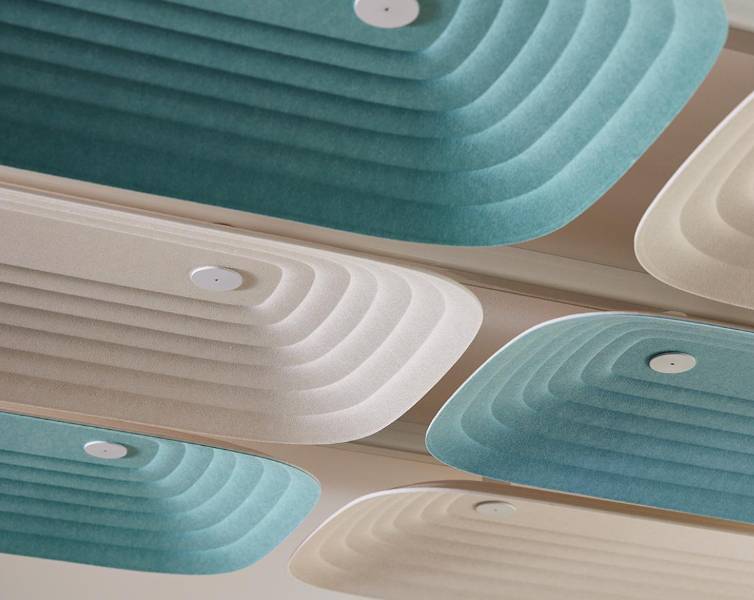

Ceilings Fuji - 3D Formed Acoustic Ceiling Tiles
Verified by manufacturer 2 days ago
Fuji Juni
Fuji Juni
3D formed PET acoustic ceiling tiles made from recycled plastic, designed for sound absorption and available in various shapes and sizes.
Application
Used for acoustic ceiling solutions in offices, meeting rooms, atriums, commercial spaces, conference tables, breakout spaces, hospitality and suspended workstation hoods.
Description
Fuji is a range of 3D formed acoustic ceiling tiles made from 100% PET, with 64% post-consumer recycled content.
Features and benefits:
- Available in multiple shapes including square and rectangular.
- Designed for sound absorption and acoustic comfort.
- Can be directly fixed or suspended using dedicated hardware and barrel kits.
- Barrel kits available in three colours: black/black, white/white, white/blue and black/gold.
- Quick and easy to install.
- Available in single or dual colour combinations from an extensive palette.
- Made sustainably with low VOC emissions and Red List Free certification.
General information
Color | Black Blue White Gold |
Material | Polyester fibre (PET) |
Shape | Rectangle Square |
Length | 560 mm 840 mm 1740 mm |
Width | 560 mm 840 mm 1160 mm |
Height | 90 mm 132 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K45/39 Infill units K45/370 Infill units K40/265 Infill units |
Specification data - Sound attenuator infill units
Classification data | |
Standard | To AS ISO 11654, AS ISO 354 (R2016) and ASTM C423-17. |
Form | Baffle. |
Rigidity | Rigid. |
Application | Ceiling mounting. |
Material | Recycled PET. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Sound absorption average: 0.76 (with perimeter); 0.72 (without perimeter). Weighted sound absorption coefficient (αw): 0.80 (with perimeter); 0.75 (without perimeter). |
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class B-s1, d0. |
VOC emissions | To ASTM D5116, <0.046 mg/m²/hr (7 days). Guidance for specification option: ASTM D5116 - 2017:
CDPH Standard Method v1.2:
|
Dimensions | |
Size (length x width) | 560 x 1160 mm. |
Thickness (overall) | 90 mm. |
Profile | Geometric profile. |
Edges | Rounded. |
Surface pattern | Solid. |
Finish | Material. |
Colour | Black/black. White/white. White/blue. Black/gold. |
Colour fastness | To ISO 105 B02, 6. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Australia |
Material | Polyester fibre (PET) |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 64 % |
