EchoPanel® 12 mm - PET Acoustic Panel
Verified by manufacturer 2 days ago
EPD
Certificate type
PET acoustic panels made from 80% recycled plastic for walls, ceilings, workstations and partitions with fire and sustainability certifications.
Application
PET panel used for walls, ceilings, workstations, partitions, and ceilings to provide improved acoustic performance.
Description
EchoPanel® 12 mm is a panel product composed of 100% PET with 80% post-consumer recycled content.
Features and benefits:

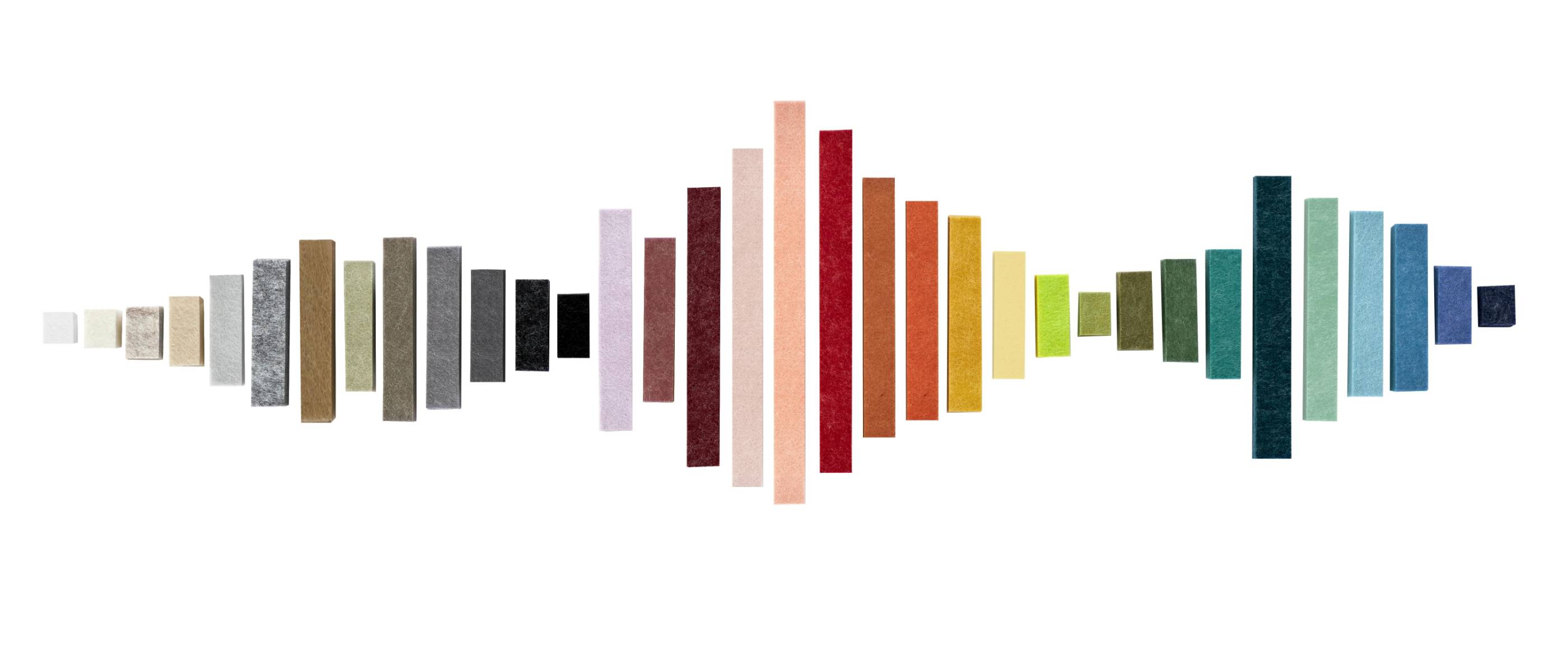

- Available in 37 colours.
- Fire tested to AS 1530.3, BS EN 13501-1 (Classification B-s1, d0), ISO 9705 Group 1, BS EN 45545-2 + A1 Annex C, ASTM E84 Unadhered Class 1 or A, and GB 8624 B1.
- Acoustic performance tested to AS ISO 354: 2006, AS ISO 11654: 2002, and ASTM C423-17 with noise reduction coefficients ranging from 0.45 to 0.75 depending on installation.
- Colour fastness to light rated 6–7 according to ISO 105 B02.
- Flexural properties tested to ISO 1209-1: 2007 with ratings of 37.3 N and 39.1 N in two directions.
- VOC emissions are low with TVOC and formaldehyde emissions rates meeting ASTM D5116-2017 and CDPH Standard Method v1.2 - 2017 requirements.
General information
Color | Beige Black Blue Brown Cream |
Material | Polyester fibre (PET) |
Shape | Rectangle |
Length | 2800 mm |
Width | 1200 mm |
Height | 12 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K45/370 Infill units K45/39 Infill units K40/265 Infill units K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Specification data - Sound attenuator infill units
Classification data | |
Standard | To AS ISO 354 (R2016), AS ISO 11654 and ASTM C423-17. |
Form | Panel. |
Rigidity | Rigid. |
Application | Wall mounting. Ceiling mounting. |
Material | Recycled PET. |
Material density | 2400 g/m². |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class D to BS EN ISO 11654. Guidance for specification option:
Class C to BS EN ISO 11654. Guidance for specification option:
|
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class B-s1, d0. |
VOC emissions | To ASTM D5116, 0.033 mg/m²/hr (24 hrs). Guidance for specification option: ASTM D5116 - 2017:
CDPH Standard Method v1.2 – 2017 (CA 01350):
|
Dimensions | |
Size (length x width) | 2800 x 1200 mm. Manufacturer guidance
|
Thickness (overall) | 12 mm. Manufacturer guidance+/- 7%. |
Profile | Geometric profile. |
Edges | Square. |
Surface pattern | Solid. |
Finish | Material. |
Colour | Manufacturer guidance37 colours available consult manufacturer and insert requirements. |
Colour fastness | To ISO 105 B02, 6–7. |
Flexural strength | To ISO 1209-1, 37.3 N (direction 1); 39.1 N (direction 2). Manufacturer guidanceAt 20 mm deflection. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Australia |
Material | Polyester fibre (PET) |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 5.41 (kg CO₂ eq/kg) Declared unit : 5.41 | |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
Expected Life | 30 year |
Product certifications
Product certifications
EPD
EPD 12mm
