Cedral Thrutone Textured - Fibre cement roof slate

Verified by manufacturer 4 months ago

Cedral

Fibre cement roofing slates with square cut edges and a natural, textured finish.

Jump to:
+44 (0)1283 501 555 Website

Application

For all types of new build and refurbishment projects.

  • Low wastage.
  • Ease of installation.

Description

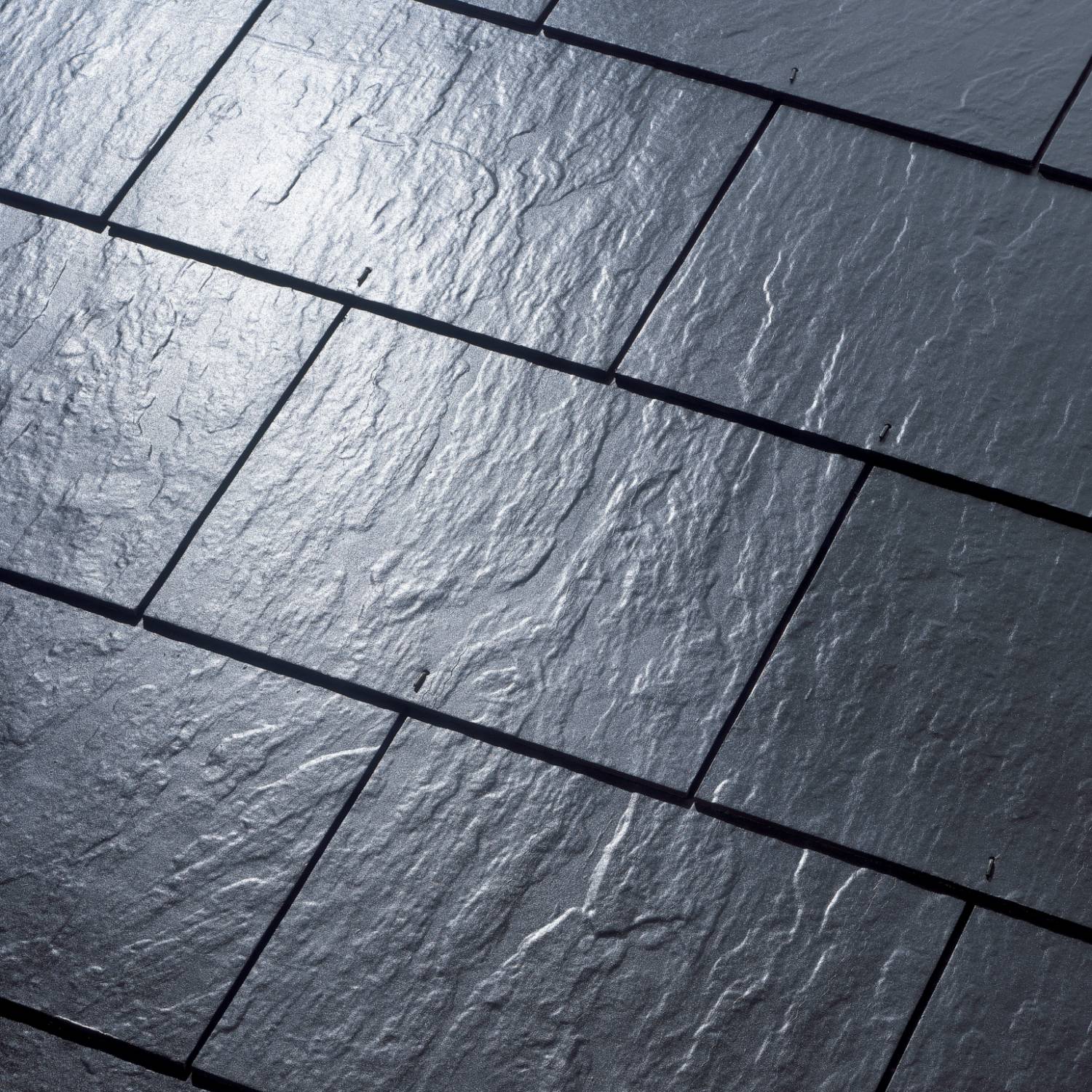

Cedral Thrutone Textured fibre cement slates have an attractive textured surface and square edges, which enhances the overall aesthetic quality of the roof. They can be used on a variety of applications, providing the flexibility to create inspirational roofs and facades.


With more cement and fibres than any other, Cedral slates are the strongest slates in the market, tough enough to withstand the most volatile weather conditions.


Features and benefits:

  • A+ Green guide rating.
  • Can achieve a BES 6001 'Very Good' rating.
  • Low maintenance.
  • Fire performance classification A2-s1, d0 to EN 13501-1:2018.
  • Low carbon footprint of 16 CO2e/m².
  • Compliance with standards BS EN 492 and BS 5534.
  • ISO 9001 and ISO 14001 certified.

General information

Color

Manufacturer guidance

Available in six colours:

Blue-Black

Heather

Stone Green

Terracotta

Russet

Turf Brown


Finish

Textured

Guidance for specification option:

Textured surface and square cut edges.

Material

Fibre cement

Shape

Rectangle

Square

Length

600 mm

Width

300 mm

600 mm

Height

4 mm

Guidance for specification option:

Slate thickness.

Warranty description

Ten year

Guidance for specification option:

To qualify Thrutone slates must be installed to Cedral specifications and pass a site check

Uniclass

Pr_25_93_72_30 Fibre-cement slatesPrimary

CAWS

H61/120 Vertical slating

H62/3 Roof slating

H61/105 Roof slating

Specification data - Fibre-cement slates

Standard

To BS EN 492.

Mechanical resistance

≥45 Nm/m.

Guidance for specification option:

For 350–600 mm height.

See DoP for further information.

Fire performance

-

External fire performance

Broof.

Guidance for specification option:

See DoP for further information.

Reaction to fire

To EN 13501-1:2018, A2-s1,d0.

Impermeability

No water drops.

Guidance for specification option:

See DoP for further information.

Dimensional tolerances

Length/ width: ±3 mm.
Thickness: +25% to –10% of nominal value/

Guidance for specification option:

See DoP for further information.

Durability requirements

-

Warm water

RL ≥0.75.

Guidance for specification option:

See DoP for further information.

Soak-dry

RL ≥0.75.

Guidance for specification option:

See DoP for further information.

Freeze-thaw

RL ≥0.75.

Guidance for specification option:

See DoP for further information.

Heat-rain

Pass.

Guidance for specification option:

See DoP for further information.

Shape

Rectangular.

Colour

Blue-Black.

Heather.

Russet.

Stone Green.

Terracotta.

Turf Brown.

Manufacturer guidance

Available in a choice of six colours.

Size

600 x 300 x 4 mm.

600 x 600 x 4 mm.

Sustainability data

Country of product manufacture

Ireland

Guidance for specification option:

Or Germany.

Recyclability

Guidance for specification option:

Recyclable.
