Cedral Thrutone Smooth - Fibre Cement Roof Slates

Verified by manufacturer 4 months ago

Cedral

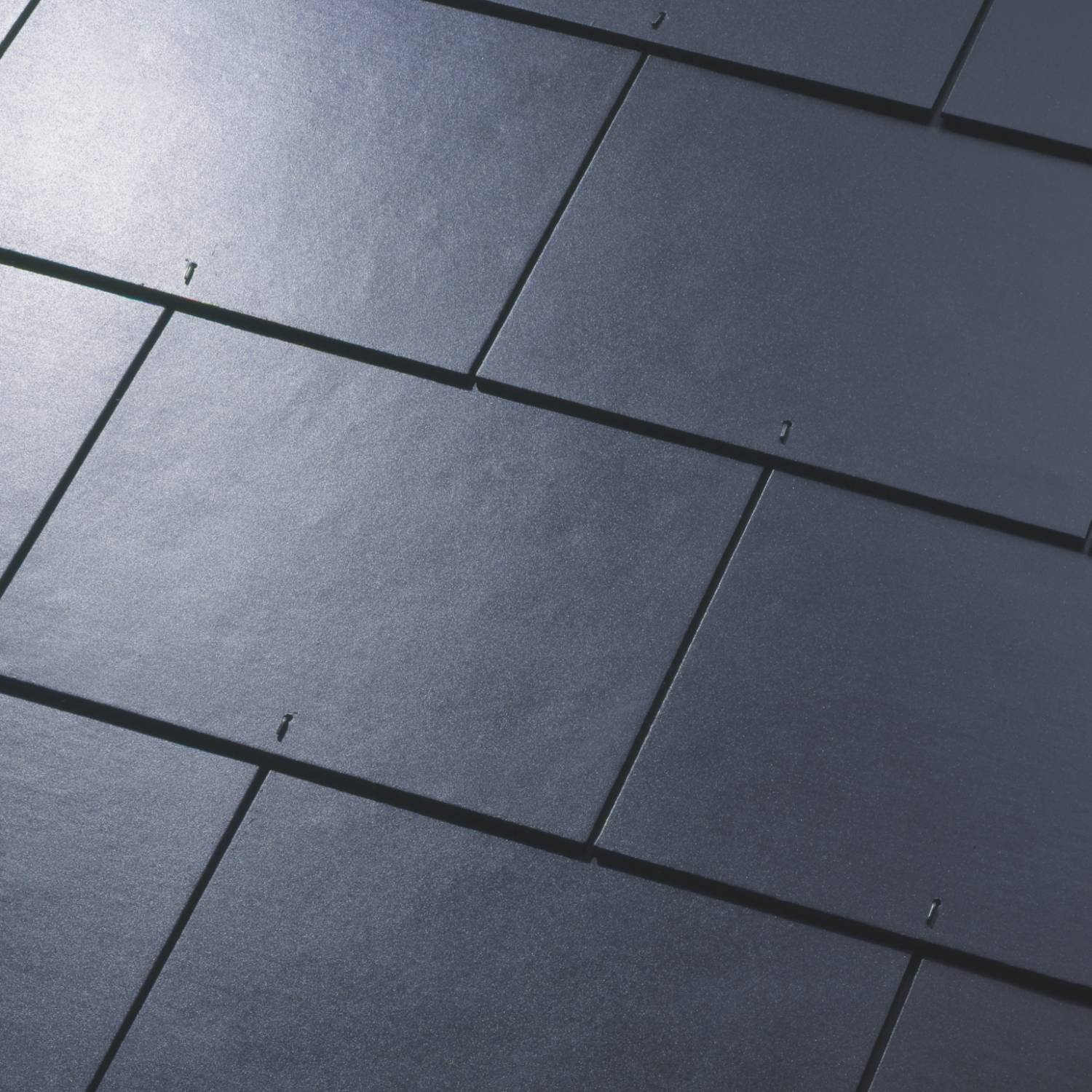

Cedral Thrutone Smooth is a contemporary, fibre cement slate that features a smooth surface and square cut edges for a sleek, aesthetically pleasing finish.

Jump to:
+44 (0)1283 501 555 Website

Application

For all types of new build and refurbishment projects.


  • Available in six colours providing design flexibility.
  • Low wastage.
  • Ease of installation.
  • Particularly suitable for complex roof geometries.

Description

Cedral Thrutone Smooth is a fibre cement slate that features a smooth surface and square cut edges. They are one of the strongest slates on the market and are popular with architects and roofers.


With more cement and fibres than any other, Cedral slates are the strongest slates in the market, tough enough to withstand the most volatile weather conditions.


Features and benefits:

  • A+ Green guide rating.
  • Can achieve a BES 6001 'Very Good' rating.
  • Low maintenance.
  • Fire performance classification A2-s1, d0 to EN 13501-1:2018.
  • Low carbon footprint of 16 CO2e/m².
  • Compliance with BS EN 492 and BS 5534.
  • ISO 9001 and ISO 14001 certified.
  • Available in six colours providing complete design flexibility.
  • Low wastage.
  • Ease of installation.

General information

Color

Black

Guidance for specification option:

Blue-black.

Blue

Guidance for specification option:

Blue-black.

Brown

Green

Grey

Show more

Manufacturer guidance

Available in six colours:

  • Blue-black.
  • Russet.
  • Terracotta.
  • Heather.
  • Stone Green.
  • Turf Brown.

Finish

Smooth

Guidance for specification option:

Smooth surface and square cut edges.

Material

Fibre cement

Shape

Rectangle

Length

600 mm

500 mm

Width

250 mm

300 mm

500 mm

600 mm

Height

4 mm

Guidance for specification option:

slate thickness

Warranty description

Ten year

Guidance for specification option:

To qualify installation of Thrutone slates need to be to Cedral specifications and pass a site check

Uniclass

Pr_25_93_72_30 Fibre-cement slatesPrimary

CAWS

H61/105 Roof slating

H61/120 Vertical slating

Specification data - Fibre-cement slates

Standard

To BS EN 492, BS 5534, ISO 9001; ISO 14001.

Mechanical resistance

≥45 Nm/m.

Guidance for specification option:

For 350–600 mm height.

See DoP for further information.

Fire performance

-

External fire performance

Broof.

Guidance for specification option:

See DoP for further information.

Reaction to fire

To EN 13501-1:2018, A2-s1, d0.

Impermeability

No water drops.

Guidance for specification option:

See DoP for further information.

Dimensional tolerances

Length/width: ±3 mm.
Thickness: +25% to –10% of nominal value.

Guidance for specification option:

See DoP for further information.

Durability requirements

-

Warm water

RL ≥0.75.

Guidance for specification option:

See DoP for further information.

Soak-dry

RL ≥0.75.

Guidance for specification option:

See DoP for further information.

Freeze-thaw

RL ≥0.75.

Guidance for specification option:

See DoP for further information.

Heat-rain

Pass.

Guidance for specification option:

See DoP for further information.

Shape

Rectangular.

Colour

Blue-Black.

Heather.

Russet.

Stone Green.

Terracotta.

Turf Brown.

Manufacturer guidance

Available in a choice of six colours.

Size

600 x 300 x 4 mm.

600 x 600 x 4 mm.

500 x 250 x 4 mm.

500 x 500 x 4 mm.

Sustainability data

Country of product manufacture

Ireland

Guidance for specification option:

Or Germany.

Material

Fibre cement

Recyclability

Guidance for specification option:

Recyclable.

Literature

Cedral Roofs - Asbestos Information

Cedral Roofs - Asbestos Information

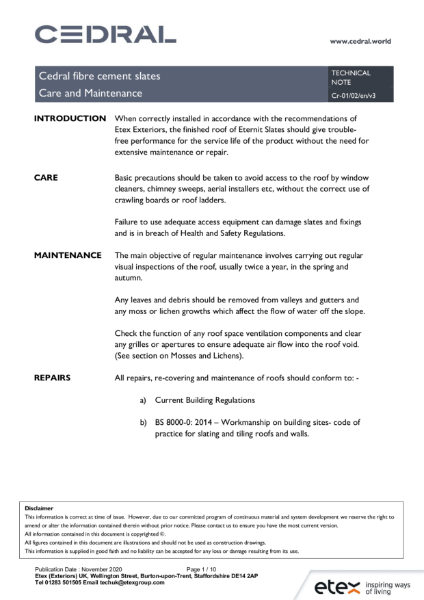

Cedral Roofs - Care and Maintenance

Cedral Roofs - Care and Maintenance

Cedral Roofs - Efflorescence Data Sheet

Cedral Roofs - Efflorescence Data Sheet

Cedral Roofs - Material Data Sheet

Cedral Roofs - Material Data Sheet

Cedral Roofs - Moisture Movement Data Sheet

Cedral Roofs - Moisture Movement Data Sheet

Cedral Roofs - Repair and Replacement

Cedral Roofs - Repair and Replacement

Cedral Roofs - Ventilation Requirements

Cedral Roofs - Ventilation Requirements

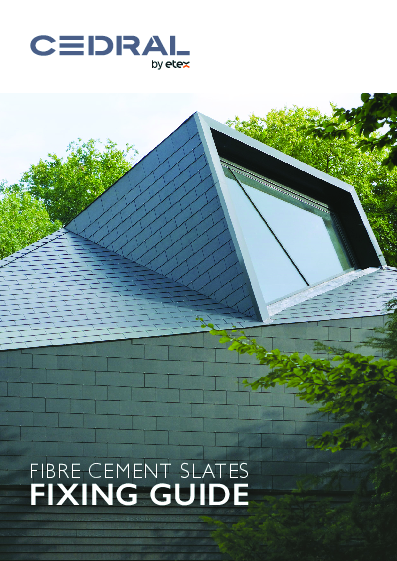

Cedral Roofs Fixing Guide

Cedral Roofs Fixing Guide

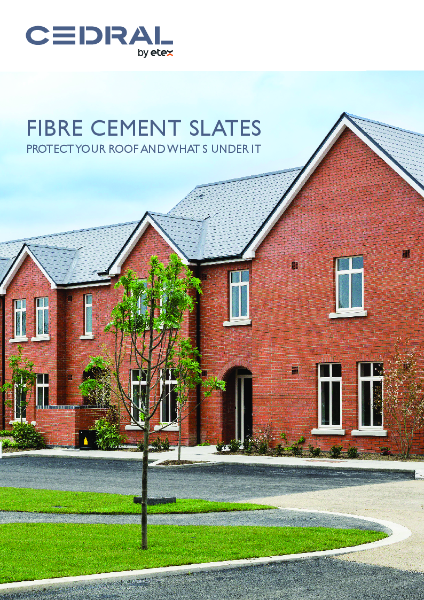

Cedral Roofing Brochure

Cedral Roofing Brochure

Case studies

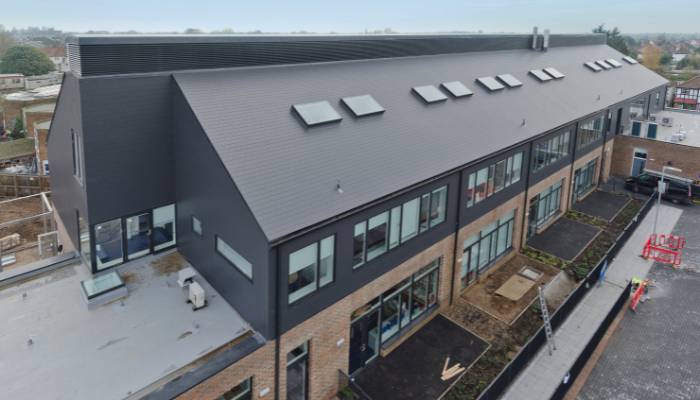

Westbrook Primary School featuring Cedral Thrutone Smooth slates

Westbrook Primary School featuring Cedral Thrutone Smooth slates
