CCTV camera 5MP IR Outdoor Vandal Dome (QNV-8080R)
Verified by manufacturer 7 months ago
5 MP H.265 IR dome camera.
Application
For indoor and outdoor applications.
Description
5 MP H.265 IR dome camera.
Features and benefits:
- Maximum 5 megapixel (2592 x 1944) resolution.
- 3.2–10 mm (3.1x) motorized varifocal lens.
- 0.15 lux (colour), 0 lux (B/W, IR LED on).
- H.265, H.264, MJPEG codec support, multiple streaming.
- Day and night (ICR), WDR (120 dB).
- Tampering, motion detection, defocus detection.
- Micro SD/ SDHC/ SDXC memory slot (128 GB maximum).
- Hallway view, WiseStream II support.
- IR viewable length 30 m (98.42 ft).
- IP66, IK10, PoE.
General information
Color | White |
Material | Aluminium |
Shape | Circle |
Length | 137 mm |
Width | 137 mm |
Height | 106.1 mm |
Uniclass | |
CAWS | W90/170 Surveillance CCTV systems W90/170 Closed-circuit television (CCTV) system |
Specification data - Internet protocol (IP) fixed dome cameras
Image sensor | 1/2.8-inch CMOS. |
Spectrum | Colour/ monochrome. |
Resolution (minimum) | 2592 x 1944.2560 x 1440.Guidance for specification option: 4 MP mode only. 1920 x 1080.1280 x 960.1280 x 720.800 x 600.800 x 448.720 x 576.720 x 480.640 x 480.640 x 360.320 x 240. |
Minimum illumination | Colour 0.15 lux at f1.6 (1/30 s, 30 IRE), monochrome 0.015 lux at f1.6, (1/30 s, 30 IRE), 0 lux (IR LED on). |
Integrated illumination | Infrared. |
Camera functions | |
Focus | Simple focus. |
Shutter | Minimum/ Maximum/ Anti flicker (1/5–1/12000 s). |
Automatic gain control | Low/ Middle/ High. |
White balance control | ATW/ AWC/ Manual/ Indoor/ Outdoor. |
Backlight compensation | BLC, WDR, SSDR. |
Wide dynamic range | 120 dB. |
Day/ night mode switching | Automatic (ICR). |
Privacy masks | Six, rectangular zones. |
Display type | Camera title displayed up to 85 characters. |
Lens | |
Format | Varifocal. |
Iris | Automatic, d.c. drive.Guidance for specification option: IR corrected. |
Focal length | 3.2–10 mm.Guidance for specification option: 3.1x motorized varifocal. |
Aperture range | F1.6–F2.9. |
Angle of view | H: 101–31°, V: 73–23°, D: 134–38°. |
Video motion detection | Four, polygonal zones. |
Power supply | PoE. |
Network connectivity | 10/100BASE-T via RJ-45. |
Network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP. |
Video compression formats | H.264/H.265, MJPEG.Guidance for specification option: H.264/H.265: CBR or VBR. MJPEG: VBR. |
Video streaming | Unicast (6 users)/ Multicast. |
Integral memory storage (minimum) | 512 MB RAM, 256 MB flash. |
Alarm inputs | One. |
Alarm outputs | One. |
Camera housing | |
Ingress protection (minimum) | To BS EN 60529, IP66. |
Impact protection (minimum) | To BS EN 62262, IK10. |
Housing colour | White. |
Dome colour | Transparent. |
Accessories | Not required.SBP-300LMW.SBP-300WMW1.SBP-300KMW.SBP-300BW.SBP-300PMW.SBV-136BW.SPB-VAW72.SHD-1408FW.SBP-301HMW2.SBP-300WMW.SBP-137WMW1.SBP-300NBW.SBP-300CMW. |
Literature

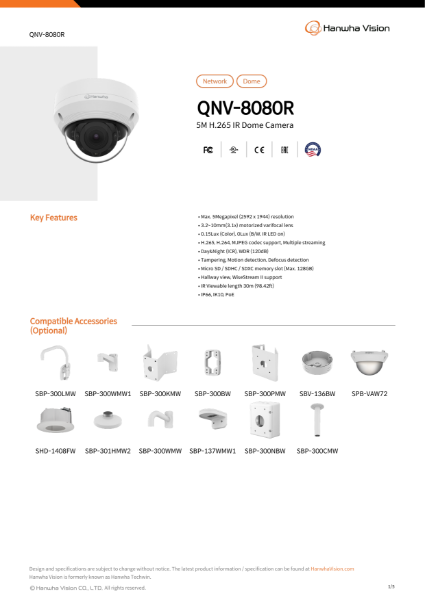

CCTV camera 5MP IR Outdoor Vandal Dome (QNV-8080R) data sheet
