CCTV camera 5MP IR AI Vandal Dome (QNV-C8083R)
Verified by manufacturer 7 months ago
5 MP IR vandal dome camera.
Application
For indoor and outdoor applications.
Description
5 MP IR vandal dome camera.
Features and benefits:
- Maximum 5 MP resolution.
- Maximum 30 fps.
- Colour: 0.07 lux (f1.6, 1/30 s), BW: 0.007 lux (f1.6, 1/30 s, 30 IRE).
- Focal length: 3.2–10.2 mm (3.2x) motorized varifocal.
- H.265, H.264, MJPEG codec supported.
- Multiple streaming (up to five profiles).
- Day and night (ICR), WDR (120 dB).
- Micro SD/SDHC/SDXC 1 slot 256 GB.
- IP66, IK10.
- PoE: maximum 12.95 W.
General information
Color | White |
Material | Aluminium |
Shape | Circle |
Length | 140 mm |
Width | 140 mm |
Height | 110.2 mm |
Uniclass | |
CAWS | W90/170 Surveillance CCTV systems W90/170 Closed-circuit television (CCTV) system |
Specification data - Internet protocol (IP) fixed dome cameras
Image sensor | 1/2.8-inch CMOS. |
Spectrum | Colour/ monochrome. |
Resolution (minimum) | 2592 x 1944.2560 x 1440.Guidance for specification option: 4 MP mode only. 1920 x 1080.1280 x 960.1280 x 720.800 x 600.800 x 448.720 x 576.720 x 480.640 x 480.640 x 360.320 x 240. |
Minimum illumination | Colour 0.07 lux at f1.6 (1/30 s, 30 IRE), monochrome 0.007 lux at f1.6, (1/30 s, 30 IRE), 0 lux (IR LED on). |
Integrated illumination | Infrared. |
Camera functions | |
Focus | Simple focus. |
Shutter | Minimum/ Maximum/ Anti flicker (1/5–1/12000 s). |
Automatic gain control | Low/ Middle/ High. |
White balance control | ATW/ AWC/ Manual/ Indoor/ Outdoor. |
Backlight compensation | BLC, WDR, SSDR. |
Wide dynamic range | 120 dB. |
Day/ night mode switching | Automatic (ICR). |
Audio facility | Selectable (mic in/line in).Guidance for specification option: Line out maximum output level: 0.5 Vrms. |
Privacy masks | 32, four point quadrangle zones. |
Display type | Camera title displayed up to 85 characters. |
Lens | |
Format | Varifocal. |
Iris | Automatic, d.c. drive.Guidance for specification option: IR corrected. |
Focal length | 3.2–10.2 mm.Guidance for specification option: 3.2x motorized varifocal. |
Aperture range | F1.6–F3.1. |
Angle of view | H: 95–29°, V: 69–21°, D: 126–36°. |
Video motion detection | Eight, eight point polygonal zones. |
Power supply | PoE. |
Network connectivity | 10/100BASE-T via RJ-45. |
Network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast). |
Video compression formats | H.264/H.265, MJPEG.Guidance for specification option: H.265/H.264: Main/High. |
Video streaming | Unicast (20 users)/ Multicast. |
Integral memory storage (minimum) | 2 GB RAM, 1 GB Flash. |
Alarm inputs | One.Manufacturer guidanceAlarm input is supported through an optional cable (SPP-C7400). |
Alarm outputs | One.Manufacturer guidanceAlarm output is supported through an optional cable (SPP-C7400). |
Camera housing | |
Ingress protection (minimum) | To BS EN 60529, IP66. |
Impact protection (minimum) | To BS EN 62262, IK10. |
Housing colour | White. |
Dome colour | Transparent. |
Accessories | Not required.SPP-C7400.Guidance for specification option: Optional cable to support alarm input/ output and audio in, audio out. SBP-140HMW.Guidance for specification option: Hanging mount (dome). SBV-140BW.Guidance for specification option: Backbox. |
Literature

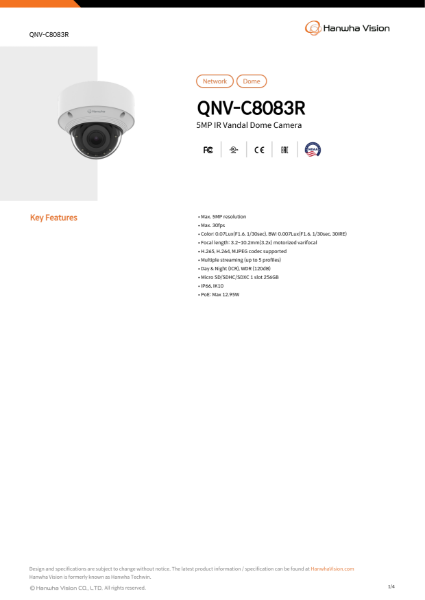

CCTV camera 5MP IR AI Vandal Dome (QNV-C8083R) data sheet
