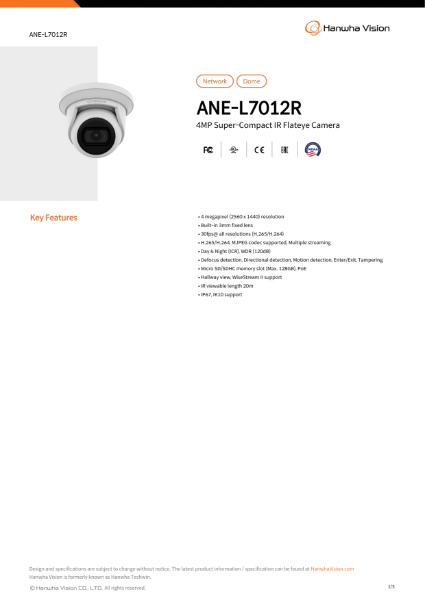

Name: CCTV camera 4MP Turret (ANE-L7012R)
Brand: Hanwha Vision Europe Limited
SKU: 81mrSbtwtrHmRX47VnvjXu

Verified by manufacturer 7 months ago

W90/170 Surveillance CCTV systems

W90/170 Closed-circuit television (CCTV) system

Color	White
Material	Aluminium Plastic
Shape	Circle
Length	125 mm
Width	125 mm
Height	87.4 mm

Uniclass	Pr_60_75_86_65 Internet protocol (IP) high-speed pan-tilt-zoom (PTZ) camerasPrimary
CAWS	W90/170 Surveillance CCTV systems W90/170 Closed-circuit television (CCTV) system

Image sensor	1/2.8-inch CMOS.
Spectrum	Colour/ monochrome.
Resolution (minimum)	2560 x 1440. 1920 x 1080. 1280 x 960. 1280 x 720. 800 x 600. 800 x 448. 720 x 576. 720 x 480. 640 x 480. 640 x 360. 320 x 240.
Minimum illumination	Colour 0.13 lux at f1.6 (1/30 s), black and white 0 lux (IR LED on).
Integrated illumination	Infrared.
Camera functions	-
Focus	Fixed.
Shutter	Minimum/ Maximum/ Anti flicker (1/5–1/12000 s).
Automatic gain control	Low/ Middle/ High.
White balance control	ATW/ AWC/ Manual/ Indoor/ Outdoor.
Backlight compensation	BLC, WDR, SSDR.
Wide dynamic range	120 dB.
Day/ night mode switching	Automatic (ICR).
Privacy masks	Six, rectangular zones.
Display type	Camera title displayed up to 85 characters.
Lens	-
Focal length	3.0 mm.
Aperture range	F1.6.
Angle of view	H: 99°/ V: 55°/ D: 115°.
Pan-and-tilt function	-
Pan angle	0–350°.
Tilt angle	0–75°.
Image flip	Required.
Video motion detection	Eight, eight point polygonal zones.
Power supply	PoE.
Network connectivity	10/100BASE-T via RJ-45.
Network protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP.
Video compression formats	H.265/H.264: Main/ high, MJPEG.
Video streaming	Unicast (6 users)/ Multicast. Multiple streaming (up to 3 profiles).
Integral memory storage (minimum)	512 MB RAM, 256 MB flash.
Camera housing	-
Ingress protection (minimum)	To BS EN 60529, IP67.
Impact protection (minimum)	To BS EN 62262, IK10.
Mounting arrangement	Ceiling.

CCTV camera 4MP Turret (ANE-L7012R)

Application

Description

General information

Color

Material

Shape

Length

Width

Height

Uniclass

CAWS

Specification data - Internet protocol (IP) high-speed pan-tilt-zoom (PTZ) cameras

Image sensor

1/2.8-inch CMOS.

Spectrum

Colour/ monochrome.

Resolution (minimum)

2560 x 1440.

1920 x 1080.

1280 x 960.

1280 x 720.

800 x 600.

800 x 448.

720 x 576.

720 x 480.

640 x 480.

640 x 360.

320 x 240.

Minimum illumination

Colour 0.13 lux at f1.6 (1/30 s), black and white 0 lux (IR LED on).

Integrated illumination

Infrared.

Camera functions

Focus

Fixed.

Shutter

Minimum/ Maximum/ Anti flicker (1/5–1/12000 s).

Automatic gain control

Low/ Middle/ High.

White balance control

ATW/ AWC/ Manual/ Indoor/ Outdoor.

Backlight compensation

BLC, WDR, SSDR.

Wide dynamic range

120 dB.

Day/ night mode switching

Automatic (ICR).

Privacy masks

Six, rectangular zones.

Display type

Camera title displayed up to 85 characters.

Lens

Focal length

3.0 mm.

Aperture range

F1.6.

Angle of view

H: 99°/ V: 55°/ D: 115°.

Pan-and-tilt function

Pan angle

0–350°.

Tilt angle

0–75°.

Image flip

Required.

Video motion detection

Eight, eight point polygonal zones.

Power supply

PoE.

Network connectivity

10/100BASE-T via RJ-45.

Network protocols

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP.

Video compression formats

H.265/H.264: Main/ high, MJPEG.

Video streaming

Unicast (6 users)/ Multicast.Multiple streaming (up to 3 profiles).

Integral memory storage (minimum)

512 MB RAM, 256 MB flash.
