CCTV camera 2MP 25x IR PTZ (QNP-6250R)
Verified by manufacturer 6 months ago
2 MP 25x IR PTZ camera.
Application
For indoor and outdoor applications.
Description
2 MP 25x IR PTZ camera.
Features and benefits:
- Maximum 2 MP resolution.
- 4.44–111 mm (25x) lens.
- Maximum IR viewable length 100 m (328.08 ft).
- Day and night (ICR), WDR, DIS (built-in gyro sensor).
- Intelligent analytics.
- H.264, H.265, MJPEG codec, WiseStreamII.
- Micro SD/SDHC/SDXC 1 slot 256 GB.
- IP66, IK10, NEMA4X.
General information
Color | White |
Material | Aluminium Polycarbonate |
Shape | Circle |
Length | 158 mm |
Width | 158 mm |
Height | 293.3 mm |
Warranty description | Five year |
Uniclass | |
CAWS | W90/170 Surveillance CCTV systems W90/170 Closed-circuit television (CCTV) system |
Specification data - Internet protocol (IP) high-speed pan-tilt-zoom (PTZ) cameras
Image sensor | 1/2.8-inch CMOS. |
Spectrum | Colour/ monochrome. |
Resolution (minimum) | 1920 x 1080.1280 x 1024.1280 x 960.1280 x 720.1024 x 768.800 x 600.800 x 448.720 x 576.720 x 480.640 x 480.640 x 360.320 x 240. |
Minimum illumination | Colour 0.05 lux at f1.6 (1/30 s, 30 IRE), black and white 0.005 lux at f1.6 (1/30 s, 30 IRE), 0 lux (IR LED on). |
Integrated illumination | Infrared. |
Camera functions | |
Focus | Oneshot AF, Focus save. |
Iris | Automatic. |
Shutter | Minimum/ Maximum/ Anti flicker (2–1/12000 s). |
Automatic gain control | Low/ Middle/ High. |
White balance control | ATW/ AWC/ Manual/ Indoor/ Outdoor/ Mercury/ Sodium. |
Backlight compensation | BLC, HLC, WDR, SSDR. |
Wide dynamic range | 120 dB. |
Day/ night mode switching | Automatic (ICR). |
Privacy masks | 32, four point quadrangle zones.Guidance for specification option:
|
Display type | Camera title displayed up to 85 characters. |
Lens | |
Focal length | 4.44–111 mm.Guidance for specification option: 25x zoom. Digital 32x, total 800x zoom. |
Aperture range | F1.6–F3.9. |
Angle of view | H: 64.66–2.99°; V: 38.08–1.68°. |
Pan-and-tilt function | |
Pan angle | 360°. |
Pan speed | Preset: 700°/s, Manual: 0.024–250°/s. |
Tilt angle | 110°.Guidance for specification option: 90 to -20°. |
Tilt speed | Preset: 300°/s, Manual: 0.024–250°/s. |
Image flip | Required. |
Video motion detection | Eight, eight point polygonal zones. |
Power supply | PoE. |
Network connectivity | 10/100BASE-T via RJ-45.Guidance for specification option: Metal shielded. |
Network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), NTCIP1205. |
Video compression formats | H.265/H.264: Main/ high, MJPEG. |
Video streaming | Unicast (20 users)/ Multicast. |
Integral memory storage (minimum) | 1 GB RAM, 256 MB flash. |
Camera housing | |
Ingress protection (minimum) | To BS EN 60529, IP66. |
Impact protection (minimum) | To BS EN 62262, IK10. |
Dome colour | Smoked. |
Mounting arrangement | Ceiling.Corner wall.Pole.Wall.Manufacturer guidanceSee Accessories for mounts. |
Accessories | Not required. SBP-156HMW. Guidance for specification option: Hanging mount (dome). SBP-156CMW. Guidance for specification option: Ceiling mount. SBP-300CMTS. Guidance for specification option: Ceiling mount. SBP-300CMW1/900CMW. Guidance for specification option: Ceiling mount. |
Literature

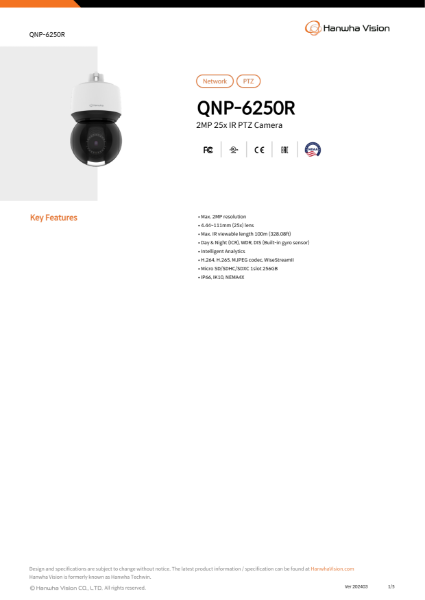

CCTV camera 2MP 25x IR PTZ (QNP-6250R) data sheet
