Description

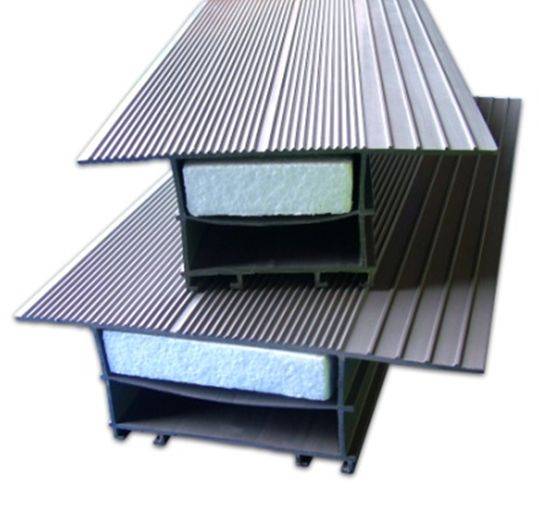

The Profile 22 cavity closer is a former and dpc, available in standard and check reveal options for building into reveals in new build constructions. The former is suitable for cavity sizes of 75–150 mm (130 mm for check reveal) and will accept 70 mm PVC-U systems.

The former is placed in situ and the brick and blockwork built around. The windows and doors can be fitted at a later point in the building construction, reducing the potential for damage.

The Profile 22 former has BBA approval. It meets the NHBC standards and offers the thermal and energy efficiency performance required for compliance with the Accredited Construction Details of Part L of the Building Regulations.

General information
Features

Closes cavities from 75–150 mm

Mechanically jointed or welded

Compatible with any type of lintel

Accepts PVC-U frames from 60–75 mm depth, also accepts timber frames

Eliminates the need for return blocks and dpc

Protects the cavity from water penetration

Pre-glazed windows can be fitted quickly and easily

Overhead vents included to provide ventilation in line with current Building Regulations

Check reveal option available

Uniclass 2015 Plastics cavity closers (Pr_35_90_50_64)
Specification data
Product Reference

Profile 22 Former

Type

F751F

75 mm Flush reveal former with insulation.

F751

75 mm Flush reveal former.

F752

75 mm Outside window fit former.

F753

75 mm Inside window fit former.

F754

75 mm Check reveal former.

F101F

100 mm Flush reveal former with insulation.

F101

100 mm Flush reveal former.

F102

100 mm Outside window fit former.

F103

100 mm Inside window fit former.

F104

100 mm Check reveal former.

Head vents

F031

Flush reveal - 30 mm deep.

F032

Outside fit - 30 mm deep.

F033

Inside fit - 30 mm deep.

Accessories

None

Mechanical corner joint blocks

Head bracing tube and connectors

Corner bracings

Standard product features

Features:

  • Closes cavities from 75–150 mm.
  • Mechanically jointed or welded
  • Compatible with any type of lintel.
  • Accepts PVC-U frames from 60–75 mm depth, also accepts timber frames.
  • Eliminates the need for return blocks and dpc.
  • Protects the cavity from water penetration.
  • Pre-glazed windows can be fitted quickly and easily.
  • Overhead vents included to provide ventilation in line with current Building Regulations.
  • Check reveal option available.

Third party certifications
  • Certificate No. 09/4651
