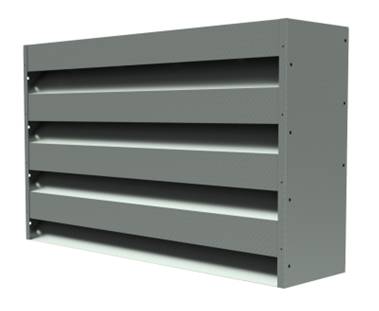

CALM S18-300
Verified by manufacturer 6 days ago
An acoustic louvre that balances airflow with advanced noise control. With a 300 mm blade depth, it’s suitable for plant rooms, substations, and cooling towers needing quieter ventilation.
Application
Suitable for use in plant rooms, cooling towers, substation and other high-noise areas.
Description
The Colt CALM S18‑300 is a high‑performance acoustic louvre designed for environments needing both ventilation and noise control. Its 300 mm straight blade profile provides enhanced sound reduction, achieving Rw (C, Ctr) 22 (‑1, ‑5) as tested to BS EN ISO 10140‑2:2021, while maintaining excellent aerodynamic efficiency (Cv 0.161). With a modular design, robust steel construction, and optional finishes, it ensures flexibility, durability, and long service life.
Features and benefits:
- 300 mm straight blade profile balances strong noise control with airflow.
- Certified acoustic performance tested to BS EN ISO 10140‑2:2021.
- Modular design enables walls or runs in any required width or height.
- Pre‑punched fixing points allow safe, quick two‑person installation.
- Panel joining kits support longer spans with fewer structural supports.
- Integrates seamlessly with Colt UL systems; optional rear‑mounted screens.
General information
Color | Silver Other |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H11/140 Louvres L10/490 Roof ventilators L10/650 Metal louvres |
SKU Code | S18-300 |
Specification data - Louvre screen systems
Classification data | |
Screen framing | Galvanized steel sheet panels. |
Louvres | |
Type | 300 mm galvanized steel louvres. |
Operation | Fixed. |
Acoustic panels | |
Facing | Water-repellent, non-hygroscopic semi-rigid acoustic infill. |
System accessories | Not required. Bird guard. Guidance for specification option: The use of any screen option requires applying a Cv correction factor of 0.95. Bird guard with insert mesh. Guidance for specification option: The use of any screen option requires applying a Cv correction factor of 0.95. Fly guard. Guidance for specification option: The use of any screen option requires applying a Cv correction factor of 0.95. Panel joining kits. COLT ventilators. |
Dimensions | Guidance for specification option: Insert requirements or drawing/ schedule reference. |
Finish/ Colour | Not required. Guidance for specification option: As standard. Polyester powder-coated, RAL colour. Guidance for specification option: Consult manufacturer and insert colour requirements. Marine grade coatings. Guidance for specification option: Consult manufacturer and insert requirements. |
Acoustic performance | Rw (C, Ctr: ): 22 (-1, -5). |
Performance | Cv: 0.161 (K=38.58). Manufacturer guidanceAerodynamic Performance. |
Sustainability data
Material | Steel |
Similar products from Colt International Ltd
CALM S18-150
CALM S18-300-V
CALM S18-600-V

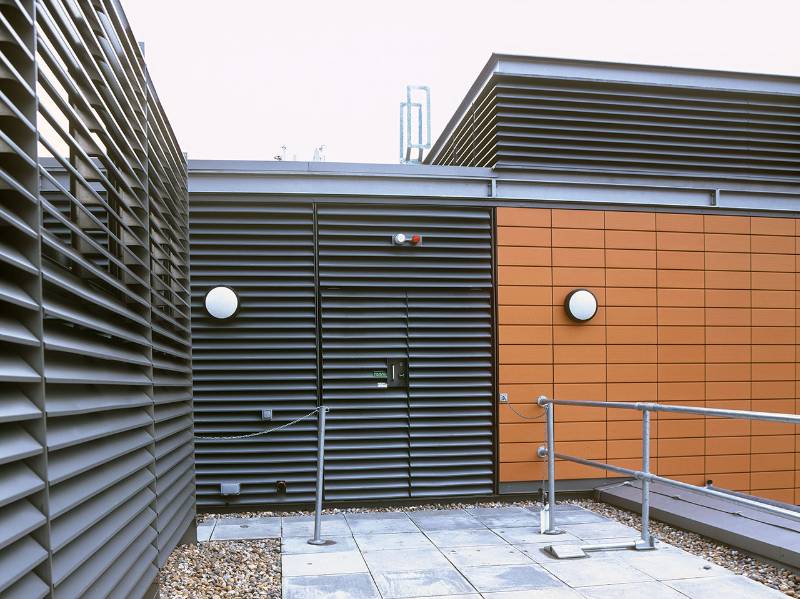

Universal Louvre - 1UL
