Description

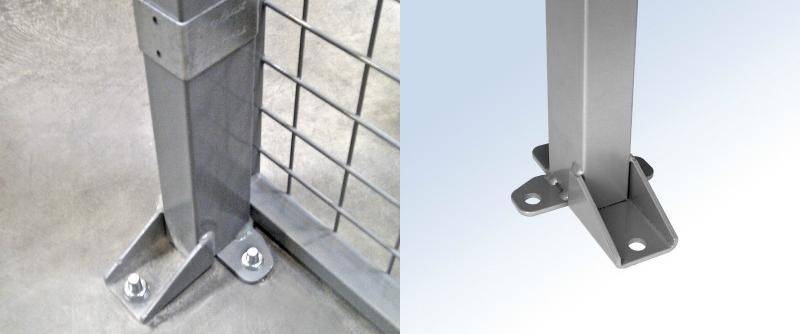

Tubular Steel Posts 60x40mm - to support the Troax UX 450 and UR 350 steel mesh panel systems. These are supplied in two standard heights - 2200mm & 3000mm and can be extended with the addition of an extension bracket and tubes at 800mm, 1200mm & 2200mm.

General information
Color

Grey - RAL 7037 & Hot-Dip Galvanised, other RAL colours by special order

Material

Carbon steel

WarrantyDescription

Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required]

Uniclass 2015
Carbon steel posts (Pr_20_76_64_12)Primary
Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 3 2.0
Download now from NBS National BIM Library
