Caelum - Door Sliding Double - Double Rail

Caelum - Door Sliding Double - Double Rail

Troax (UK) Ltd

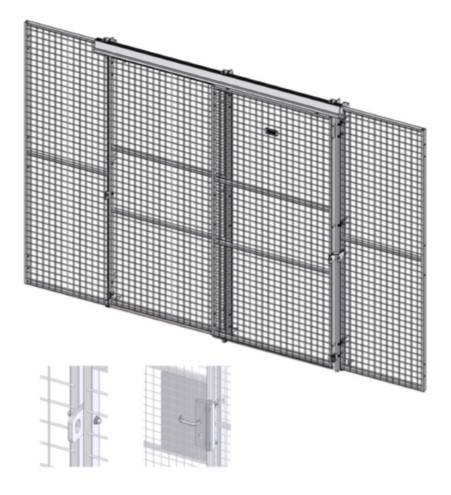

Steel mesh partition wall double rail sliding door, available with various locking options, available in powder coated and hot-dip galvanised finishes.

Jump to:
+44 (0)1793 542000 www.troax.com/gb
Description

Double Sliding Door in Double Rails - UX 450 (50 x 50mm mesh) & UX325 (25 x 25mm mesh) - steel mesh sliding doors are available in a range of opening widths and heights for use where space may be an issue. Locking options such as a padlock, euro cylinder and ASSA can be incorporated. Doors are available in heights from 2200mm to 4500mm. They are compatible with our UX 450, UR 325 and UR 350 modular mesh wall panel systems to create partitions, storage cages, enclosures and dividing walls. UX tube frames are 30 x 20mm. UR tube frames are 19 x 19mm. Top guide rails are aluminium, which keep running bearings in place. The rails are supplied in lengths 3000mm to be cut or joined to achieve the required lengths, the doors are mounted on special tubes e.g. for fitting to the front of racking or to posts for a stand alone solution.

General information
Features

Runs on overhead composite trolleys with a guide angle through a composite block

Material

Carbon steel mesh panels, fixings and aluminium rail

WarrantyDescription

Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required

Uniclass 2015
Pr_30_59_24_80 Sliding door and partition setsPrimary
Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
Download now from NBS National BIM Library
