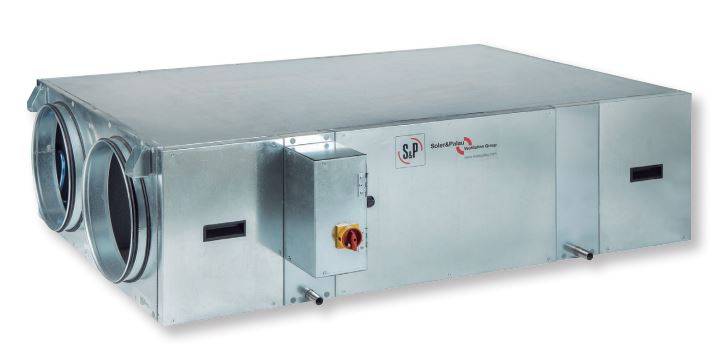

CAD-COMPACT ADVANCED | Counter-Flow Heat Recovery Series

Verified by manufacturer 4 months ago

CAD-COMPACT 500 ADVANCED

S&P UK Ventilation Systems Ltd Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

High-efficiency heat recovery units

Jump to:
BIM object icon
+44 (0)1473 276890 Website

Application

Air renewal in commercial premises, offices, hotels, public buildings, schools. The CAD-COMPACT range is not available with additional post-heating batteries integrated in the unit, although it is possible to add them as accessories.

Description

Heat recovery units with high-efficiency counterflow plate heat exchanger (up to 88%) certified by Eurovent, mounted in a galvanized steel double-walled enclosure with internal thermo-acoustic fireproof insulation (A1/M0) made of 25 mm thick mineral wool in models 500 to 2500, and 30 mm in models 3200 and 4500. Circular inlet and outlet flanges with seals in models 500 to 1800, and rectangular flanges in models 2500 to 4500. Only available in horizontal version. Minimum outside air temperature -10ºC. For lower temperatures it is necessary to use preheating batteries located in the suction of the outside air.


Fans:

Plug fans with reverse impeller blades. Single-phase EC motors with integrated electronic protection. IP44, Class B.


Filters:

  • F7: Low pressure F7 filters (ePM1, 70%) for air supply.
  • M5: M5 filters (ePM10, 50%) for air extraction. - It is possible to mount a second filter inside the system (supplied as an accessory).


Control:

ADVANCED VERSION:

An integrated function control, located inside the electrical box and wired to all the components (fans, bypass, filter clogging detectors, temperature probes, etc.). Includes control terminal for remote control (wired). It allows manual or automatic fan control. See detailed characteristics of both controls in the table about Plug&Play versions functionalities.

  • Touch control screen.
  • Same functions as BASIC version plus fan control in VAV, COP and CAV modes.
  • Control of external water coils (accessories).
  • Additional functions.

Consult technical literature for further details.


Performance:

Single-phase electrical supply 230V 50-60Hz in models 500 to 3200, three-phase 400V 50-60Hz in model 4500. Nominal airflow of 460 to 4.165 m³/h with 150 Pa of available pressure. All models and versions include internal bypass.


Features and benefits:

  • Low noise level and robust construction
  • High efficient heat exchanger
  • High efficiency filters
  • Bypass with an integrated actuator
  • Easy assembly
  • Reduced dimensions
  • Easy maintenance
  • Electrical box and security switch included.

General information

Color

Grey

Finish

Galvanized

Material

Steel

Length

Dependent on model specified.

-

Width

Dependent on model specified.

-

Height

Dependent on model specified.

-

Warranty description

Two year

Uniclass

Pr_60_65_03_87 Supply and return air-handling unitsPrimary

Specification data - Supply and return air-handling units

Casing construction

-

Fire protection

Category A.

Material

Galvanized sheet steel.

Finish

Galvanized.

Components

-

Filters

Low pressure F7 filters (ePM1 70%).

Air supply.

M5 filters (ePM10 50%).

Air extraction. It is possible to mount a second filter inside the system (supplied as an accessory).

F9 filter.

G4 filter.

Supply fan

-

Fan type

Plug fans

FlowRateRange

Up to 1000 L/s.

Control

ADVANCED With integrated control.

Dimensions

289 x 862 x 1163 mm.

Connections

200 mm diameter.

NominalAirFlowRate

460 m²/hour.

Efficiency

82.2%.

Electrical

1/230V, 50-60 Hz.

Weight

70 kg.

Accessories

ACOPEL F400.

Flexible connector

APC - APR.

Flexible connector

External electric coil.

External water coil.

KIT PIES CAD COMPACT.

Weatherproof accessories

Show more

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

QA Certificate

Eurovent Certita (Plate Heat Exchangers - CAD-COMPACT ADVANCED & CADB/T-HE PRO-REG)

Literature

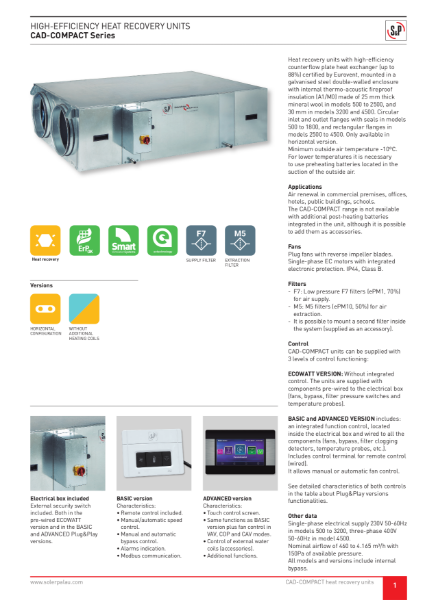

CAD-COMPACT ADVANCED Catalogue

CAD-COMPACT ADVANCED Catalogue

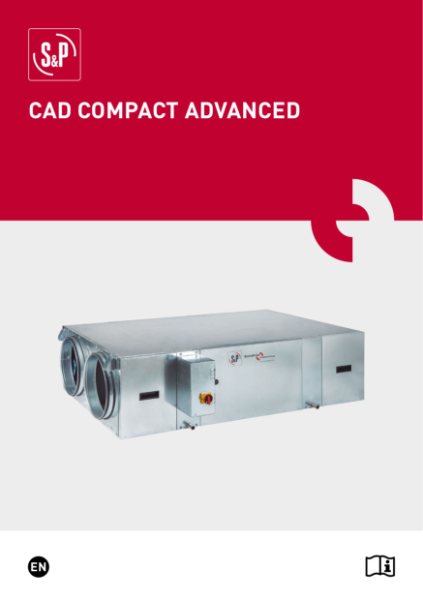

CAD-COMPACT ADVANCED | Installation, Operation & Maintenance Manual

CAD-COMPACT ADVANCED | Installation, Operation & Maintenance Manual

Similar products from S&P UK Ventilation Systems Ltd

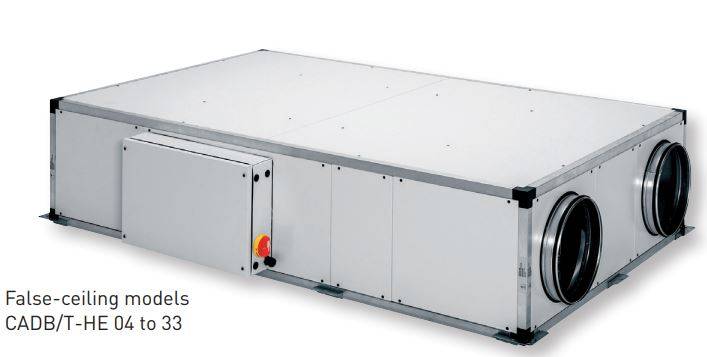

CADB/T-HE PRO-REG | Counter-Flow Heat Recovery Series

CADB/T-HE PRO-REG | Counter-Flow Heat Recovery Series

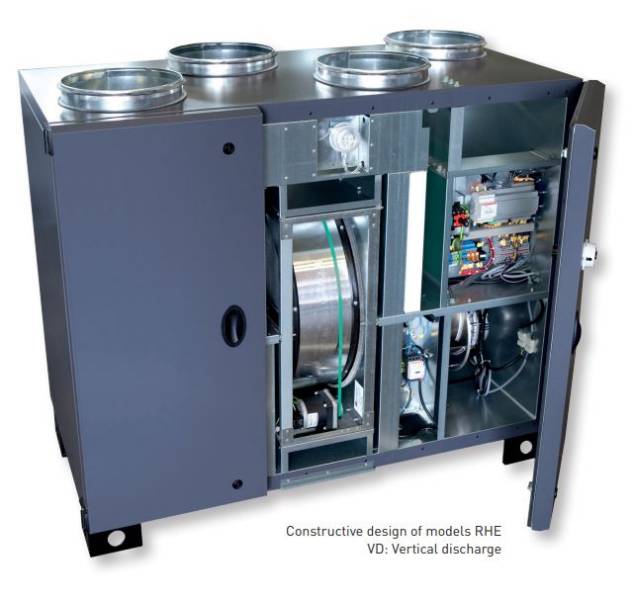

RHE | Thermal Wheel Heat Recovery Series
