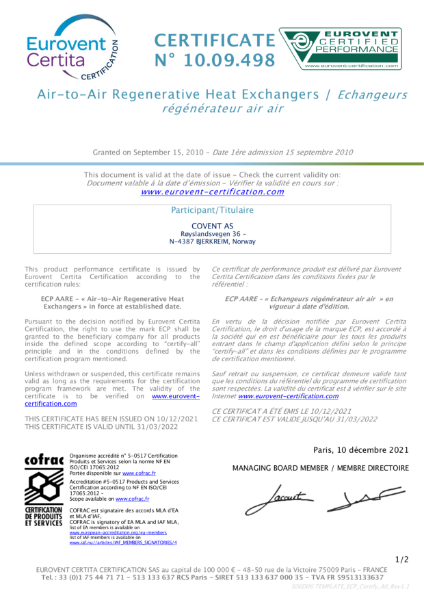

QA Certificate
Certificate type
QA Certificate
Certificate type

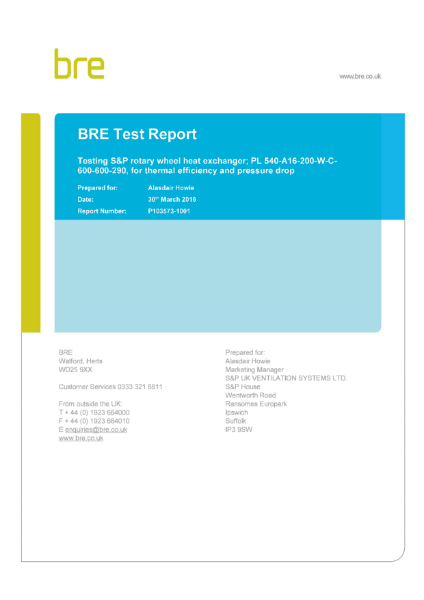

BRE Certificate
Certificate type
High efficiency heat recovery units with rotary wheel.
Public buildings, offices, stores, schools, restaurants.

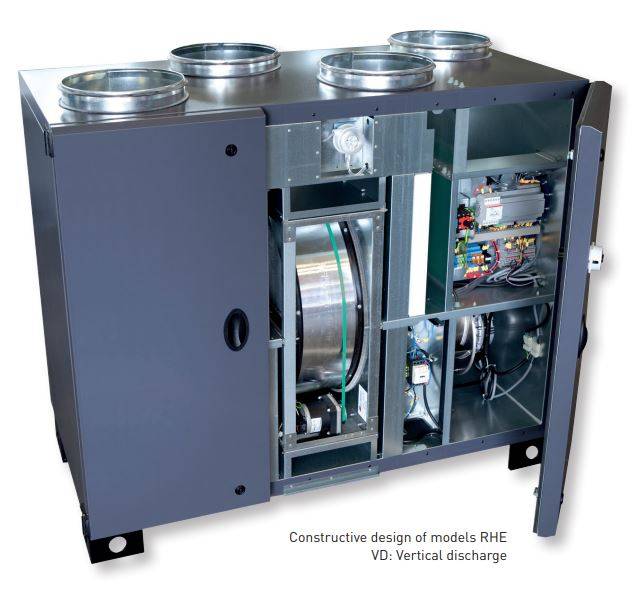

High efficient heat recovery units up to 88% with rotary wheel, plug-fans with backward curved blades and EC external-rotor motor. Preconfigured control system for easy start-up. The casing is made of 50 mm, self-supporting double skinned panels (mineral wool, 40 kg/m³, thermal conductivity 0.037 W/ mK).
The outer skin is made from coated steel (RAL 7024) with a high resistance against corrosion (class: RC3) and UV light (class: RUV3) according to EN 10169 and the inner skin is made from galvanized steel. Support feet are made from 3 mm, RAL9011 coated, 100 mm height (except RHE 6000 to 10000 models, which are base-mounted), with possibility to fit anti-vibration mounts or leveling feet (as accessories). Easy access to all components via large hinged front doors. Circular inlet and discharge connection flanges with EPDM rubber seal strip, VELODUCT© tightness class D up to size 3500 HD, rectangular connections for the sizes 4500 VD, 6000, 8000, 10000 and 15000.
Consult technical literature for performance values.
Versions available:
Fan/ Motors:
Plug-fan with backward curved blades, external rotor EC motor with maintenance free ball bearings and permanent lubrication, with integrated electronic protection (locked-rotor, phase failure, under-voltage, over-temperature, short-circuit). Protection IP54, Class B. (RHE-8000/10000/15000 models, Class F)
Models:
Control (Plug & Play):
Color | Grey |
Finish | Coated |
Material | Steel |
Length | Manufacturer guidanceDependent on variant specified. |
Width | Manufacturer guidanceDependent on variant specified. |
Height | Manufacturer guidanceDependent on variant specified. |
Warranty description | Two year |
Uniclass |
SKU Code | RHE |
Casing construction | |
Material | Sheet steel. |
Finish | Coated. |
Air-handling unit feet | 3 mm, RAL 9011 coated, 100 mm height. |
Components | |
Filters | Low pressure F7 filters (ePM1 70%). F9 filters. G4 pre-filter. M5 pre-filter. |
Supply fan | |
Fan type | Plug fans |
Dimensions | 1285 x 750 x 1185 mm. Guidance for specification option: RHE 700/1300 VD 1309 x 983 x 763 mm. Guidance for specification option: RHE 700/1300 HD 1459 x 1085 x 851 mm. Guidance for specification option: RHE 1900 HD 1490 x 850 x 1309 mm. Guidance for specification option: RHE 1900 VD 1558 x 1183 x 1000 mm. Guidance for specification option: RHE 2500 HD |
Size: | 700. 1300. 1900. 2500. 3500. |
DischargePosition | HDR: Horizontal discharge and access from the right side.. HDL: Horizontal discharge and access from the left side. VD: Vertical discharge. |
Configuration | D: Standard range. |
Accessories | ACOPEL RECT. Guidance for specification option: Rectangular elastic coupling. APPR/APPA. Guidance for specification option: Protection guard for axhaust air / otdoor air. Anti vibration feet. Anti-freeze damper. Flexible connection. |
Material | Steel |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
