BV075Q amplifier
Verified by manufacturer 4 months ago

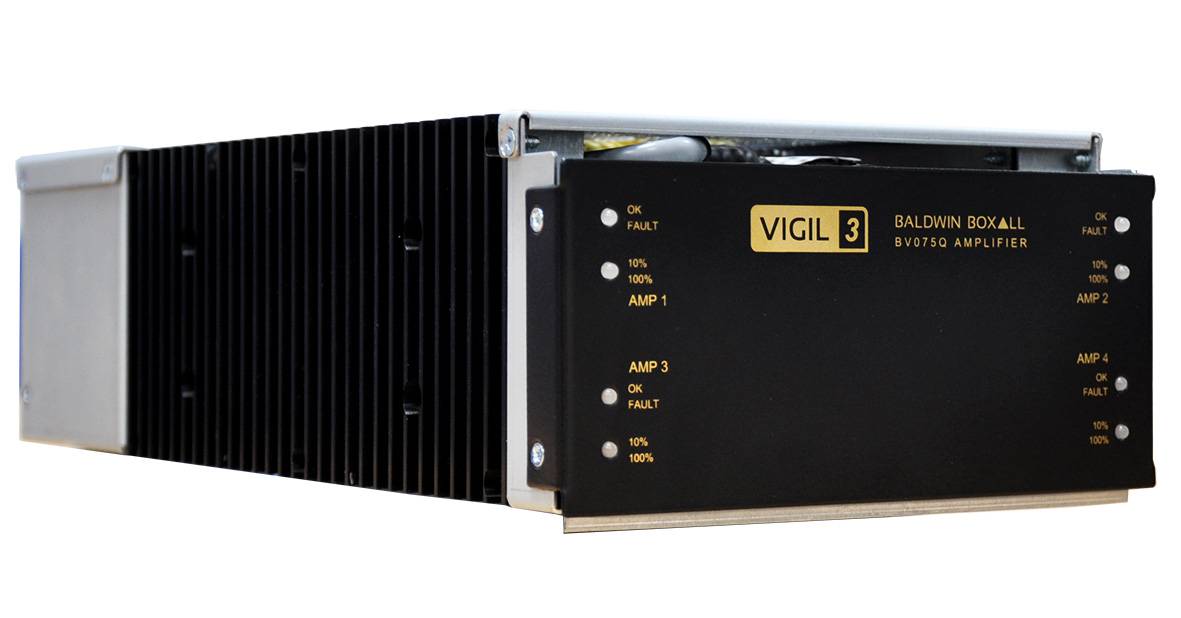

VIGIL3 Quad 75 Watt amplifier.
Description
VIGIL3 amplifier with floating transformerless technology. Each amplifier weighs 58% less when compared on a Watt-for-Watt basis. Up to three amplifier units can be housed in a single 2U rack space.
Features and benefits:
- Light weight.
- Built-in power supply.
- Amplifier includes sleep mode which can reduce power usage, backward compatible.
- Amplifiers in unit: 4 x 75 W.
General information
Color | Black |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 311 mm |
Width | 142 mm |
Height | 75 mm |
Warranty description | Seven year Guidance for specification option: Baldwin Boxall warrants all product manufactured by itself for a period of seven years from date of invoice. |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems |
Specification data - Voice alarm power amplifiers
Standard | To BS EN 54 and BS 5839. |
Rated voltage | 230 V. |
Rated power output | 350 W.Manufacturer guidanceMax power consumption. |
Rated power output (per channel rms) | 75 W at 132 Ohms. |
Controls | |
Display type | LEDs mounted on front panel. |
Display the following conditions | OK, fault, 10% and 100%. |
Enclosure | |
Material | Steel. |
Colour | Black. |
Ingress protection (minimum) | IP30.Guidance for specification option: As a system. |
Mounting method | Mainframe. |
Supply | IEC 6 A filtered connector. Manufacturer guidanceMains supply unit. |
Current | 60 mA per amplifier. Manufacturer guidanceStandby current. |
Power consumption | 24 W. Manufacturer guidanceStandby power consumption. |
Voltage supply | 22—28 V d.c. |
Total weight: | 3.1 kg. |
Mains | 230 V. Guidance for specification option: + 10%/-15% 50/60 Hz. |
TotalWattage | 75 Watt. Manufacturer guidanceWatt amplifier. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
