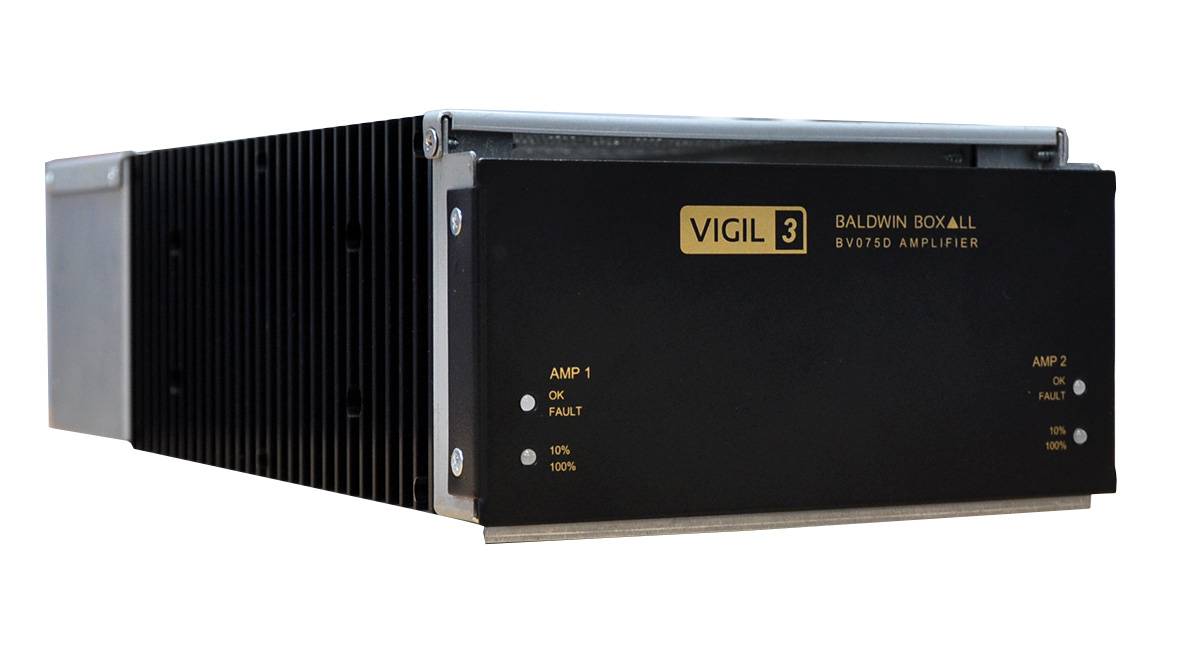

BV075D amplifier
Verified by manufacturer 11 days ago
VIGIL3 Dual 75 Watt amplifier.
Description
VIGIL3 amplifier with floating transformerless technology. Each amplifier weighs 58% less when compared on a Watt-for-Watt basis. Up to three amplifier units can be housed in a single 2U rack space.
Features and benefits:
- Light weight.
- Built-in power supply.
- Amplifier includes sleep mode which can reduce power usage, backward compatible.
- Amplifiers in unit: 2 x 75 W.
General information
Color | Black |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 311 mm |
Width | 142 mm |
Height | 75 mm |
Warranty description | Seven year Guidance for specification option: Baldwin Boxall warrants all product manufactured by itself for a period of seven years from date of invoice. |
Uniclass | |
CAWS | W53/115 Emergency voice communication systems |
SKU Code | BV075D |
Specification data - Voice alarm power amplifiers
Classification data | |
Standard | To BS EN 54 and BS 5839. |
Rated voltage | 100 V. |
Rated power output | 175 W. Manufacturer guidanceMax power consumption. |
Rated power output (per channel rms) | 75 W at 132 Ohms. |
Controls | |
Display type | LEDs mounted on front panel. |
Display the following conditions | OK, fault, 10% and 100%. |
Enclosure | |
Material | Steel. |
Colour | Black. |
Ingress protection (minimum) | IP30. Guidance for specification option: As a system. |
Mounting method | Mainframe. |
Supply | IEC 6 A filtered connector. Manufacturer guidanceMains supply unit |
Current | 60 mA per amplifier. Manufacturer guidanceStandby current |
Power consumption | 12 W. Manufacturer guidanceStandby power consumption |
Voltage supply | 22-28 V d.c. |
Total weight: | 2.3 kg. |
Mains | 230 V. Guidance for specification option: + 10%/-15% 50/60 Hz. |
TotalWattage | 75 Watt. Manufacturer guidanceWatt amplifier. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
 IFC | - | 1 |
