QuadCore® Karrier System

Kingspan Insulated Panels Variant:

Lightweight, mechanically fixed facade system with the appearance of traditional brickwork.

Jump to:
+44 (0)1352 716440 Website

Application

Brick facade system.

Description

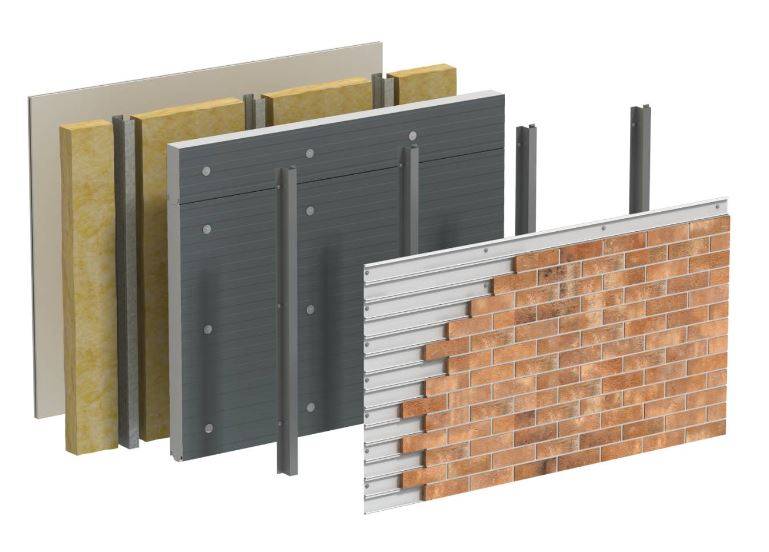

Kingspan BrickClad is a mechanically fixed simple to install facade solution with the appearance of traditional brickwork.


Features and benefits:

  • A variety of prefabricated detailing bricks are available for typical details.
  • Available in a range of colours and finishes.
  • Can be installed on a QuadCore Karrier System, K-Roc Karrier System or K-Roc Slab Insulation System.


Quality and Durability:

The Kingspan BrickClad system is manufactured from the highest quality materials, using state of the art production equipment to rigorous quality control standards, complying with:

  • BS EN ISO 9001 standard, ensuring long term reliability and service life.
  • The Kingspan BrickClad brick slips are CE marked to EN 14411: 2016.


Certification and Testing:

BrickClad® brick slips are a ceramic material and therefore classified as A1 in accordance with EN 13501-1 without further testing as outlined in EU Commission Decision 96/603/EC.


Magnelis® Omega Support Rail and Magnelis® Steel Cassette Profile are steel profiles with an inorganic coating and therefore classified as A1 in accordance with EN 13501-1 without further testing as outlined in EU Commission Decision 96/603/EC.


For further information on components used in systems or assemblies please contact our Tech-eXchange team.


Kingspan BrickClad® has been tested in accordance with CWCT ‘Standard for systemised building envelopes’ assessing:

  • Air permeability.
  • Watertightness - static pressure and dynamic pressure.
  • Wind resistance - serviceability and safety.
  • Impact resistance.


Kingspan BrickClad® has been tested in various configurations. For information on CWCT results for specific rainscreen sub-structures please contact our Tech-eXchange team.


Warranty:

Kingspan BrickClad® warranty covers manufacturing defects for a period of 6 years subject to project-specific information for:

  • Kingspan BrickClad®.
  • Magnelis® Steel Cassette Profile.
  • Omega Support Rail.
  • SureClad® Aluminium Support System.

General information

Color

Brown

Beige

Cream

Black

Grey

Material

Brick

Steel

Guidance for specification option:

Magnelis steel.

Stainless steel

Lime

Guidance for specification option:

Lime based mortar.

Shape

Rectangle

Width

215 mm

Guidance for specification option:

Brick face width.

Height

65 mm

Guidance for specification option:

Brick face height.

Warranty description

Six year

Guidance for specification option:

Kingspan BrickClad® warranty covers manufacturing defects

for a period of six years subject to project-specific information

for:

  • Kingspan BrickClad®.
  • Magnelis® Steel Cassette Profile.
  • Omega Support Rail.
  • SureClad® Aluminium Support System.

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Thermal insulation

QuadCore® Karrier Panel.

Breather membrane

-

Material

-

Secondary support structure

Magnelis® Omega support rails.

Guidance for specification option:

3000 x 110 x 50 mm (L x W x D).

Cladding panels

-

Material

BrickClad® facade finish on Magnelis® steel cassette profile.

Guidance for specification option:

Magnelis® Steel Cassette Profile: 2400 x 75 x 15 mm (L x W x D).

Panel joints

10 mm mortar joint.

System accessories

None.

Ventialtion bricks.

Stop end bricks.

Factory-formed and site-bonded 90° corner units.

Guidance for specification option:

Various corner angles available on request.

Colour/ Finish

Arnsberg ARNB01.

Arnsberg ARNB02.

Arnsberg ARNB03.

Arnsberg ARNB04.

Arnsberg ARNB05.

Show more

Reaction to fire

To EN 13501-1, Class A1 (BrickClad® brick slips, Magnelis® Omega Support Rail and Magnelis® Steel Cassette Profile).

Guidance for specification option:

Classified as A1 in accordance with EN 13501-1 without further testing as outlined in EU Commission Decision 96/603/EC.

For further information on components used in systems or assemblies please contact Kingspan Tech-eXchange.

Sustainability data

Material

Brick

Steel

Guidance for specification option:

Magnelis steel.

Stainless steel

Lime

Guidance for specification option:

Lime based mortar.

Recyclability

BrickClad® and Magnelis® Steel Cassette Profiles: Fully recyclable.

Guidance for specification option:

Kingspan BrickClad® is produced using natural clay and can be fully recycled using the same processes as traditional bricks where bricks are often crushed and used as hardcore.

Magnelis® Steel Cassette Profiles are made from mild steel with a zinc aluminium-magnesium coating and can be fully recycled using the same processes used for mild steel.

Literature

Kingspan BrickClad Product Data Sheet

Kingspan BrickClad Product Data Sheet

Architectural Facade System Brochure

Architectural Facade System Brochure
