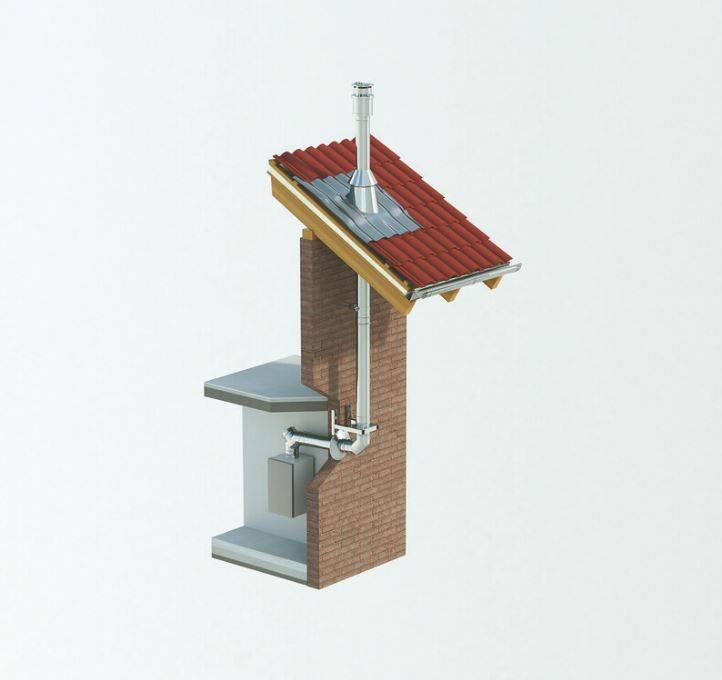

Boiler Installation with External Flue System (UK Plus) - Modular Concentric Flue System
Verified by manufacturer 7 months ago
Modular, high quality stainless steel concentric flue system for balanced flue applications.
Application
Suitable for use with room sealed condensing or non condensing gas or oil appliances in positive or negative pressure.
Description
A modular, high quality stainless steel concentric flue system for balanced flue applications.
It is designed to operate with room sealed condensing or non-condensing gas or oil appliances in positive or negative pressure with continuous operating temperature up to 200°C. Without the seal it can be used on gas fires with a temperature rating of up to T600.
Features and benefits:
- Multi purpose concentric system in lightweight design.
- Suitable for internal and external application.
- Silicone gaskets ensure P1 pressure tightness.
- With viton gaskets suitable also for oil appliances.
- High quality engineered joints secured by locking bands.
- Wide range of installer friendly accessories.
- No thermal bridges.
General information
Color | White Silver |
Finish | Painted Bright |
Material | Stainless steel |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | S90/450 Metal flue pipes T90/370 Metal flue pipes S90/450 Metal flue pipes T90/370 Metal flue pipes |
Specification data - Metal flues and chimneys
Standard | To BS EN 1856-1 and EN 1856-2. |
Construction | Twin wall. |
Material and finish | Stainless steel. |
Accessories and fittings | Appliance connector - 174387. |
OperatingMode | Wet/ dry. |
Pressure | N1 (≤40 Pa); P1 (≤200 Pa). |
Operating temperature | ≤200°C with seal. |
Inner wall | AISI 316L/ EN 1.4404, 0.4 mm thickness. |
Outer wall | AISI 304/ EN 1.4301, 0.4 mm thickness. |
Surface finish | BA (bright annealed). Painted white. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
UK Plus Flue System
