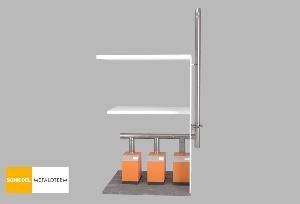

Cascade Boiler Installation with MF Flue System - Modular Twin Wall Insulated Flue System
Verified by manufacturer 4 months ago
Modular twin wall insulated flue/ chimney system, made of stainless steel, incorporating a lip seal gasket.
Application
Suitable for both high and low temperatures, non-condensing and condensing applications with flue gasses in positive and negative pressure.
Description
Cascade boiler installation with flue system is a modular twin wall insulated flue/ chimney system, made of stainless steel, incorporating a lip seal gasket.
Universal flue/ chimney system which is suitable for both high and low temperatures, non-condensing and condensing applications with flue gasses under positive and negative pressure. It is soot/ fire resistant, therefore the system is suited for a wide range of applications such as boilers, stoves and ovens.
The product range also contains a wide variety of silencers for noise reduction.
Features and benefits:
- Universal chimney/ flue system.
- Inner- and outer wall from high grade stainless steel.
- No thermal bridges, uninterrupted insulation from start through to terminal.
- Wide variety of uses including water heaters, central heating, etc.
- Allows free thermal expansion.
- Fast-build system without the need of sealant.
- Compatible with Metaloterm® ME and UE.
- High density and high quality insulation.
- Incorporates a lip seal gasket.
- Lightweight elements.
- Soot/ fire resistant.
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | S90/450 Metal flue pipes T90/370 Metal flue pipes S90/450 Metal flue pipes T90/370 Metal flue pipes |
SKU Code | 161164, 161177, 160902, 161687, 160907, 161420, 161977, 161965, 162738, 162623, 162035, 164964, 161941, 162545, 162509 |
Specification data - Metal flues and chimneys
Classification data | |
Standard | To BS EN 1856-1 and EN 1856-2. |
Construction | Twin wall. |
Insulation | Integral, mineral wool. |
Material and finish | Stainless steel. |
Accessories and fittings | ME Inspection point 100 mm - 161164. ME drain point 100 mm - 161177. ME5010 - 160902. MET871020 87 Tee 100 branch 200 body - 161687. ME5020 - 160907. MERBK10 Tee cap w/ drain - 161420. MFA20 - 161977. MF5020 500 mm length - 161965. MFT87 - 162738. MFRBK20 Tee cap w/ drain - 162623. MFAPO Top plate - 162035. Cantilever arms - 164964. MF 1 m 200 mm - 161941. MF Wall Band adjustable 190–300 - 162545. Top stub - 162509. |
OperatingMode | Dry/ wet. |
Pressure | N1/P1/H1. |
MaximumWorkingPressure | 5000 Pa. |
Operating temperature | 450°C (negative pressure - N1 applications). 200°C (positive pressure - P1/H1 applications). Manufacturer guidanceMaximum. |
Inner wall | AISI 316L/EN 1.4404. |
Outer wall | AISI 304/EN 1.4301. |
Sealant | Elastomer. Guidance for specification option: Where flue gas temperatures exceed 200°C, sealants as well as the cap and door seals have to be removed before installation. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | Can be recycled |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
ME Flue System
Metaloterm® MF
