Boardwalk Heritage Non-Slip Decking - Non-Slip Decking

Verified by manufacturer 2 months ago

Gripsure (UK) Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • PEFC

    PEFC

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • TRADA

    TRADA

    Certificate type

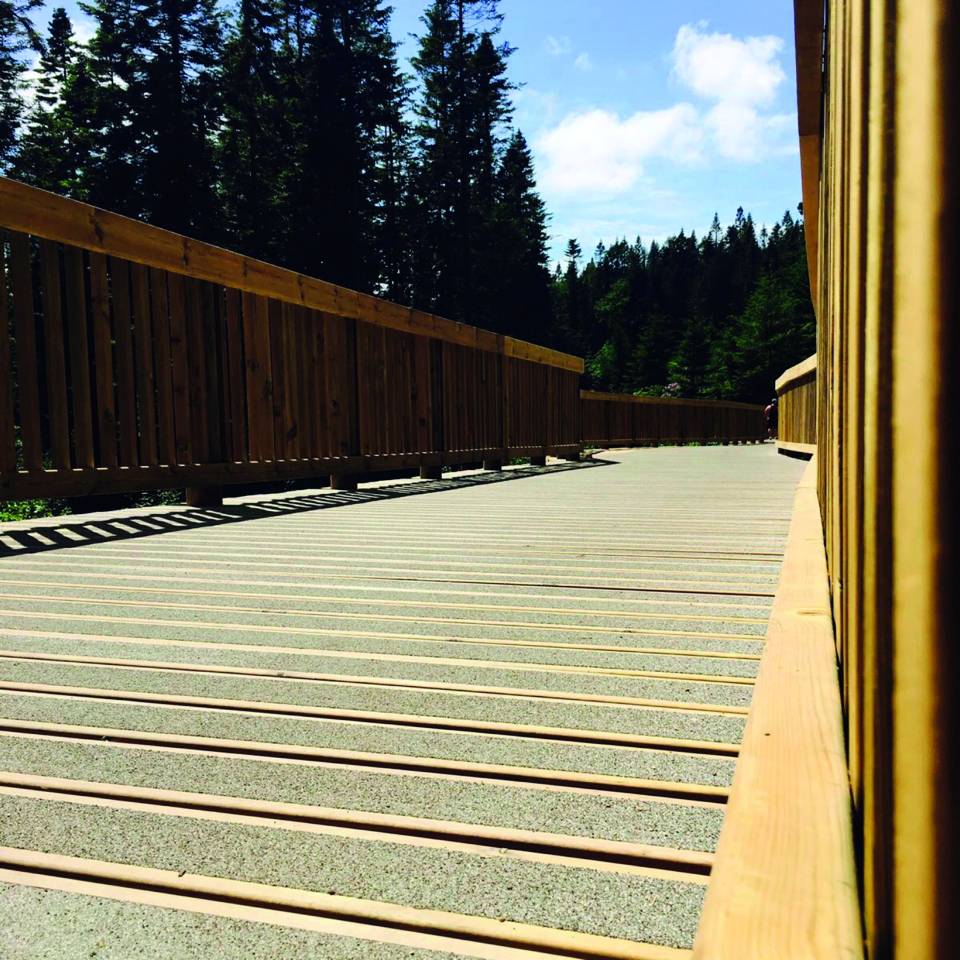

Redwood timber decking board with a central anti-slip aggregate strip, achieving a great look whilst being exceptionally slip-resistant.

Jump to:
+44 (0)1726 844616 Website

Application

Suitable for applications requiring high slip resistance including rural boardwalks, public gardens, disabled access platforms, walkways, balconies, steps and ramp.

Description

Redwood timber decking board with a central 0.5–1.4 mm double washed Guyanan calcined bauxite aggregate anti-slip insert strip.


Features and benefits:

  • Modern appearance.
  • High level slip resistance.
  • Independently tested to BS 7976.
  • Made from high-quality slow grown Redwood timber, with smaller live knots.
  • Close grain of the timber provides good working properties for machining to profile and is less liable to splitting or cracking.
  • The moisture content and cell structure of the Redwood timber allows better penetration of the preservative treatment.
  • Low maintenance, no further preservative treatment is necessary.
  • Can be stained or painted.
  • Vacuum/ pressure treated to meet the requirements of Use Class 3.2 (BS EN 335), which gives an expected in service life of 15-years.
  • Also available with preservative treatment to Use Class 4 for an expected in service life of 25 years and a preservative treatment that complies with the Highways Agency Sector 4 Scheme which gives an expected life of 30 years.
  • Pressure washable.
  • Operated to the United Kingdom Slip Resistance Group (UKSRG).


Execution:

  • Detailed installation and maintenance instructions are available: consult manufacturer for details.
  • Fixing: The manufacturer recommends that Gripsure Boardwalk is fitted using Spax Wirox C4 decking screws.

General information

Color

Green

Guidance for specification option:

Pale green, almost clear fading to a warm honey colour before eventually turning silver grey.

Finish

Smooth

Anti-slip

Material

Wood

Timber

Guidance for specification option:

Slow grown Scandinavian Vth grade Redwood timber.

Shape

Rectangle

Length

2400 mm

3000 mm

3600 mm

4200 mm

4500 mm

Show more

Width

145 mm

Height

28 mm

32 mm

47 mm

Warranty description

15 year

Guidance for specification option:

For non-slip aggregate inserts.

30 year

Guidance for specification option:

15 - 30 years for timber.

Manufacturer guidance

35 year.

Uniclass

Pr_25_71_97_78 Softwood deck boardsPrimary

CAWS

Q55/380 Deck boards

Specification data - Softwood deck boards

Standard

To EN 350.

Third-party certification

FSC®, PEFC, DeckMark; DeckMark+.

Species

Slow grown Scandinavian Vth grade Redwood timber.

European Redwood.

Profile

Smooth deck board with one 100 mm-wide anti-slip aggregate insert.

Finished size

-

Section

145 x 28 mm.

145 x 32 mm.

145 x 47 mm.

Length

2400 mm.

3000 mm.

3600 mm.

4200 mm.

4500 mm.

4800 mm.

Bespoke.

Guidance for specification option:

A bespoke length cutting service is available, consult manufacturer for details and insert requirements.


Finish as delivered

-

Preservative treatment

As standard.

Guidance for specification option:

Vacuum/ pressure treated.

Preservative treatment for Sector 4.

Guidance for specification option:

Complies with the Highways Agency Sector 4 Scheme.

Preservative treatment for Use Class 4.

Guidance for specification option:

For external timbers used in ground or fresh water contact.


Flame-retardant treatment

Required.

Not required.

Applied finish

Oiled.

Stained.

Pendulum test value (PTV, to BS 7976: 2002)

98.

Guidance for specification option:

(minimum).

Aggregate polished stone value (PSV)

70.

Colours

Green.

Aggregate inserts

1 x 100 mm light grey bauxite aggregate inserts.

Strength grade

C16.

C24.

Fixings

316 Grade stainless steel deck screws – 10 g x 63 mm.

316 Grade stainless steel deck screws – 10 g x 75 mm.

316 Grade stainless steel deck screws – 12 g x 100 mm.

316 Grade stainless steel deck screws – 12 g x 150 mm.

Sub frame

C16.

C24 TDCA guidelines.

Slip resistance

98.

Durability Class

To EN 350, Class 3.

Maximum live load

5 kN/m².

Load

1.4 kN.

Deflection

3 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

1 tonne of carbon per 1000 kg of timber.

Recyclability

100%

Manufacturer guidance

Can be removed and sent off site through a general waste skip where the products will then be segregated at a recycling centre where timber is used for biofuel.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Guidance for specification option:

Natural product.

Third party certifications

QA Certificate

QA Certificate

Gripsure DeckMark® Certificate

QA Certificate

QA Certificate

Gripsure DeckMark® Plus Certificate

PEFC

PEFC

Gripsure PEFC™ Certificate - BMT-PEFC-1638

ISO 9001 Quality Management

ISO 9001 Quality Management

QMS ISO 9001

TRADA

TRADA

TDUK Member Certificate
