Accoya® Non-Slip Decking - Non-Slip Decking

Verified by manufacturer 24 days ago

Gripsure (UK) Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • FSC

    FSC

    Certificate type

  • PEFC

    PEFC

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • TRADA

    TRADA

    Certificate type

Softwood decking made with Accoya® wood with two non-slip inserts.

Jump to:
+44 (0)1726 844616 Website

Application

Suitable for a variety of applications including commercial decks, access ramps, pedestrian areas, marine applications, hotels and restaurants.

Description

A high-performing, sustainable anti-slip deck board made from modified softwood timber that will not warp, swell or be affected by fungi, water uptake or rot.


Features and benefits:

  • Accoya® wood will not warp, split, swell or be affected by fungi, water uptake or rot.
  • Low maintenance, no further preservative treatment is necessary.
  • No additional treatment is required for any cuts, notches or drill holes.
  • Accoya® wood is highly durable.
  • 60 year service life.


Execution:

  • Detailed installation and maintenance instructions are available: consult manufacturer for details.
  • Fixing: Stainless steel decking screws (A2 or A4) must be used. When using bearers impregnated with a pigment, isolate the Accoya® deck boards from the bearers.

General information

Color

Beige

Finish

Smooth

Anti-slip

Material

Timber

Guidance for specification option:

Modified timber.

Shape

Rectangle

Length

2400 mm

3000 mm

3600 mm

4200 mm

4500 mm

Show more

Width

142 mm

Height

22 mm

Warranty description

50 year

Guidance for specification option:

50 years for timber when used above ground.

25 year

Guidance for specification option:

25 years for timber when used in ground or fresh water.

15 year

Guidance for specification option:

15 years for non-slip aggregate inserts.

Uniclass

Pr_25_71_97_78 Softwood deck boardsPrimary

CAWS

Q55/380 Deck boards

Specification data - Softwood deck boards

Standard

To BS 7976.

Third-party certification

FSC®, DeckMark, DeckMark+.

Species

Radiata Pine.

Accoya.

Profile

Smooth deck board with two anti-slip aggregate inserts.

Finished size

-

Section

142 x 22 mm.

Guidance for specification option:

Other sizes available upon request.

Length

2400 mm.

3000 mm.

3600 mm.

4200 mm.

4500 mm.

4800 mm.

Bespoke.

Guidance for specification option:

A bespoke length cutting service is available, consult manufacturer for details and insert requirements.

Finish as delivered

-

Preservative treatment

Acetylation.

Flame-retardant treatment

Required.

Guidance for specification option:

A factory applied process to achieve EURO class B is available upon request.

Not required.

Applied finish

Oiled.

Stained.

Pendulum test value (PTV, to BS 7976: 2002)

85.

Guidance for specification option:

(minimum).

Aggregate polished stone value (PSV)

70.

Colours

Light brown.

Aggregate inserts

2 x 6 mm light grey bauxite aggregate inserts.

Strength grade

C16.

C24.

Fixings

316 Grade stainless steel deck screws – 10 g x 63 mm.

316 Grade stainless steel deck screws – 10 g x 75 mm.

316 Grade stainless steel deck screws – 12 g x 100 mm.

316 Grade stainless steel deck screws – 12 g x 150 mm.

Sub frame

C16.

C24 TDCA guidelines.

Fire resistance

To ASTM E84, C.

To EN 14915, D.

Density

515 kg /m³.

Hardness

2,4 kgf/mm² (Brinel).

Moisture content at time of fixing

3 - 5% at 65% relative humidity, 20 °C.

Slip resistance

85.

Bending strength

To EN 408, 40 N/mm².

Durability Class

To EN 350, Class 1.

Maximum live load

5 kN/m².

Load

1.4 kN.

Deflection

3 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

New Zealand

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

27.4 kg CO₂ eq/m²

Self declared

Manufacturer guidance

1 tonne of carbon per 1000 kg of timber.

Recyclability

100%

Manufacturer guidance

Can be removed and sent off site through a general waste skip where the products will then be segregated at a recycling centre where timber is used for biofuel.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Guidance for specification option:

Natural product.


Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

EMS ISO 14001

QA Certificate

QA Certificate

Gripsure DeckMark® Certificate

QA Certificate

QA Certificate

Gripsure DeckMark® Plus Certificate

FSC

FSC

Gripsure FSC® Certificate - C109573

PEFC

PEFC

Gripsure PEFC™ Certificate - BMT-PEFC-1638

ISO 9001 Quality Management

ISO 9001 Quality Management

QMS ISO 9001

Alcumus SafeContractor

Alcumus SafeContractor

Gripsure Safe Supplier Certificate

TRADA

TRADA

TDUK Member Certificate

Literature

Gripsure Standard Detail Drawings

Gripsure Standard Detail Drawings

Gripsure Non-Slip Decking Warranty Brochure

Gripsure Non-Slip Decking Warranty Brochure

Gripsure Accoya® Decking Brochure

Gripsure Accoya® Decking Brochure

Accoya® Decking EPD

Accoya® Decking EPD

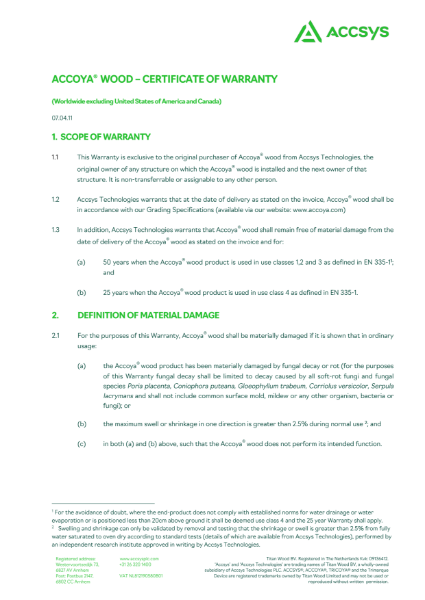

Accoya® Warranty

Accoya® Warranty

The Timber Decking Handbook by TDCA (Timber Decking and Cladding Association)

The Timber Decking Handbook by TDCA (Timber Decking and Cladding Association)

Case studies

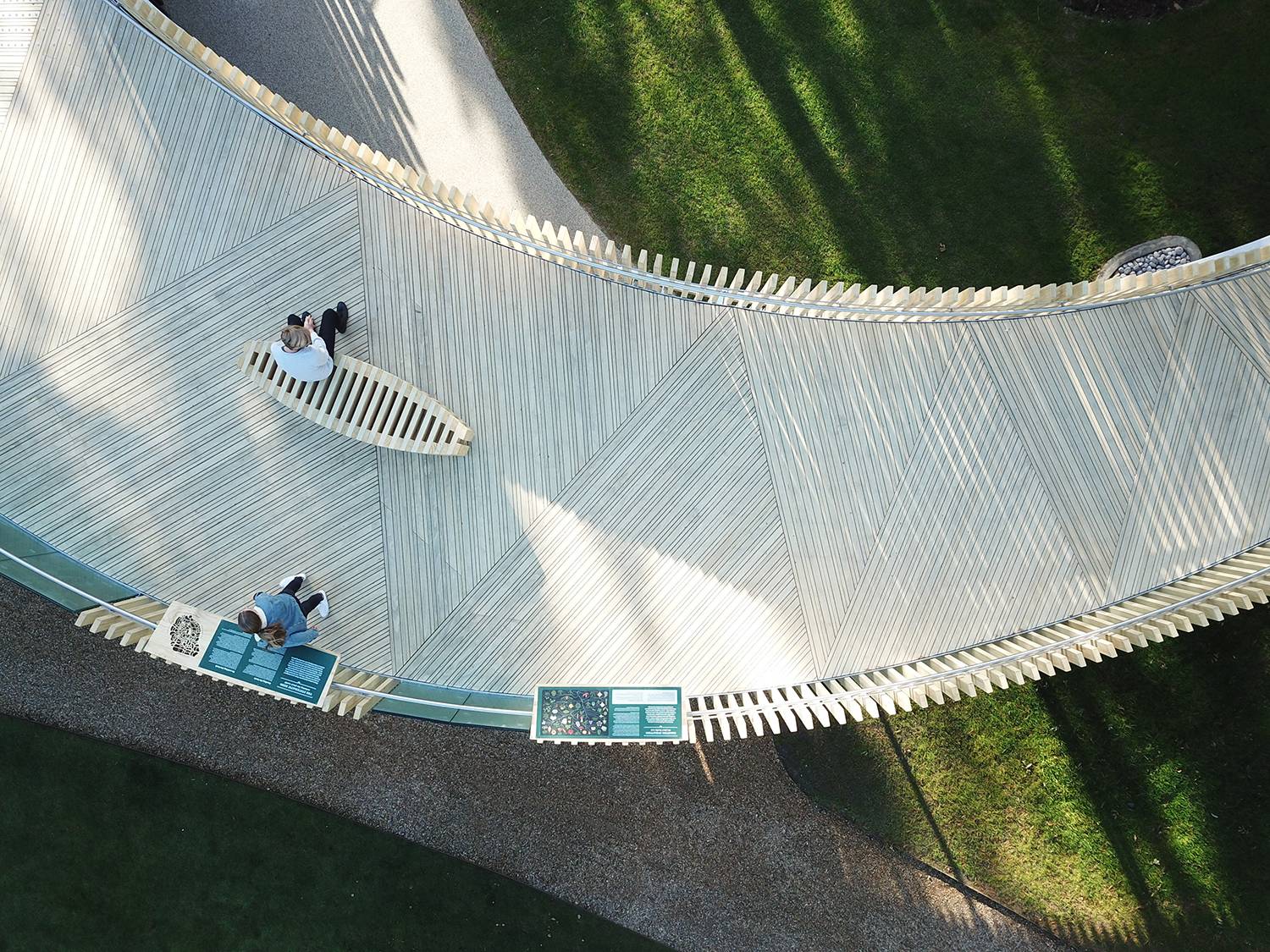

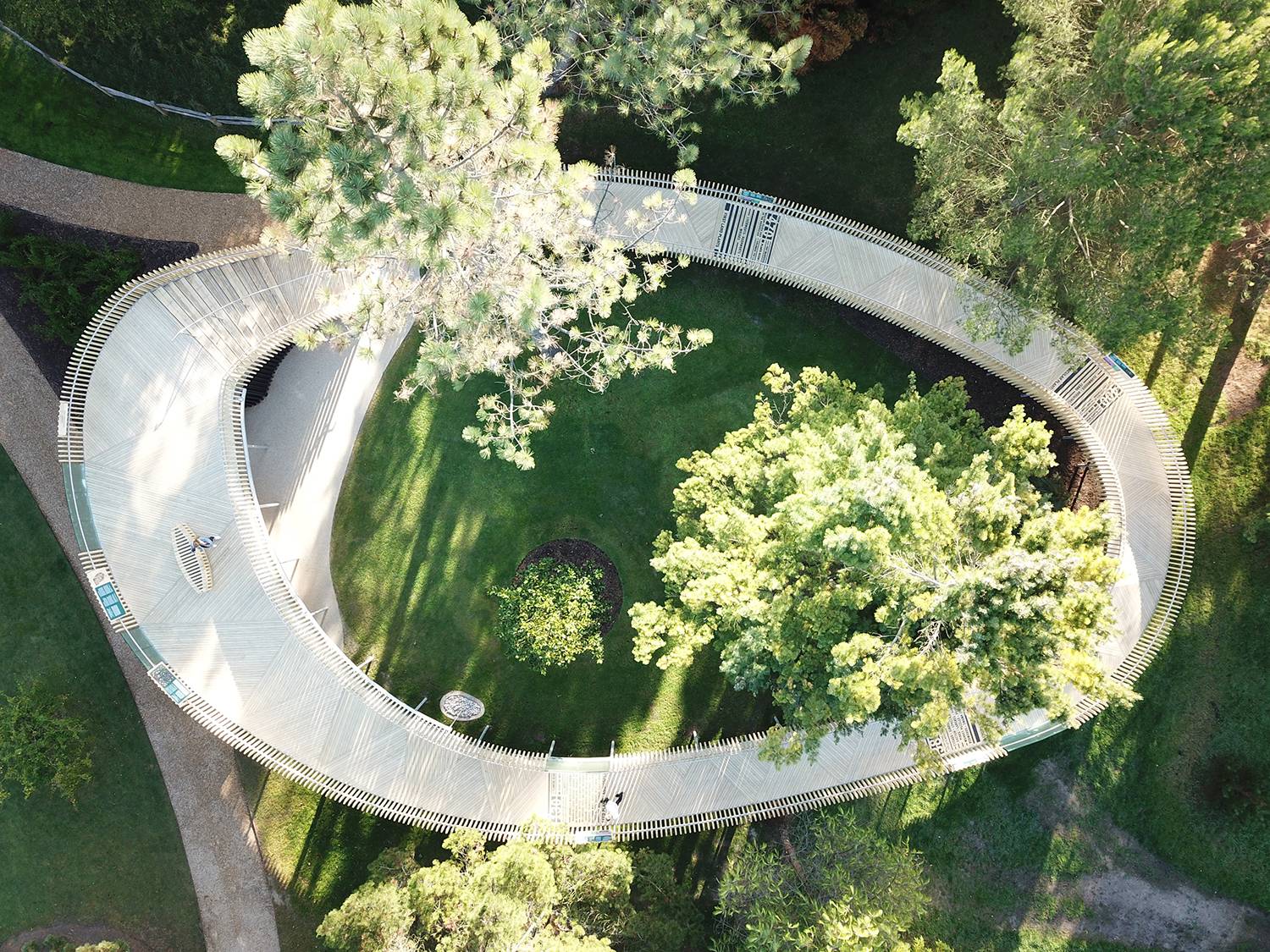

Cambridge University Botanical Gardens | Commercial Non-Slip Decking Case study
