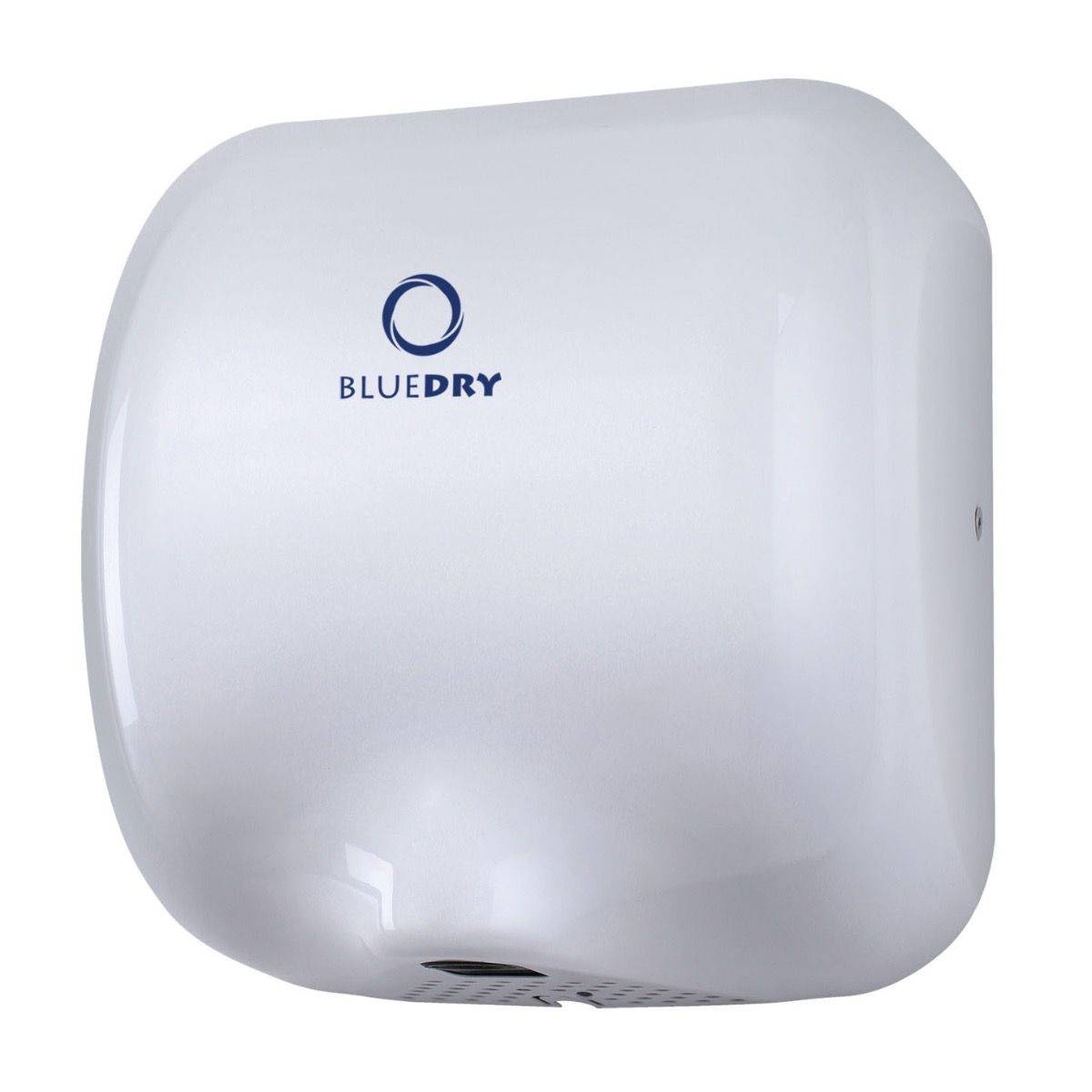

BlueDry Eco Hand Dryer - Compact Jet Hand Dryer

Verified by manufacturer 3 months ago

White - HD-BD1000W

FW3 Variant:

High-speed, eco-friendly, hands-under hand dryer.

Jump to:
BOS
+44 (0)1823 672 970 Website

Application

Hand dryer for washrooms, bathrooms and toilets.


  • Suitable for low, medium and high usage.
  • Suitable for the following locations in particular: offices, schools/colleges/universities, bars/restaurants/hotels, hospitality settings, retail settings, airports, and cinemas.

Description

A high-speed, eco-friendly, hands-under hand dryer.


This hand dryer model is actually our best-seller across the UK!


Available in white, brushed stainless steel and polished stainless steel.


Features and benefits:

  • Fast drying: 8-10 second dry times.
  • Low energy: uses just 550-1800 W energy.
  • Heating control: option to turn the heater on/off for this hand dryer - in warmer temperatures, this allows for the heater to be switched off to save energy, and more money.
  • Low noise: 74 dBA @ 1m.
  • Modern design: sleek modern design, with a blue LED light to guide the user to the airflow.
  • Vandal proof: smooth, sturdy hand dryer shell with no seams, ensuring the hand dryer is vandal resistant.
  • IPX1 Rating.
  • Guarantee: 2-year warranty

General information

Color

Silver

Guidance for specification option:

Silver or chrome.

White

Finish

Brushed

Polished

Powder-coated

Material

Stainless steel

Shape

Rectangle

Other

Length

170 mm

Guidance for specification option:

Depth.

Width

290 mm

Height

320 mm

Warranty description

Two year

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Product range

All Products
Hand Dryers / Hands Under Hand Dryers

Specification data - Hand dryers

Form

High-velocity air.

Operation

Automatic.

Guidance for specification option:

Sensor range: 50–150 mm.

Timer

Fixed.

Guidance for specification option:

Consult manufacturer for details.

Electrical supply

-

Power rating

1.8 kW (hot); 0.55 kW (cold).

Rated operational voltage (Ue)

220–240 V a.c.

Frequency

50 Hz.

Final connection

Guidance for specification option:

Insert requirements. Consult manufacturer's installation manual for details.

Body

-

Material

Stainless steel grade 304.

Finish

Powder-coated.

Colour

White.

Ingress protection (minimum)

IPX1.

Guidance for specification option:

Isolation class I.

Dimensions

320 x 290 x 170 mm

Guidance for specification option:

Height x width x depth.

Noise level at 1 m (maximum)

74 dB(A).

Features

Hands only.

Integral accessories

Heater element.
Blue LED.

Guidance for specification option:

  • Heater element can be switched on or off.
  • Blue LED light guides the user to the airflow and adds a cool, modern touch.

Drying time

8–10 seconds.

Air speed

60 m/s.

Weight

4.4 kg.

Motor type

Brush, 25 000 rpm.

Approvals

UKCA marked; CE marked; CCC marked; UKAS ISO 9001 Quality Management; ETL listed; TÜV approved.

Guidance for specification option:

Consult manufacturer for further details.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Material

Stainless steel

Recyclability

Consult manufacturer for more details.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

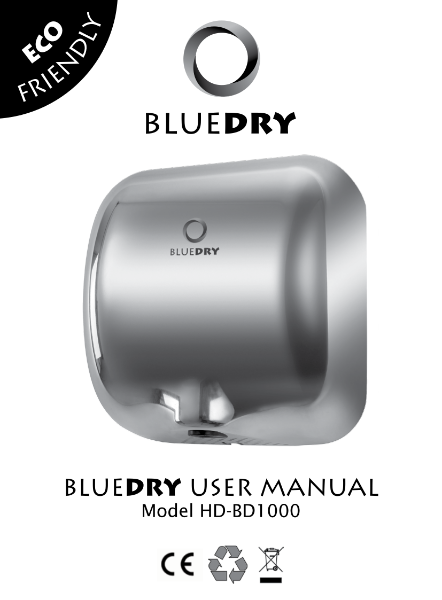

BlueDry Eco (HD-BD1000) User Manual

BlueDry Eco (HD-BD1000) User Manual

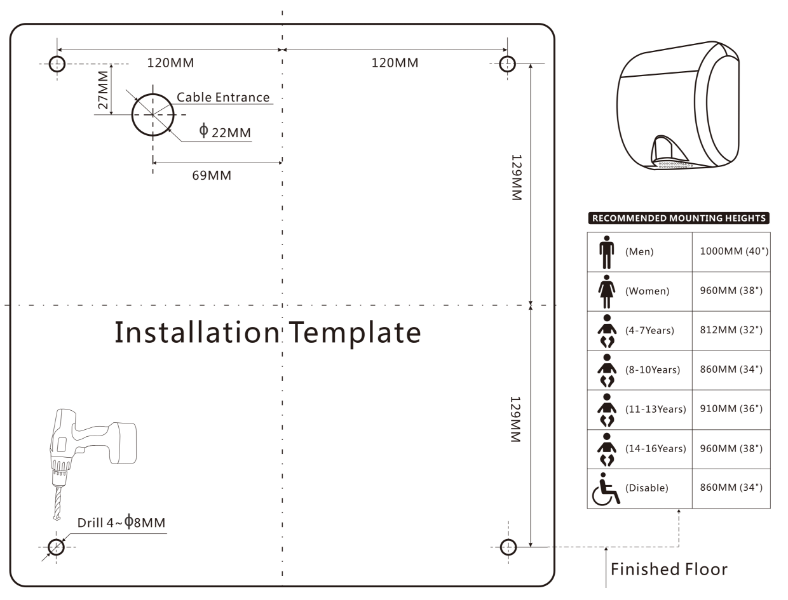

BlueDry Eco (HD-BD1000) Installation Template

BlueDry Eco (HD-BD1000) Installation Template

BlueDry Brochure

BlueDry Brochure
