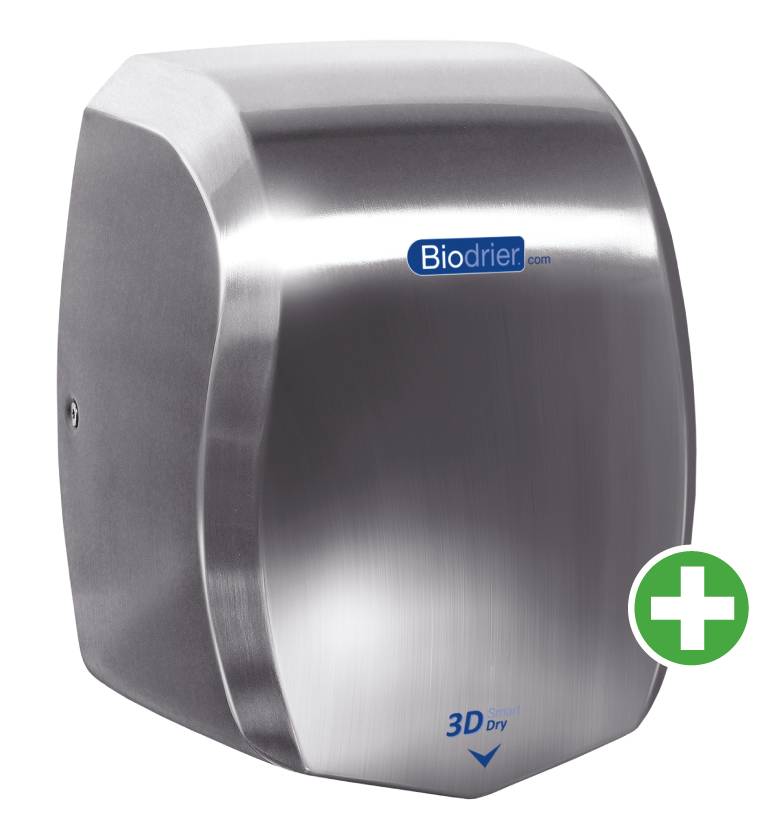

Biodrier 3D Smart Plus Hand Dryer - Intelligent Temperature Adjustment Dryer

Verified by manufacturer 2 months ago

FW3

Hygienic, high speed, hand dryer with advanced four-layer air purification.

Jump to:
BOS
+44 (0)1823 672 970 Website

Application

Hand dryer for washrooms, bathrooms and toilets.


  • Suitable for low, medium and high usage.
  • Suitable for the following locations in particular: offices, schools/colleges/universities, bars/restaurants/hotels, hospitality settings, retail settings, airports, and cinemas, or any noise-sensitive environments.

Description

A new and improved hand dryer model: increased hygiene, whilst maintaining it's high-speed and durability. This hand dryer suitable for high-traffic washrooms and bathrooms where hygiene is key.


Features and benefits:

  • Fast drying: under 10 seconds.
  • Low energy: uses just 200-800 W energy.
  • Further energy saving: automatically adjusts the hand dryer heater element, depending on the ambient temperature in the room. This means that during cold seasons, users have a comfortable hand drying experience, and in the warmer seasons, energy consumption can be reduced, saving money with this hand dryer.
  • Guarantee: Five-year warranty with an unrivalled three years rapid-response, on-site breakdown cover.
  • Ultra- hygienic: Four layers of air purification, with this hand dryer, including a Triple HEPA Grade 13 filter - (removing 99.9% bacteria to ensure germ-free air), sterilization via a UV lamp, and a photocatalyst to product clean air.
  • Further air sterilization:  after the drying process, the hand dryer will automatically sterilize the air from the environment with low noise (55dB) and low power (11W) to further increase hygiene standards.
  • Long-lasting: brushless hand dryer motors are superior, with an increased life-span, less maintenance required, and less energy usage.
  • Low noise: as low as 65 dBA @ 1 metre.
  • IPX2 rating.
  • High quality: this hand dryer is burn proof & rust-proof.
  • Anti-fingerprint coating: to increase washroom standards further.
  • Environmentally friendly: All Biodriers use 90% less energy than conventional hand dryers.

General information

Color

Silver

Finish

Satin

Stainless steel

Material

Stainless steel

Shape

Rectangle

Length

154 mm

Guidance for specification option:

Depth.

Width

228 mm

Height

278 mm

Warranty description

Five year

Guidance for specification option:

3 years on-site warranty.

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Product range

All Products
Hand Dryers / Hands Under Hand Dryers

Specification data - Hand dryers

Form

High-velocity air through HEPA filter and advanced air purification.

Operation

Automatic.

Guidance for specification option:

Infrared, self-adjusting.

Timer

Fixed.

Guidance for specification option:

25 seconds auto shut-off.

Electrical supply

-

Power rating

0–0.6 kW, auto-adjusting.

Guidance for specification option:

Intelligent heater power adjustment depending on ambient temperature:

  • At 10°C or less, heater power = 600 W; total power = 800 W.
  • 10–15°C, heater power = 450 W; total power = 650 W.
  • 15–20°C, heater power = 300 W; total power = 500 W.
  • 20–25°C, heater power = 150 W; total power = 350 W.
  • 25°C or more, heater power = 0 W; total power = 200 W.

Rated operational voltage (Ue)

220–240 V a.c.

Frequency

50 Hz.

Final connection

Guidance for specification option:

Insert requirements. Consult manufacturer's installation manual for details.

Body

-

Material

Stainless steel.

Finish

Satin.

Colour

Natural (silver).

Guidance for specification option:

Silver.

Ingress protection (minimum)

IPX2.

Guidance for specification option:

Isolation class I.

Dimensions

278 x 228 x 154 mm

Guidance for specification option:

Height x width x depth.

Noise level at 1 m (maximum)

65 dB(A).

Features

Hands only.

Integral accessories

Four-layer air purification.

Guidance for specification option:

  1. First layer: Primary filter screen can filter the large particles and hair which are floating in the air.
  2. Second layer: Active carbon will absorb impurities and microorganisms from the air.
  3. Third layer: The particular wavelength of ultraviolet ray will irradiate the airflow to destroy microorganism’s DNA structure and eliminate the pathogenic bacterium.
  4. Fourth layer: The nanometer photocatalyst (TiO2) will be activated by UV rays and produce oxyhydrogen free radical (OH-) to decompose the structure of hazardous substance for restraining the grow and activity of microorganism. Therefore the 3D Smart Dry Plus hand dryer is able to complete sterilizing, air-purifying, deodorizing and remove air pollution at once.

Drying time

<10 seconds.

Air speed

75 or 85 m/s.

Weight

3.3 kg.

Motor type

18 000 rpm, 200 W, BLDCC brushless d.c. motor.

Approvals

UKCA marked; CE marked; UKAS ISO 9001:2008 Quality Management; ETL listed; TÜV approved; SafeContractor approved; WEEE compliant; GreenSpec®.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Material

Stainless steel

Recyclability

Yes, the plastic can be recycled.
