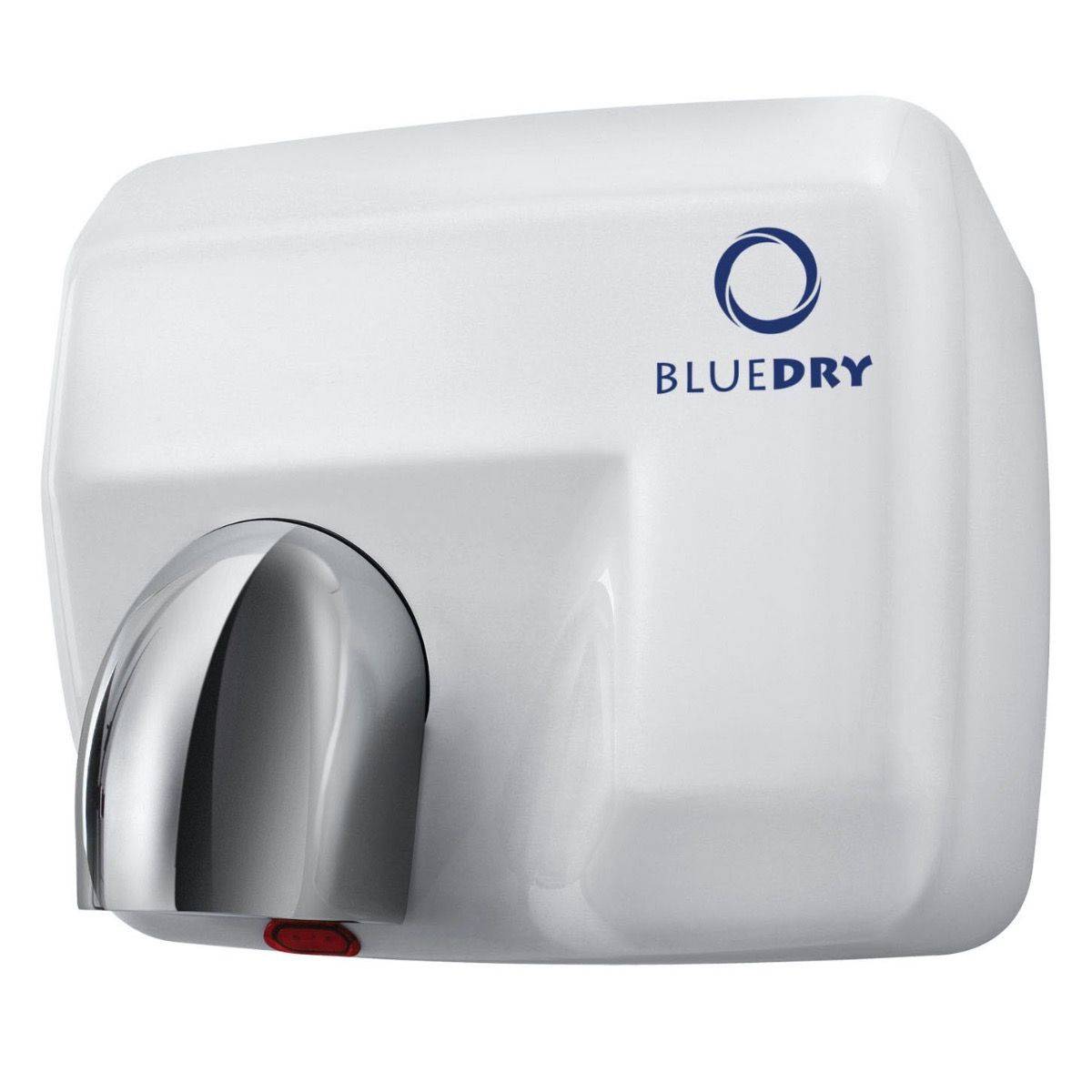

BlueDry Blue Storm Hand Dryer - Classic Nozzle Hand Dryer

Verified by manufacturer 19 days ago

White - HD-BD1004W

FW3 Variant:

Modern, powerful, and durable automatic hand dryer, with fully rotating nozzle.

Jump to:
BOS
+44 (0)1823 672 970 Website

Application

Hand dryer for washrooms, bathrooms and toilets.


  • Suitable for low, medium and high usage.
  • Suitable for the following locations in particular: offices, schools/colleges/universities, bars/restaurants/hotels, hospitality settings, retail settings, airports, and cinemas.

Description

A classic, powerful and reliable automatic face and hand dryer, with fully rotating chrome nozzle.

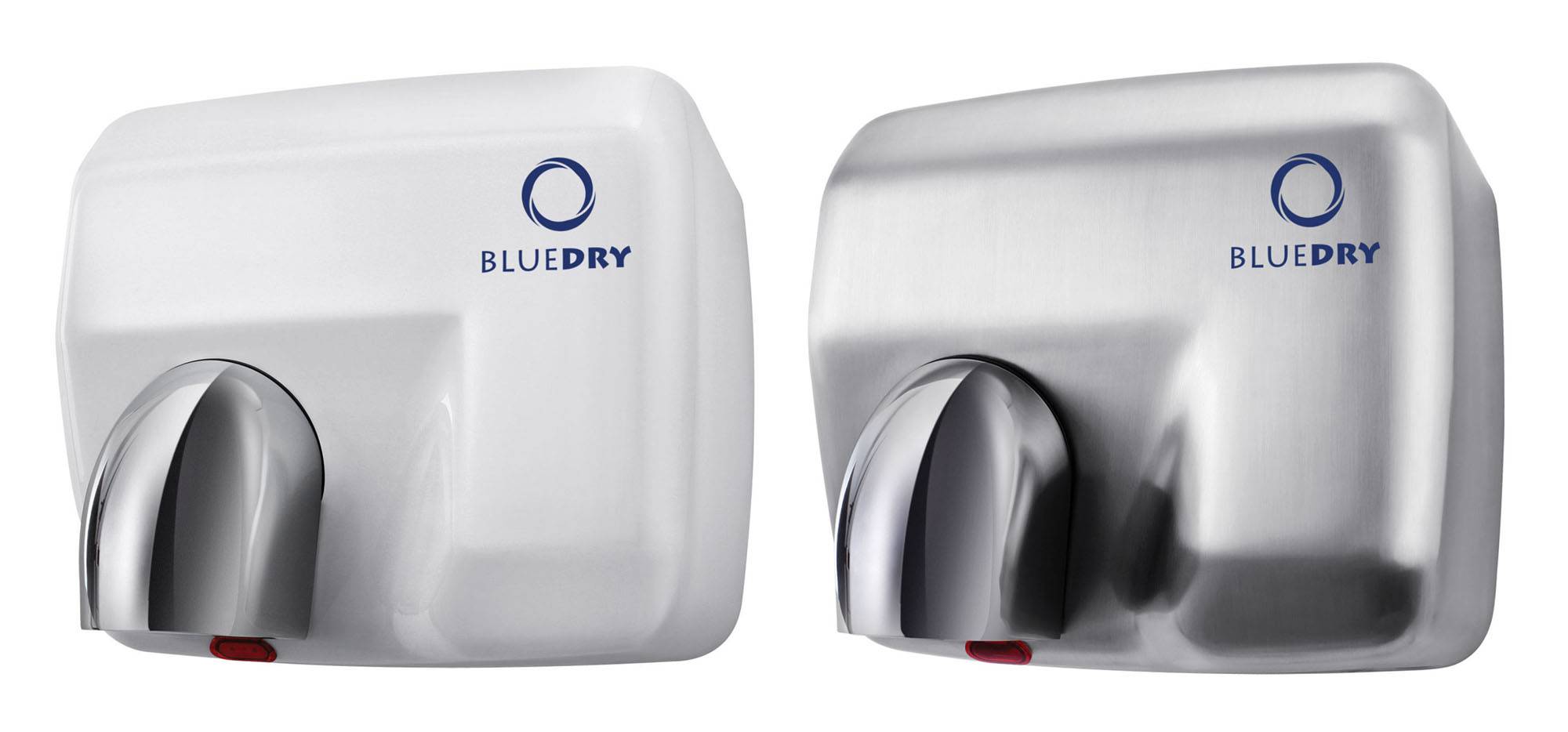

Available in white and brushed stainless steel.


Features and benefits:

  • Fast drying: 15-20 second dry times.
  • Vandal-proof: smooth, sturdy hand dryer shell with no seams, ensuring the hand dryer is vandal resistant.
  • Low noise: just 70 dBA @ 1 m for this hand dryer model.
  • Noise reduction: the base is specially designed to reduce vibrations for a quieter hand drying experience.
  • IPX1 Rating.
  • Modern design: classic, modern hand dryer design, with a blue LED light to guide the user to the airflow.
  • Energy usage: 2300 W.
  • Guarantee: 2-year warranty

General information

Color

Silver

Guidance for specification option:

Silver or chrome.

White

Finish

Brushed

Guidance for specification option:

Shell, excluding nozzle.

Powder-coated

Guidance for specification option:

Shell, excluding nozzle.

Chrome

Guidance for specification option:

Nozzle only.

Material

Stainless steel

Shape

Rectangle

Length

200 mm

Guidance for specification option:

Depth.

Width

270 mm

Height

237 mm

Warranty description

Two year

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Product range

All Products
Hand Dryers / Hands Under Hand Dryers

Specification data - Hand dryers

Form

Warm air.

Operation

Automatic.

Guidance for specification option:

Sensor range: 50–150 mm.

Timer

Fixed.

Guidance for specification option:

Consult manufacturer for details.

Electrical supply

-

Power rating

2.3 kW.

Rated operational voltage (Ue)

220–240 V a.c.

Frequency

50 Hz.

Final connection

Guidance for specification option:

Insert requirements. Consult manufacturer's installation manual for details.

Body

-

Material

Stainless steel grade 304.

Finish

Powder-coated.

Colour

White.

Ingress protection (minimum)

IPX1.

Guidance for specification option:

Isolation class I.

Dimensions

237 x 270 x 200 mm

Guidance for specification option:

Height x width x depth.

Noise level at 1 m (maximum)

70 dB(A) at 2 m.

Features

Hands and face.

Guidance for specification option:

Fully rotating nozzle.

Integral accessories

Chrome nozzle.
Blue LED.

Guidance for specification option:

Blue LED light guides the user to the airflow and adds a cool, modern touch.

Drying time

15–20 seconds.

Guidance for specification option:

Air temperature: 50°C (at a distance of 10 cm, room temperature of 25°C).

Air speed

26 m/s.

Weight

2.5 kg.

Motor type

Brush, 6500 rpm.

Approvals

UKCA marked; CE marked; CCC marked; UKAS ISO 9001 Quality Management; ETL listed; TÜV approved.

Guidance for specification option:

Consult manufacturer for further details.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Material

Stainless steel

Recyclability

Consult manufacturer for more details.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

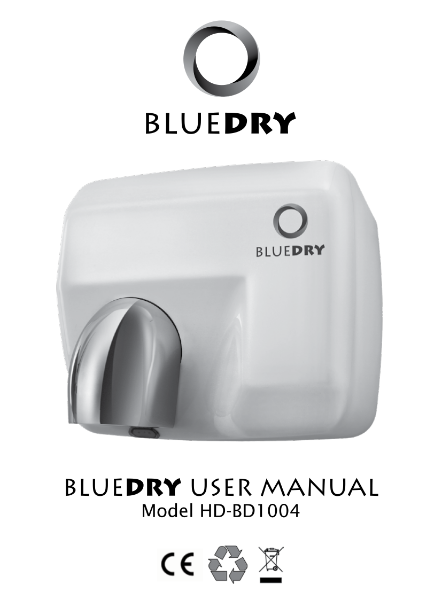

BlueDry Blue Storm (HD-BD1004) User Manual

BlueDry Blue Storm (HD-BD1004) User Manual

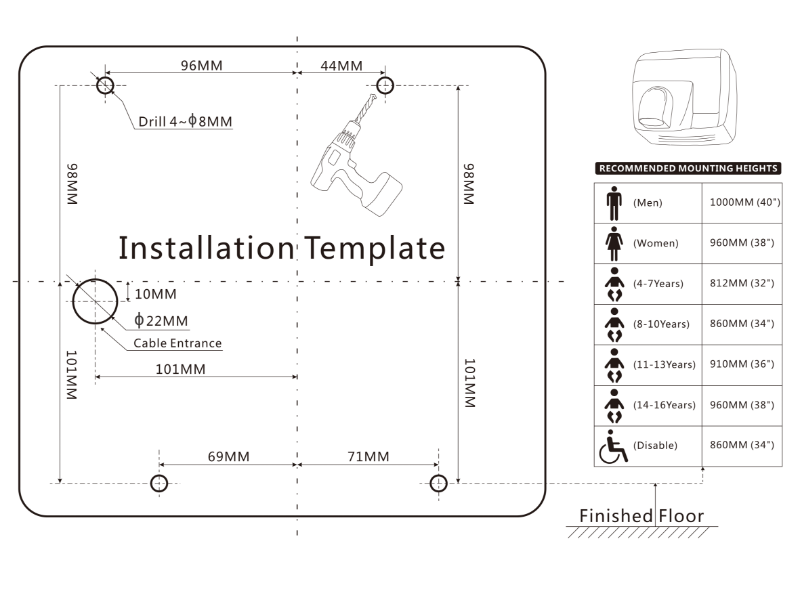

BlueDry Blue Storm (HD-BD1004) Installation Template

BlueDry Blue Storm (HD-BD1004) Installation Template

BlueDry Brochure

BlueDry Brochure
