Birco 150 - Surface Water Drainage
Verified by manufacturer 4 months ago
DR1602000: 0/0 1000 Channel
DR1602000: 0/0 1000 Channel
Low to medium capacity linear drainage system.
Application
- Suitable for all locations as described in BS EN 1433 : 2002 for load classification F900
- Suitable for rail, commercial and industrial projects
Description
Offering an increased flow capacity over the Birco 100, the Birco 150 combines concrete channels with a diverse range of metal coverings to produce a linear drainage solution that is both effective and aesthetically pleasing.
The Birco 150’s water drainage channels are constructed of a robust precast concrete to ensure reliable performance. The channel walls are also reinforced with heavy grade rolled galvanized steel angles cast into the top, increasing durability and ability to handle heavy loads.
With the correct grate application, the Birco 150 can achieve a load classification of F900, making it a solution for rail, commercial and industrial projects. The grates are secured by bolting stainless steel bolts into the threaded steel sockets cast into the channel wall.
Birco 150 comes in a range of grate styles: cast iron slotted grate, cast iron heelsure grate, galvanized steel mesh, galvanized cast iron slotted grate and cast iron solid cover.
Features and benefits:
- Low to medium capacity.
- Robust precast concrete.
- Can withstand loads up to the highest classification.
- Available in five grate options.
General information
Color | Grey Black |
Finish | Powder-coated Galvanized |
Material | Concrete Iron Steel |
Shape | Rectangle |
Length | 500 mm 1000 mm |
Width | 250 mm |
Height | 230 mm 280 mm 330 mm 380 mm 430 mm |
Uniclass | |
CAWS | Q10/180 Drainage channel systems with gratings Q10/30 Linear slot drainage channel system |
Specification data - Drainage channels with gratings
Standard | To BS EN 1433. |
Certification | BSI Kitemark: ISO 14001; ISO 45001; ISO 9001. |
Material | Concrete. |
Gratings | |
Material | Cast iron.Galvanized steel. |
Form | 12 slotted cast iron grate.Guidance for specification option: DR1952100
DR1952200
12 slotted galvanized cast iron grate.Guidance for specification option: DR1970300
Solid cast iron grate.Guidance for specification option: DR1952300
6 heelsure slotted cast iron grate.Guidance for specification option: DR1952400
6 heelsure slotted powder coated cast iron grate.Guidance for specification option: DR1957500

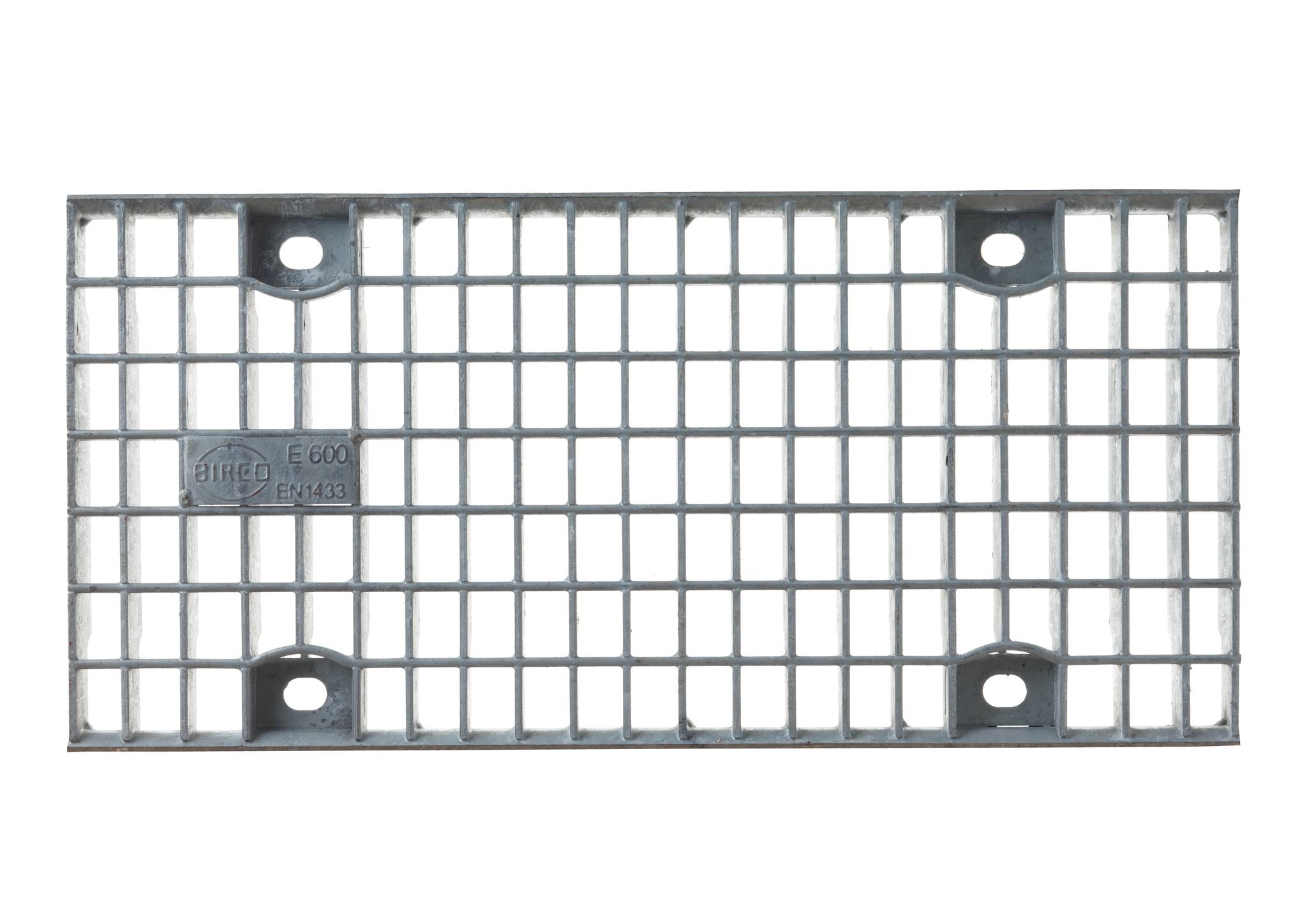

20 x 30 mesh galvanized steel grate.Guidance for specification option: DR1972800
DR1972900
|
Colour | Grey. |
Load class (minimum) | E 600— F 900. |
Channel unit dimensions | |
Width (nominal) | 250 mm. |
Depth (nominal) | 230 mm. |
Length | 1000 mm. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirement. |
Height | 230 mm. |
Apparent density | 2300 kg/m³. |
Water absorption | Grade 2. |
Reaction to fire | Class A1. |
DischargeCrossSection | 16000—46000 mm². |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Concrete Iron Steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 25.9 kg CO₂ eq/kg Self declared Manufacturer guidanceDependent on size, from 26 - 32 |
