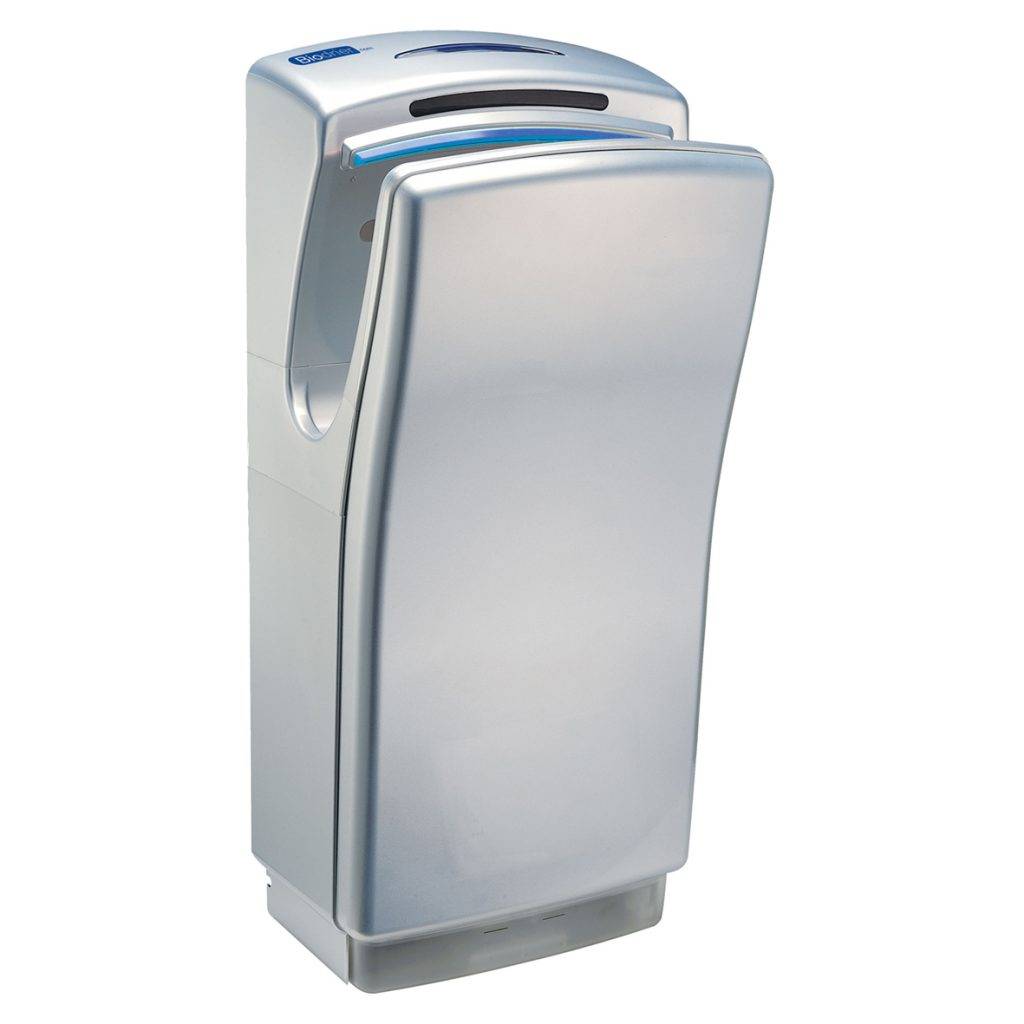

Biodrier Business² Hand Dryer - Hands-In Dryer

Verified by manufacturer 19 days ago

Metallic silver - BB70S

FW3 Variant:

Ultra-high speed hands-in hand dryer for all washrooms.

Jump to:
BOS
+44 (0)1823 672 970 Website

Application

Hand dryer for washrooms, bathrooms and toilets.

  • Suitable for low, medium and high usage.
  • Suitable for the following locations in particular: offices, schools/colleges/universities, bars/restaurants/hotels, hospitality settings, retail settings, airports, and cinemas.

Description

A new and improved hand dryer model: it's a fast, powerful, and ultra-efficient hand dryer, perfect for high-traffic washrooms.

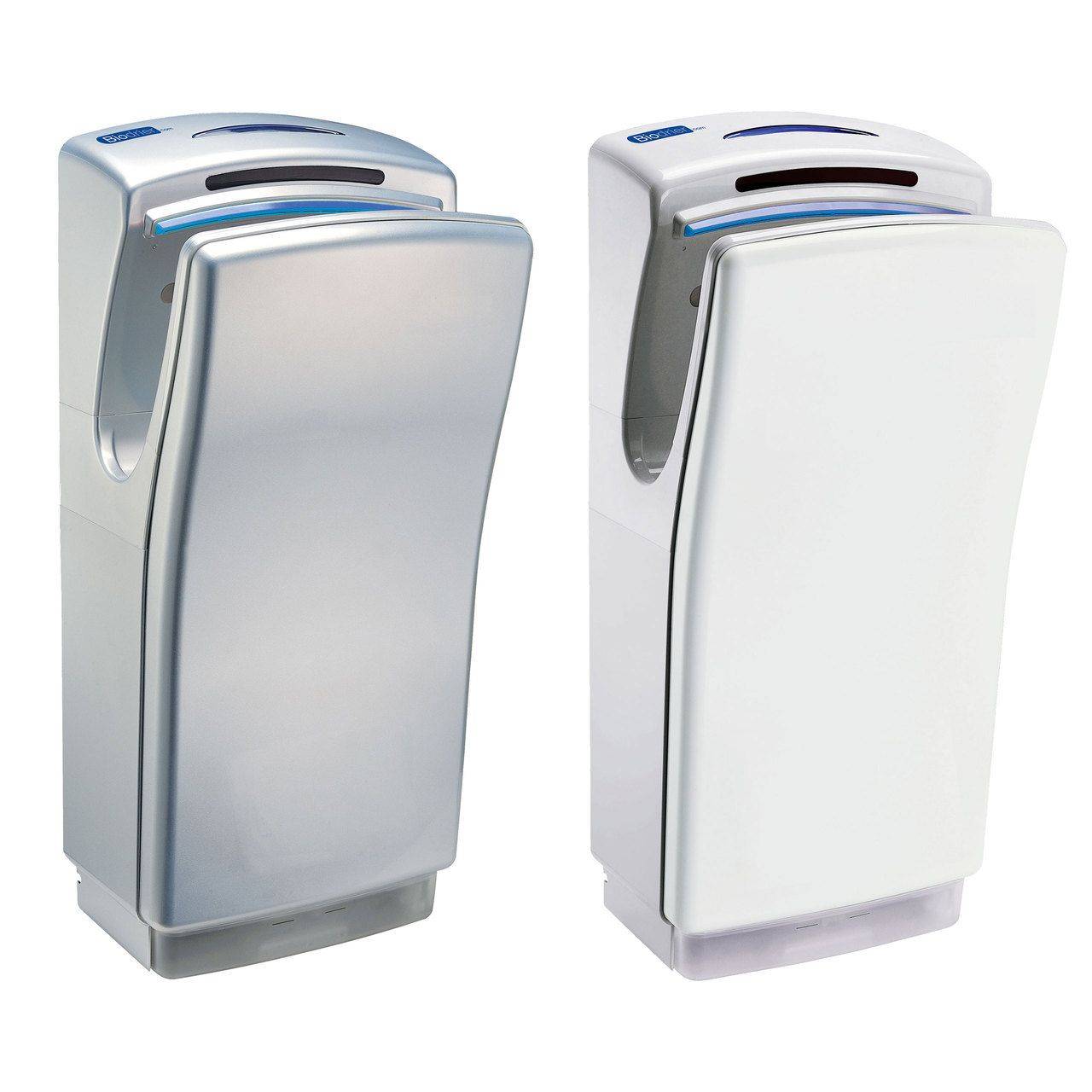

Available in white and silver.


Features and benefits:

  • Fast drying: under 10 seconds.
  • Low energy: uses just 700-1400 W energy.
  • Guarantee: Five-year warranty with an unrivalled three years rapid-response, on-site breakdown cover.
  • Long-lasting: brushless hand dryers motors are superior, with an increased life-span, less maintenance required, and less energy usage.
  • Powerful: uses two powerful jets of air to dry hands.
  • Hygienic: Anti-bacterial filter - removes bacteria to ensure germ-free air.
  • Low noise: 78 dBA @ 1 metre.
  • Heat recovery motor system: heat from the hand dryer motor is used to provide the warm air used to dry hands, reducing energy usage further.
  • IP22 rating
  • Intelligent Display: LED countdown shown on the hand dryer, counting down the time it takes to dry your hands.
  • High Quality: burn proof & rust-proof hand dryer.
  • Accurate Hand Detection: fitted with three infrared sensors to detect hands accurately.
  • Environmentally friendly: All Biodrier hand dryers use 90% less energy than conventional hand dryers.

General information

Color

Silver

White

Finish

Metallic

Anti-microbial

Smooth

Material

Acrylonitrile butadiene styrene (ABS)

Shape

Rectangle

Length

250 mm

Guidance for specification option:

Depth.

Width

300 mm

Height

680 mm

Warranty description

Five year

Guidance for specification option:

3 years on-site warranty

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Product range

All Products
Hand Dryers / Hands In Hand Dryers

Specification data - Hand dryers

Form

High-velocity air.

Guidance for specification option:

Standard (antibacterial filter).

High-velocity air through HEPA filter.

Operation

Automatic.

Guidance for specification option:

Three infrared sensors for accurate hand detection.

Timer

Fixed.

Guidance for specification option:

30 seconds auto shut-off.

Electrical supply

-

Power rating

0.7 kW (heater off); 1.4 kW (heater on).

Rated operational voltage (Ue)

220–240 V a.c.

Frequency

50 Hz.

Final connection

Guidance for specification option:

Insert requirements. Consult manufacturer's installation manual for details.

Body

-

Material

ABS plastics.

Finish

Fireproof ABS, 94V0, PMMA, UC coated.

Colour

Metallic silver.

Ingress protection (minimum)

IP22.

Guidance for specification option:

Isolation class I.

Dimensions

680 x 300 x 250 mm

Guidance for specification option:

Height x width x depth.

Noise level at 1 m (maximum)

78 dB(A).

Features

Hands-in.

Integral accessories

Antibacterial filter.
Moisturising gels (organic ocean breeze fragrance).
CPU with LED display.
Additional heater, operated via concealed switch.

Guidance for specification option:

  • The antibacterial filter is fitted to ensure dust and airborne particles are restricted from entering the internal components and airflow of the dryer. Usually requires replacing every three to six months, depending on usage.
  • Gels moisturise/ sanitise the hands, sanitise the product internally and fragrances the surrounding area whilst in use. Manufacturer from natural sources and chemical-free.

Drying time

<10 seconds.

Air speed

110 m/s.

Weight

8.5 kg.

Motor type

35 000 rpm, IPC brushless d.c. motor.

Approvals

UKCA marked; CE marked; UKAS ISO 9001:2008 Quality Management; ETL listed; TÜV approved; SafeContractor approved; WEEE compliant; GreenSpec®.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Material

Acrylonitrile butadiene styrene (ABS)

Recyclability

Yes, the plastic can be recycled.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Biodrier Business 2 (HD-BB702) Leaflet

Biodrier Business 2 (HD-BB702) Leaflet

Biodrier Business 2 (HD-BB702) User Manual

Biodrier Business 2 (HD-BB702) User Manual

Biodrier Business 2 (HD-BB702) Installation Template

Biodrier Business 2 (HD-BB702) Installation Template

Biodrier Brochure

Biodrier Brochure
