GS-50TB LADDER ROOF ACCESS HATCH

Verified by manufacturer 2 months ago

Access 360

Single leaf roof access hatch for personnel access using fixed vertical ladder.

Jump to:
+44 (0)1827 718222 Website

Application

Roof access hatch, suitable for one-handed operation to open or close.

Description

Aluminium thermally broken ladder access hatch incorporating a double skin clear polycarbonate dome skylight, designed for one-handed operation to open or close.


Features and benefits:

  • Thermally broken cover and frame.
  • Engineered with compression spring operators.
  • Overlapping cover design.
  • Fully welded corners on cover and curb.
  • Constructed with corrosion resistant materials.
  • Heavy gauge construction, curb features the Bil-Clip® flashing system.

General information

Color

Clear

Finish

Mill

Powder-coated

Guidance for specification option:

Polyester powder-coated, RAL.

Material

Aluminium

Shape

Rectangle

Length

915 mm

Width

760 mm

Warranty description

Five year

Guidance for specification option:

Manufacturer's warranty.

Uniclass

Pr_30_59_36_74 Roof hatchesPrimary

CAWS

L20/60 Doors

L20/630 Hatches

Product range

Roof Hatches

Specification data - Roof hatches

Format

External.

Door

-

Orientation

Horizontal.

Material

Aluminum frame, double skin polycarbonate dome skylight.

Operation

-

Mode

Manual. Compression springs located within inner and outer tube.

Accessories

None.

Curb modifications.

Handrails.

Locks.

Motorized operation.

Special paint finish, colour ___.

Stainless steel hardware.

Ventilation louvres.

Dimensions

915 x 760 mm.

Insulation

75 mm polyisocyanurate to cover and curb.

Sustainability data

Material

Aluminium

Literature

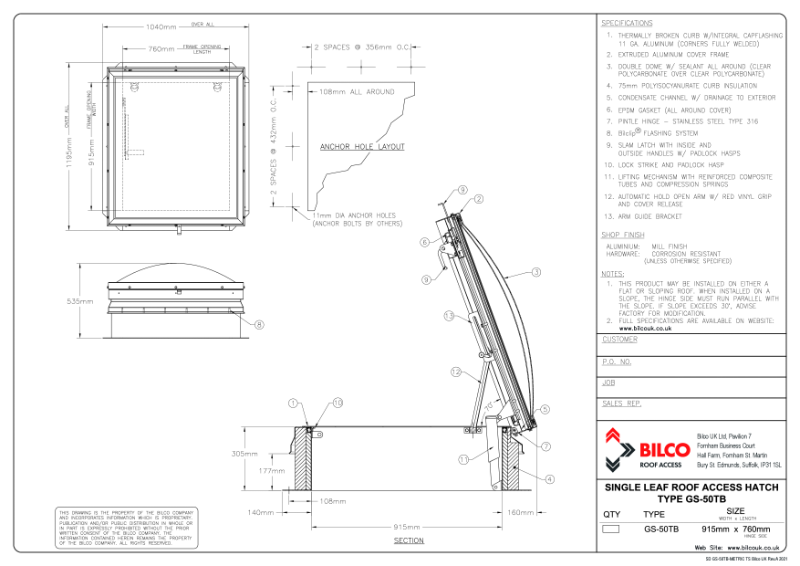

SUBMITTAL DRAWINGS  GS-50TB

SUBMITTAL DRAWINGS GS-50TB
