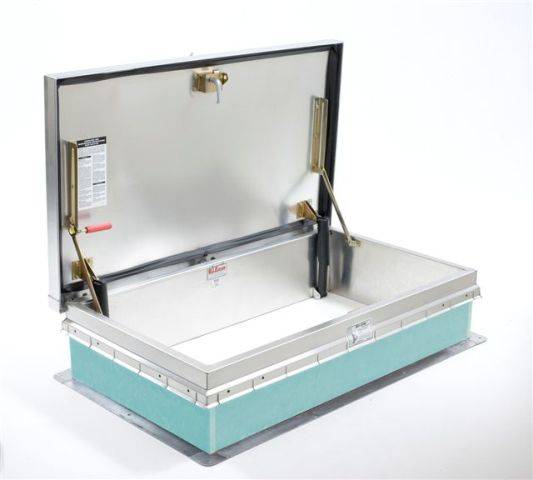

Bilco Roof Hatches - Companionway Access CS-50TB

Bilco UK

Single leaf roof access hatch for personnel access using companionway (ships stair) ladder.

Jump to:
+44 (0)1284 701696 Website

Application

For installations where frequent use may be expected.

Description

A ship stair access hatch which permits easier movement of maintenance personnel, tools and equipment.


Features and benefits:

  • Thermally broken cover and frame.
  • Engineered with compression spring operators, overlapping cover design.
  • Fully welded corners on cover and curb.
  • Constructed with corrosion resistant materials.
  • Heavy gauge construction.
  • Curb features the Bil-Clip® flashing system.

General information

Finish

Mill

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

1780 mm

Width

1040 mm

WarrantyDescription

Ten year

Manufacturer's warranty.

Uniclass

Pr_30_59_36_74 Roof hatchesPrimary

CAWS

L20/60 Doors

L20/630 Hatches

Product range

Roof Hatches

Specification data - Roof hatches

Format

External.

Door

-

Orientation

Horizontal.

Material

2.3 mm aluminium; 75 mm polyisocyanurate insulation.

Operation

-

Mode

Manual. Compression springs located within inner and outer tube.

Other requirement

None.

Curb modifications.

Handrails.

Locks.

Motorized operation.

Show more

Insulation

75 mm polyisocyanurate insulation to curb.

Dimensions

1780 x 1040 mm.

Overall.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

3

2.0
Download now from NBS National BIM Library

Literature

Bilco UK Roof Access Brochure

Bilco UK Roof Access Brochure
