Bi-Folding Speed Gates

Name: Bi-Folding Speed Gates
Brand: Jacksons Fencing
SKU: gK2ns4XcViWNQLwVBFXtXY

Verified by manufacturer 5 months ago

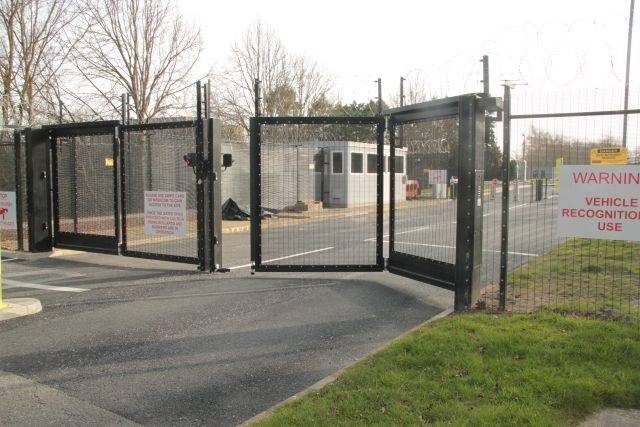

Bi-folding trackless speed gates.

Jump to:

Application

Data centres, utilities, high-security sites.

Bi-folding trackless speed gates for quick access to and from sites and increased security.

Features and benefits:

Very secure.
PAS 68 rated versions available.
Approx 1 m per second opening/ closing speed.
Hydraulic design: minimal moving parts, low maintenance.
Trackless design: no height restrictions and lower maintenance.
Heavy-duty hydraulic ram with PLC controlled slowdown in both opening and closing movement.
Operates seamlessly and virtually silently.
Suitable for use where the speed of opening and closing is essential for the security of the premises or where space may be at a minimum.
Vertical bar and mesh designs.
Single and double leaf.
25 year guarantee and 25 month automation guarantee available.

Color	Black Blue Brown Green Grey Red White Yellow Other Show more
Finish	Galvanized Powder-coated
Material	Steel
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year Guidance for specification option: Jacksons' Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details.

Uniclass	Pr_30_59_34_14 Carbon steel gatesPrimary
CAWS	Q40/570 Proprietary gates and posts Q40/45 Proprietary gates

Product range	Mesh Security Gates

Classification data
Dimensions	-
Span	- Manufacturer guidance 2500–12 000 mm; insert requirements.
Height	- Manufacturer guidance 2000–6000 mm; insert requirements.
Posts	Manufacturer's standard.
Gate leaves	Vertical bar. Guidance for specification option: Standard. Securi-Mesh®. Sheeted (one side only).
Hardware	-
Hinges	Manufacturer's standard.
Operating	- Manufacturer guidance Consult manufacturer for details of access control devices and insert requirements or enter 'Not required'.
Finish as delivered	-
Applied finish	Hot-dip-galvanized. Guidance for specification option: Standard. To BS EN 1461. Galvanized and powder-coated, black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: Special order, insert requirements (BS or RAL).
