Barbican® Extra Gates

Verified by manufacturer 1 day ago

Jacksons Fencing

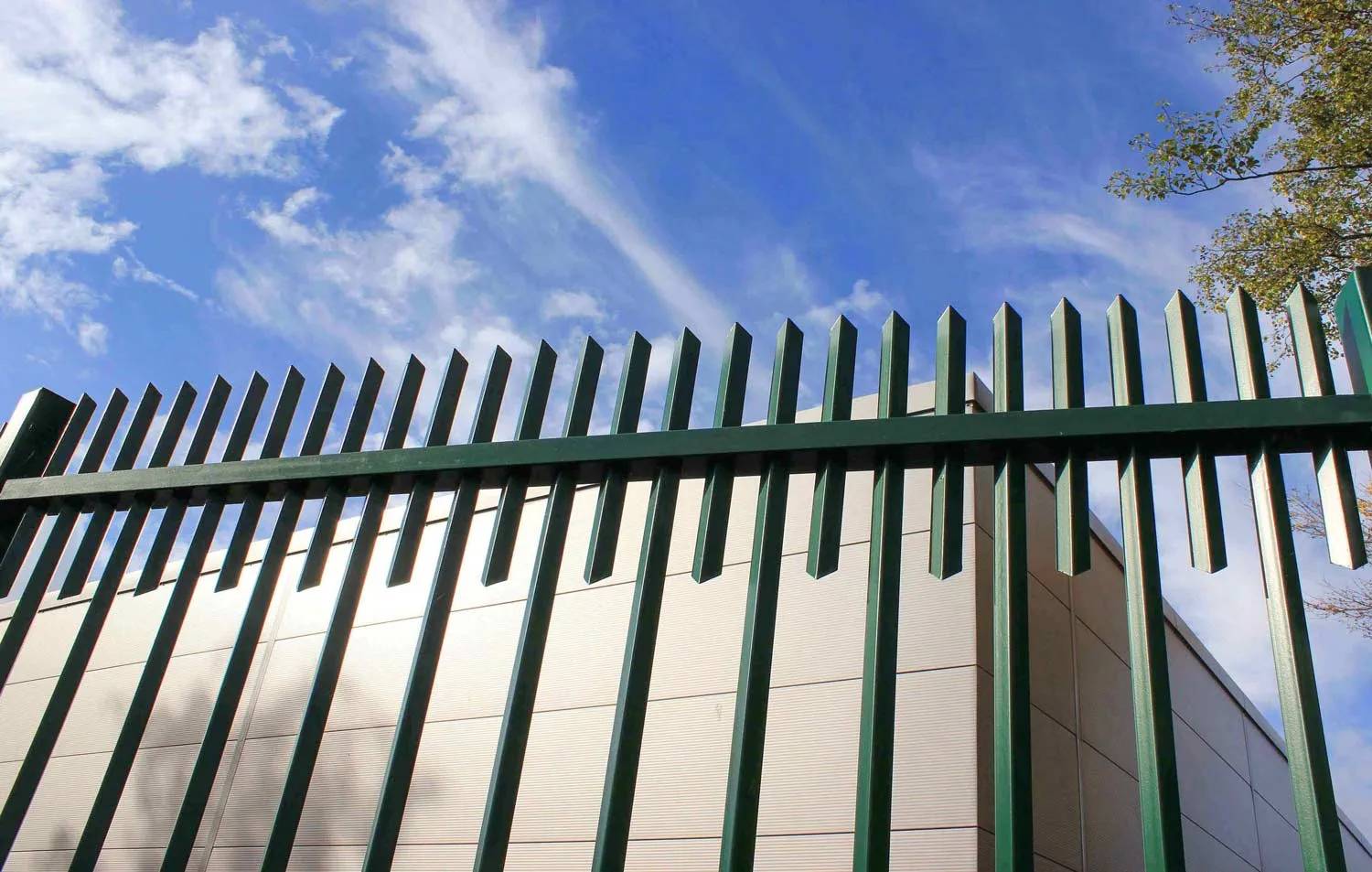

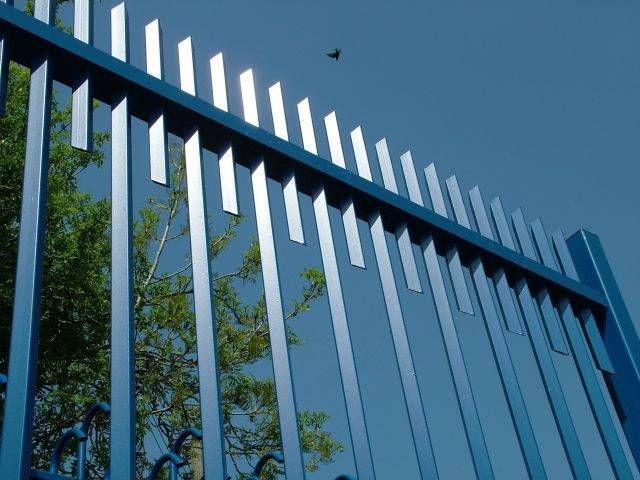

Vertical bar security gates with built-in anti-climb topping.

Jump to:
0800 408 4757 Website

Application

Transport hubs and railways; commercial premises.

Description

Square pale security gates with anti-climb topping. Additional pales through the top rail ensure that even the smallest hand or foot cannot gain purchase, making it virtually impossible to climb or scale.


Features and benefits:

  • Anti-climb design, matching Barbican® Extra fencing (specified separately).
  • Fully welded pale-through-rail construction.
  • Seamless, concealed rail-to-post fixing.
  • Gates are available in heights from 2.25 to 3.0 m to prevent accidental injury.
  • 25-year guarantee.

General information

Color

Black

Green

Other

Grey

Red

Show more

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

2250 mm

2500 mm

3000 mm

Warranty description

25 year

Guidance for specification option:

Manufacturer's Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details.

Uniclass

Pr_30_59_34_14 Carbon steel gatesPrimary

CAWS

Q40/40 Steel gates

Q40/560 Steel gates and posts

Q40/570 Proprietary gates and posts

Product range

Vertical Bar Gates

Specification data - Carbon steel gates

Classification data

Dimensions

-

Span

-

Manufacturer guidance

Insert requirements; up to 12 000 mm.

Height

2250 mm.
2500 mm.
3000 mm.

Posts

Rectangular hollow section (RHS) steel posts, set in concrete.
Rectangular hollow section (RHS) steel posts, base-plated.

Gate leaves

Single leaf.
Double leaf.

Hardware

-

Hinges

Tamper-proof.

Operating

Automatic, rear-mounted operator.
Automatic, sliding gate operator.
Automatic, underground operator.
Manual.

Finish as delivered

-

Applied finish

To match fencing.
Hot-dip-galvanized to BS EN 1461.

Guidance for specification option:

Standard.

Galvanized and powder-coated, Black RAL 9005.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, Green RAL 6005.

Guidance for specification option:

To BS EN 13438.

Galvanized and powder-coated, other.

Guidance for specification option:

Special order; insert requirements (BS or RAL).

Marine coat.

Guidance for specification option:

For installation near sea water.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Steel

Expected Life

25 year
