BEWI Jackodur Plus 300 Inverted Roof Insulation - Thermal Insulation
Verified by manufacturer 13 hours ago
80 mm thick
80 mm thick
BBA Agrément Certificate
Certificate type
Thermal insulation - Protected Membrane (Inverted) Roofs
Application
For flat inverted roofs.
Description

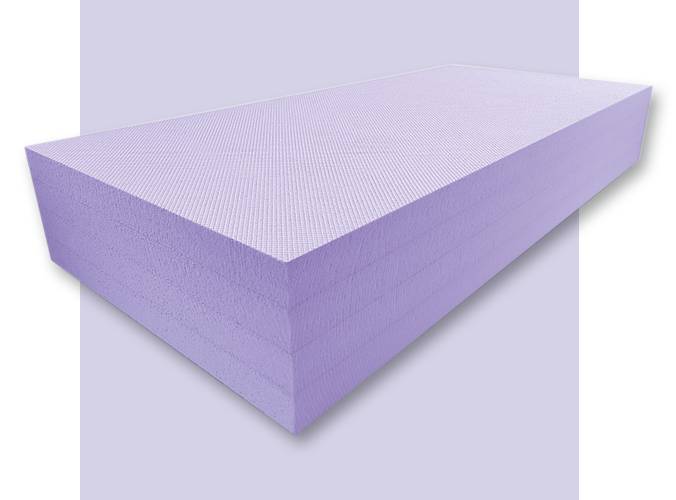

BEWI Jackodur PLUS 300 Inverted Roof Insulation is made of extruded polystyrene foam (XPS) delivering outstanding insulation characteristics with a declared thermal conductivity of 0.027 W/m·K. For inverted roof application the design or corrected thermal conductivity must be used. These are detailed in the product data sheet.
BEWI Jackodur PLUS 300 inverted roof insulation is manufactured in accordance with BS EN 13164 under a Quality Assurance System approved to ISO 9001 and Environmental Management System to ISO 14001.
Features and benefits:
- 100% recyclable.
- BBA Certified (21/5944 Product Sheet 3).
- Thicknesses 80–320 mm.
- Installed quickly and securely in a single layer.
- Suitable for zero fall roofs and roof terraces.
- Applicable to new and existing buildings.
- High compressive strength.
- Resistant to the effects of freeze/thaw.
General information
Color | Purple |
Material | Extruded polystyrene (XPS) |
Shape | Rectangle |
Length | 1250 mm |
Width | 600 mm |
Height | 80 mm 100 mm 120 mm 140 mm 160 mm Manufacturer guidanceThickness. |
Uniclass | |
CAWS | Q37/110 Intensive green roofs Q37/310 Inverted roof insulation E20/30 Underslab insulation J41/410 Expanded polystyrene (EPS) insulation J31/26 Thermal insulation J21/25 Warm deck roof insulation E20/200 Proprietary underslab insulation M21/20 External wall insulation systems J41/26 Thermal insulation J42/27 Thermal insulation M13/40 Floating construction M10/40 Floating construction J21/410 Expanded polystyrene insulation M21/210 Rendered external wall insulation systems J42/410 Expanded polystyrene (EPS) insulation M13/260 Floating construction M10/290 Floating construction J31/331 Expanded polystyrene (EPS) insulation |
Specification data - Extruded polystyrene (XPS) boards
Classification data | |
Standard | To BS EN 13164. |
Third-party certification | BBA Certified 21/5944 Product Sheet 3. |
Fire performance | To EN 13501-1, Euroclass E. |
Compressive strength (minimum) at 10% compression | 300 kPa. |
Thermal conductivity (maximum) | Declared: 0.027 W/m·K. Design: 0.029 W/m·K. |
Water permeability | Total immersion: 0.7%; Diffusion: Class WD(V)1-3. |
Water vapour permeability | 250–80 μ. |
Thickness | 80 mm. |
Face size (length x width) | 1250 x 600 mm. Guidance for specification option: Coverage: 0.75 m². |
Edges | Shiplap. |
U-value | 0.34 W/m²K. |
Thermal resistance | 2.75 m²K/W. |
Sustainability data
Material | Extruded polystyrene (XPS) |
Recyclability | 100% recyclable. |
