Betatrak 63A Underfloor Powertrack - 3.6 m
Verified by manufacturer 2 months ago
A 63A clip together busbar with five earthing versions available.
Application
Suitable for applications requiring either a small or a large number of tap-offs.
Description
Betatrak is a 63A clip together powertrack with five earthing versions available: Standard Earth, Clean Earth (C/E) low noise, Auxilliary Earth, Dual Circuit and 3-Phase.
Features and benefits:

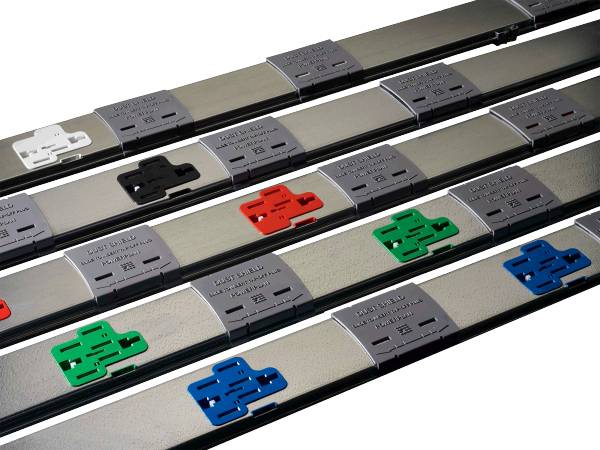

- Colour coded for easy recognition.
- Tap-off socket positions are provided at 300mm pitch (150mm or 600mm pitch tap-offs available on request).
- All integral connectors and tap-off plug sockets are colour coded to avoid any possible errors during assembly.
- For maximum safety each operates a shutter on insertion to ensure no accidental contact can be made.
General information
Color | Silver Grey |
Finish | Galvanized steel |
Shape | Rectangle |
Length | 3600 mm |
Width | 107 mm |
Height | 40 mm |
Warranty description | One year |
Uniclass | |
CAWS | V90/320 Distribution boards V90/320 Distribution boards |
Specification data - Power busbar trunking
Rated current | 63 A. |
Tap-off points | 300 mm pitch. |
Place of installation | Indoor; underfloor. |
Mounting orientation | Horizontal; vertical. |
Enclosure | |
Material | Galvanized steel |
Finish | Self-finished. |
Colour | Grey, metallic. |
Conductors | Copper. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 2 |
 IFC | IFC2X3 | 1 |
