Betatrak 63A Underfloor  Powertrack - 2.4 m

Verified by manufacturer 8 months ago

CMD Ltd

A 63A clip together busbar with five earthing versions available.

Jump to:
BIM object icon
+44 (0)1709 385171 Website

Application

Suitable for applications requiring either a small or a large number of tap-offs.

Description

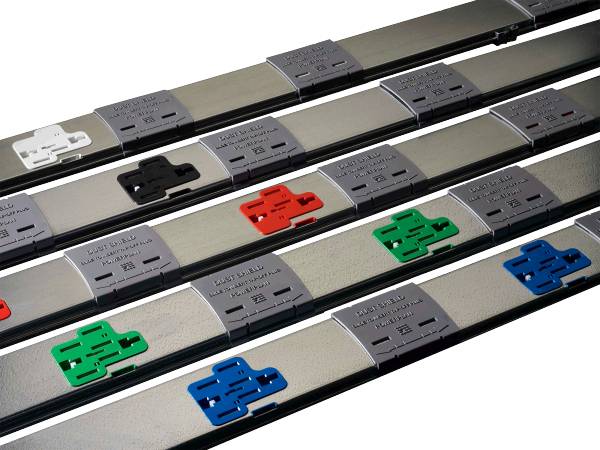

Betatrak is a 63A clip together powertrack with five earthing versions available: Standard Earth, Clean Earth (C/E) low noise, Auxilliary Earth, Dual Circuit and 3-Phase.


Features and benefits:

  • Colour coded for easy recognition.
  • Tap-off socket positions are provided at 300 mm pitch (150 or 600 mm pitch tap-offs available on request).
  • All integral connectors and tap-off plug sockets are colour coded to avoid any possible errors during assembly.
  • For maximum safety each operates a shutter on insertion to ensure no accidental contact can be made.

General information

Color

Grey

Silver

Finish

Galvanised

Material

Steel

Shape

Rectangle

Length

2400 mm

Width

107 mm

Height

40 mm

Warranty description

One year

Uniclass

Pr_60_70_48_66 Power busbar trunkingPrimary

CAWS

V90/320 Distribution boards

V90/320 Distribution boards

Specification data - Power busbar trunking

Rated current

63 A.

Tap-off points

300 mm pitch.

Place of installation

Indoor; underfloor.

Mounting orientation

Horizontal; vertical.

Enclosure

-

Material

Galvanized steel.

Finish

Self-finished.

Colour

Steel; metallic.

Conductors

Copper.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC

IFC2X3

1

Revit

Revit 2016

2
