Bespoke Glass Continuous Roofing

Verified by manufacturer 2 months ago

Whitesales Rooflights

Bespoke glazed rooflights, custom-designed and manufactured to exacting specifications and tolerances.

Jump to:
+44 (0)1483 917580 Website

Application

Commercial.

Description

Bespoke glazed rooflights, custom-designed and manufactured to exacting specifications and tolerances. The bespoke glass products include ridgelight, lantern, pyramid, north light, multipane and monopitch.


Features and benefits:

  • Bespoke shapes – in-house manufacturing to exact specifications.
  • Aesthetic design – custom designed extrusions.
  • Structural loading calculations service offering.
  • Glass design service – products tailored to suit g value, U value, LT (light transmission) performance requirements.
  • Self-supporting solutions – glazing bars up to 175 mm deep.
  • Atrium glazing incorporating CE certified EN12101-2, smoke ventilation.
  • Solutions available for 5–85° slope angles.
  • Finishes available in RAL/ BS powder coating colours, as well as coloured anodizing.

General information

Color

Grey

Guidance for specification option:

RAL 7016, light grey.

White

Guidance for specification option:

Upstand.

Finish

Powder-coated

Anodized

Manufacturer guidance

Bespoke requirements for rooflight available.

Material

PVC-U

Guidance for specification option:

Kerb.

Aluminium

Guidance for specification option:

Frame.

Glass

Guidance for specification option:

Unit.

Shape

Rectangle

Manufacturer guidance

Any required shape.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

Glazing and powder coating.

One year

Guidance for specification option:

Mechanical components.

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L10/45 Rooflights

L10/460 Rooflights

Specification data - Framed rooflights

Form

-

Manufacturer guidance

Any shape requirement.

Size

-

Manufacturer guidance

Bespoke – contact manufacturer.

Frame

-

Material

Aluminium.

Finish

-

Coating

Powder coating.

Anthracite.

Colour

Light grey, RAL 7016.

Guidance for specification option:

Anthracite finish.

RAL.

Guidance for specification option:

Powder coated to any RAL colour as special order.

Glazing or infill

-

Type

Glass unit.

Construction

Double glazed.

Guidance for specification option:

Standard.

Triple glazed.

Manufacturer guidance

Bespoke requirements for rooflight available.

Colour

-

Manufacturer guidance

Bespoke requirements for rooflight available.

Integral kerb

Not required.

Guidance for specification option:

Specified to fit to a site-formed builders kerb, subject to calculation.

PVC-U, 150 mm, white.

PVC-U, 300 mm, white.

PVC-U, 350 mm, white.

Third party certification:

CWCT TN66/ 67 Class 1 as standard.

Manufacturer guidance

Full technical details and specification information can be found on the data sheet.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

30%

Case studies

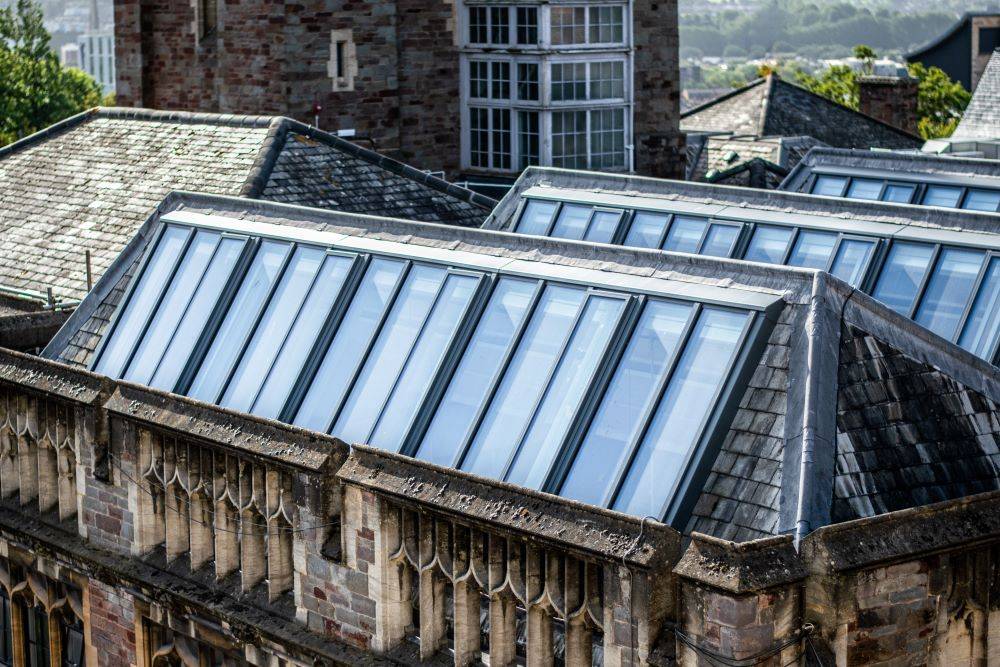

The Fry Building, University of Bristol
