BEH600V - PSA Heavy Grade SD Vinyl Edge Banded Panel - Raised Access Floor Panel
Verified by manufacturer 12 days ago
FSC
Certificate type
Raised Access Floor Panel, Heavy Grade, gravity-laid, steel-encapsulated panel, with vinyl covering and edge banding.
Application
Internal, Commercial, Office, access floor panel.
Description
Access Floor Panel. Heavy Grade, gravity-laid panel, consisting of a high-grade, FSC®-certified, 38 mm thick, high-density particle board core in a sandwich construction with a steel top and bottom sheet, covered with standard static dissipative Gerflor Mipolam EL7 Robust Vinyl or other approved covering. A full-depth acrylonitrile butadiene styrene (ABS) edge band is then applied, creating a fully encapsulated 600 mm² panel.
The panel is fully tested by an independent, UKAS-accredited laboratory to the PSA MOB PF2 PS/SPU March 1992 Heavy Grade specification, and is certified as being fully compliant.
Features and benefits:
- FSC® certified.
- Designed to be loose-laid with complete electrical continuity.
- High resistance to damage.
- Can be perforated for airflow.
- Manufactured in the UK.
General information
Color | Grey Other Guidance for specification option: Customer specified vinyl finish. |
Finish | Galvanized |
Material | Steel Acrylonitrile butadiene styrene (ABS) Particleboard Vinyl |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | 42 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Raised access floor K41/315 Floor panels K41/315 Floor panels |
Specification data - Raised access floor panels with finish
Casing | |
Material | Steel. |
Factory finishes | Galvanized. |
Core | HD particleboard. |
Panel size | 600 x 600 x 42 mm.Manufacturer guidanceWidth x length x height. |
Dimensional deviations | To MOB PF2 PS/SPU.Guidance for specification option: Heavy grade. |
Weight (maximum) | 45 kg/m². |
Panel fixing | Gravity laid. |
Integral finish | |
Material | Gerflor mipolam EL7 robust vinyl.Guidance for specification option: Standard. Special order.Guidance for specification option: Insert requirement. |
Fixing | Factory-bonded. |
Edges | Full-depth acrylonitrile butadiene styrene (ABS) edge band. |
Colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Perforations | Not required. Required. Guidance for specification option: Insert requirements. |
Loading | Point load: 4.5 kN (25 x 25 mm); Working load safety factor: 3x; Uniform distributed load: >12 kN/m². |
SurfaceSpreadOfFlame | Class 0. |
Sustainability data
Country of material origin | Germany Guidance for specification option: particleboard core Manufacturer guidanceFor Steel or Vinyl - see manufacturer |
Country of product manufacture | United Kingdom |
Material | Steel Acrylonitrile butadiene styrene (ABS) Particleboard Vinyl |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 15.1 kg CO₂ eq/kg Self declared |
Recyclability | Manufacturer guidanceWood Steel and Vinyl to be separated prior to recycling |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
FSC
FSC® Certificate
Literature

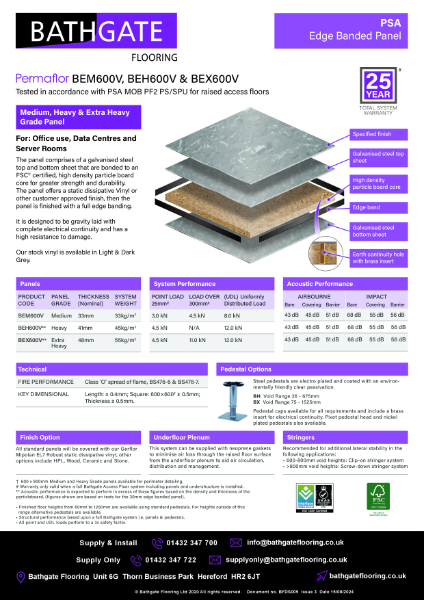

BEM600V, BEH600V & BEX600V
