BE6V - BSEN Class 6 SD Vinyl Edge Banded Panel - Raised Access Flooring Panel
Verified by manufacturer 13 days ago
FSC
Certificate type

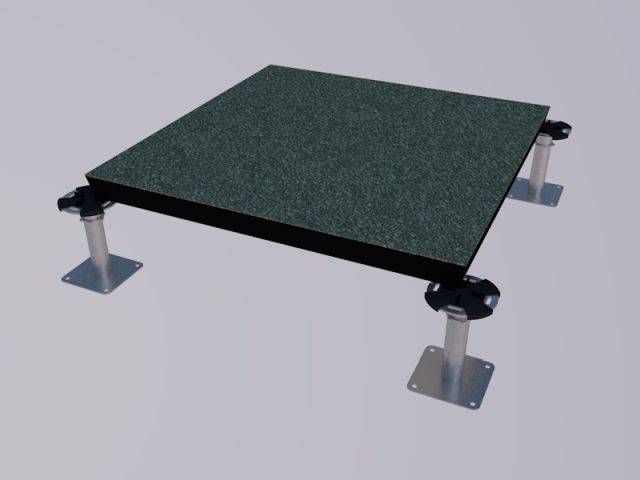

Raised access, gravity-laid, steel-encapsulated flooring panel with vinyl covering and edge banding.
Application
Indoor, Commercial, Office. Raised Access Flooring panels with vinyl finish.
Description
Raised Access Flooring. Gravity-laid panel, consisting of a high-grade, FSC® certified, 38 mm thick, high-density particle board core in a sandwich construction with a steel top and bottom sheet, covered with standard static dissipative Gerflor Mipolam EL7 Robust Vinyl or other approved covering. A full-depth acrylonitrile butadiene styrene (ABS) edge band is applied, creating a fully encapsulated 600 mm² panel.
The panel has been tested to the BS EN 12825:2001 6/A/3/2 specification and is fully compliant.
Features and benefits:
- FSC® certified.
- Steel encapsulated.
- Designed to be loose-laid with complete electrical continuity.
- High resistance to damage.
- Can be perforated for airflow.
- Manufactured in the UK.
General information
Color | Other Manufacturer guidancegrey or customer approved alternative |
Finish | Other Guidance for specification option: Vinyl finish. |
Material | Steel Guidance for specification option: Top lid and bottom tray. Acrylonitrile butadiene styrene (ABS) Particleboard Vinyl |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | 42 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Raised access floor K41/315 Floor panels K41/315 Floor panels |
Specification data - Raised access floor panels with finish
Casing | |
Material | Steel. |
Factory finishes | Galvanized. |
Core | HD particleboard. |
Panel size | 600 x 600 x 42 mm.Manufacturer guidanceWidth x length x height. |
Dimensional deviations | To BS EN 12825 Class 6.Guidance for specification option: 6/A/3/2. |
Weight (maximum) | 44 kg/m². |
Panel fixing | Gravity laid. |
Integral finish | |
Material | Gerflor mipolam EL7 robust vinyl.Guidance for specification option: Standard. Special order.Guidance for specification option: Insert requirement. |
Fixing | Factory-bonded. |
Edges | Full-depth acrylonitrile butadiene styrene (ABS) edge band. |
Colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Perforations | Not required. Required. Guidance for specification option: Insert requirements. |
Loading | Working load safety factor: 3 x; Uniform distributed load: >12 kN/m². |
SurfaceSpreadOfFlame | Class 0. |
Sustainability data
Country of material origin | Germany Guidance for specification option: particleboard Manufacturer guidanceSee manufacturer for steel and vinyl |
Country of product manufacture | United Kingdom |
Recyclability | 100 Guidance for specification option: nominal loss of glue Manufacturer guidancesteel, board and vinyl to be separated for recycling. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 79.95 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
FSC
FSC® Certificate
Literature

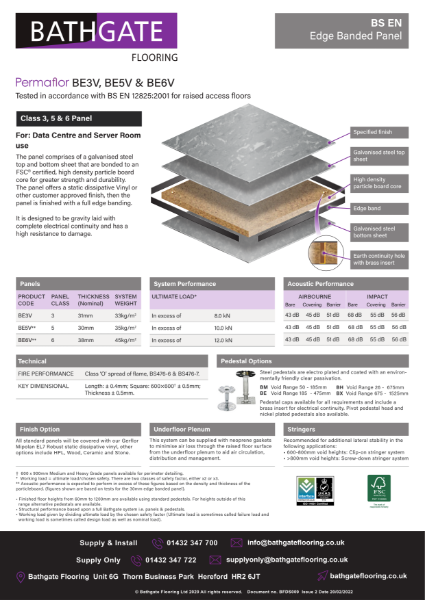

BE3V, BE5V & BE6V Datasheet
