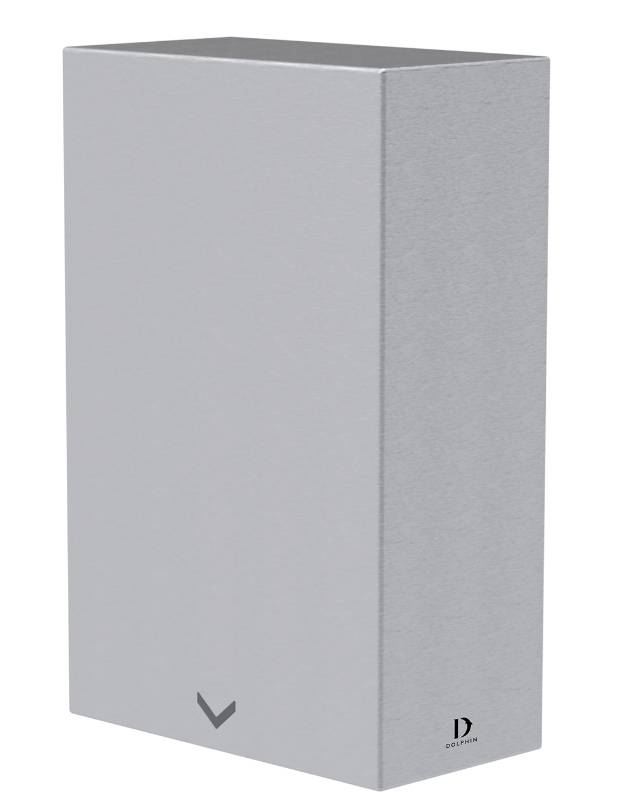

BC2009 Dolphin Velocity High Speed Hand Dryer with HEPA Filter
Verified by manufacturer 6 months ago
Satin
Satin
High speed stainless steel hand dryer with H12 HEPA filter and adjustable speed and sound control.
Application
Suitable for public and commercial washrooms.
Description
High speed hand dryer with HEPA filter.
Features and benefits:
- Satin stainless steel cover with electro-galvanized commercial steel for vandal resistance.
- Reduces CO₂ emissions by drying hands in 10-12 seconds.
- Adjustable speed and sound control.
- On/ off heater switch.
- Filters 99.5% of particles sized 0.3 µm (most bacteria is 0.5-5 µm in size).
- Drying efficiency is optimised by a blue LED light indicator.
- Three year limited warranty.
- UL/cUL, CE, GS, RoHS and CB certification.
General information
Color | Silver Black Bronze Copper Other |
Finish | Powder-coated Satin PVD |
Material | Stainless steel Guidance for specification option: Cover. |
Shape | Rectangle |
Width | 191.4 mm |
Height | 295.4 mm |
Warranty description | Three year |
Uniclass | |
CAWS | V90/590 Equipment N13/64 Hand dryers N13/472 Hand dryers |
SKU Code | BC2009 |
Specification data - Hand dryers
Classification data | |
Form | High-velocity air through HEPA filter. |
Operation | Automatic. |
Timer | Fixed. Guidance for specification option: Cut-off time 60 seconds. |
Electrical supply | |
Power rating | 500-1000 W. Guidance for specification option: Stand-by power <0.5 W (motor 250/500 W; heater 250-500 W). |
Body | |
Material | Stainless steel cover with electro-galvanized steel backplate. |
Finish | Satin. |
Colour | Grey/ silver. |
Ingress protection (minimum) | IP24. Guidance for specification option: Suitable for use in wet areas. |
Dimensions | 295.4 x 191.4 x 101 mm. Manufacturer guidanceHeight x width x projection. |
Noise level at 1 m (maximum) | 76.6 dB(A). |
Features | Hands only. |
Volume | 80 m³/h. Manufacturer guidanceAir volume. |
Weight | 3.3 kg. |
Air speed | 342-414 km/h. |
Motor | 29000 rpm. |
Drying time | 10-12 seconds. Manufacturer guidanceDrying time with heater on and full speed. |
LED lights | Blue LED light indicator. Guidance for specification option: Optimises drying efficiency. |
Filter | Carbon filter with stainless steel holder. |
Certification | UL/cUL; CE; GS; RoHS; CB. |
Sustainability data
Material | Stainless steel Guidance for specification option: Cover. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
